RocketMQ作为阿里开源的分布式消息中间件，凭借高吞吐、低延迟、高可用的特性成为微服务架构的核心组件。本文将从源码层面拆解Broker、Consumer、Producer的核心机制，结合实战案例揭示底层原理，让你不仅知其然更知其所以然。

一、RocketMQ核心架构总览

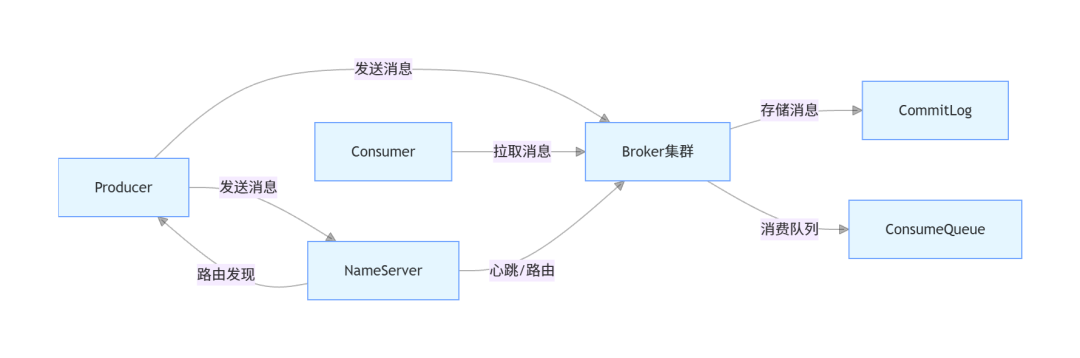

先通过架构图建立整体认知，后续源码分析将围绕这些核心组件展开：

核心组件职责

NameServer：轻量级注册中心，管理Broker路由信息，支持动态扩缩容
Broker：核心消息存储节点，处理消息存储、投递、过滤等核心逻辑
Producer：消息生产者，支持同步/异步/单向发送模式
Consumer：消息消费者，支持推/拉模式，集群/广播消费

二、Producer源码深度剖析

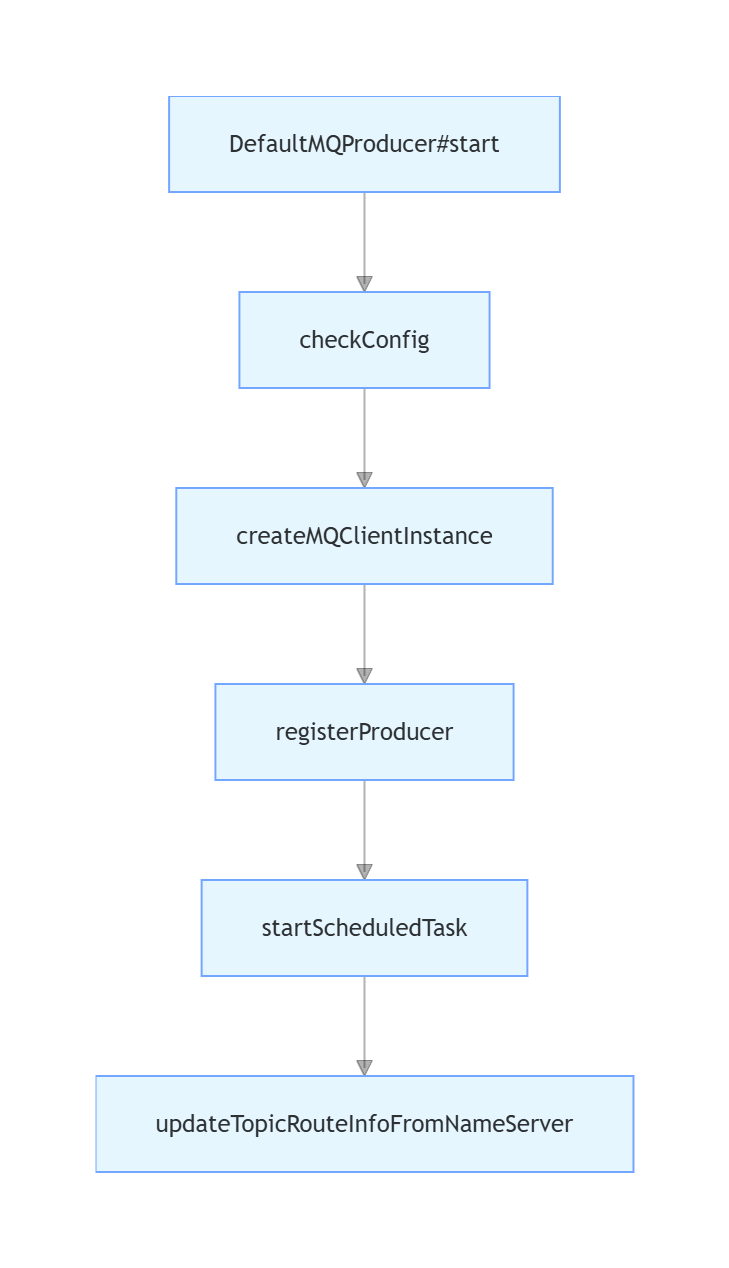

2.1 Producer启动流程

核心代码解析：

package com.jam.demo.producer;

import lombok.extern.slf4j.Slf4j;
import org.apache.rocketmq.client.exception.MQClientException;
import org.apache.rocketmq.client.producer.DefaultMQProducer;
import org.apache.rocketmq.common.MixAll;
import org.springframework.util.StringUtils;

/**
 * Producer启动核心逻辑
 * @author ken
 */
@Slf4j
publicclass ProducerStartupAnalysis {

    public DefaultMQProducer createProducer(String groupName) throws MQClientException {
        // 1. 参数校验
        if (!StringUtils.hasText(groupName)) {
            thrownew MQClientException("Producer group name is null", null);
        }

        DefaultMQProducer producer = new DefaultMQProducer(groupName);

        // 2. 创建MQClientInstance（核心客户端实例）
        producer.start();

        // 3. 定时任务：从NameServer更新路由信息（默认30s一次）
        // DefaultMQProducerImpl#startScheduledTask

        return producer;
    }
}

2.2 消息发送核心流程

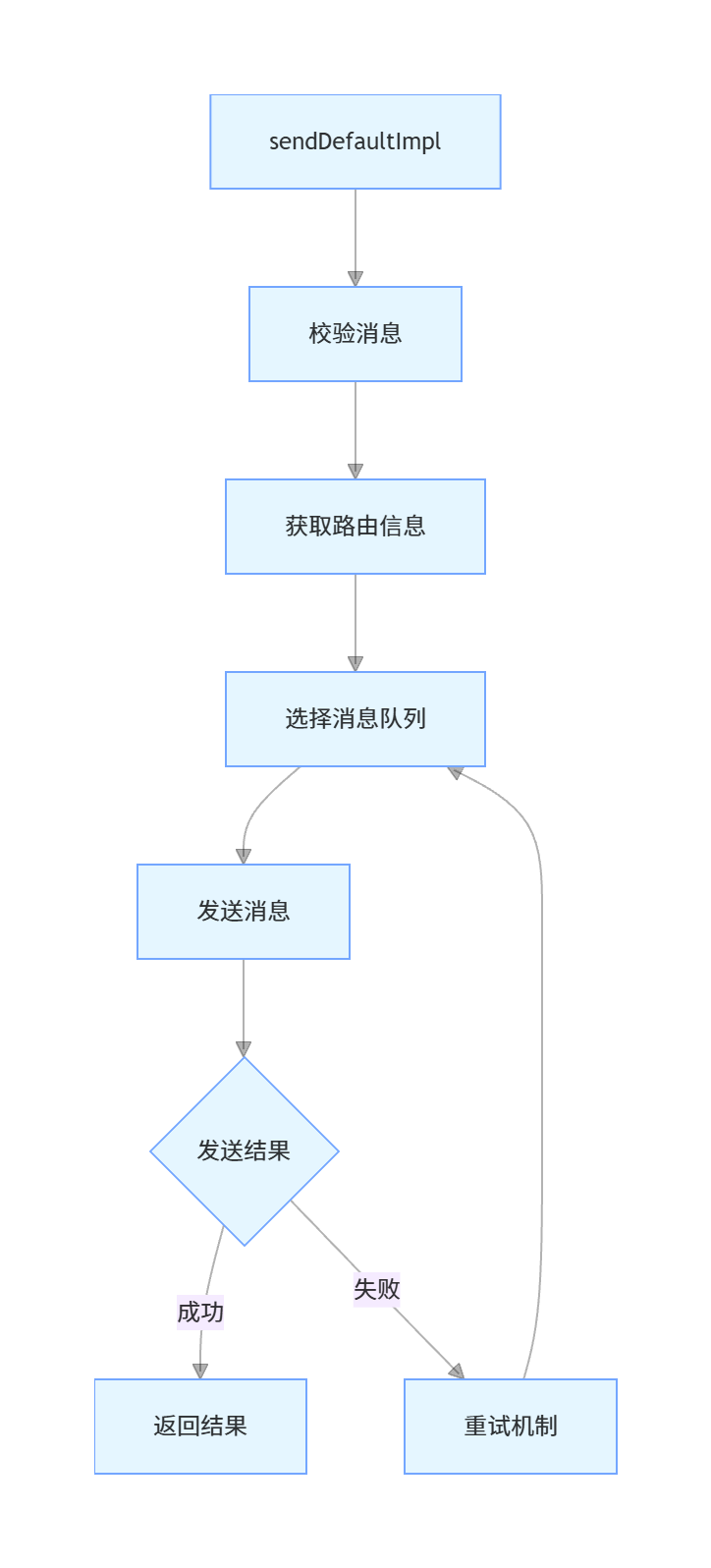

Producer发送消息的核心入口是DefaultMQProducerImpl#sendDefaultImpl，完整流程：

2.2.1 消息发送核心代码

package com.jam.demo.producer;

import lombok.extern.slf4j.Slf4j;
import org.apache.rocketmq.client.exception.MQBrokerException;
import org.apache.rocketmq.client.exception.MQClientException;
import org.apache.rocketmq.client.producer.DefaultMQProducer;
import org.apache.rocketmq.client.producer.SendResult;
import org.apache.rocketmq.common.message.Message;
import org.apache.rocketmq.remoting.exception.RemotingException;
import org.springframework.util.ObjectUtils;

import java.util.concurrent.TimeUnit;

/**
 * 消息发送核心实现
 * @author ken
 */
@Slf4j
publicclass MessageSendAnalysis {

    privatefinal DefaultMQProducer producer;

    public MessageSendAnalysis(DefaultMQProducer producer) {
        this.producer = producer;
    }

    /**
     * 同步发送消息核心逻辑
     * @param message 消息体
     * @return 发送结果
     * @throws MQClientException 客户端异常
     * @throws RemotingException 远程通信异常
     * @throws MQBrokerException Broker异常
     * @throws InterruptedException 中断异常
     */
    public SendResult sendMessage(Message message)
            throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
        // 1. 消息校验
        validateMessage(message);

        // 2. 发送消息（核心方法）
        SendResult sendResult = producer.send(message);

        // 3. 处理发送结果
        handleSendResult(sendResult, message);

        return sendResult;
    }

    /**
     * 消息参数校验
     */
    private void validateMessage(Message message) throws MQClientException {
        if (ObjectUtils.isEmpty(message)) {
            thrownew MQClientException("Message is null", null);
        }
        if (!org.springframework.util.StringUtils.hasText(message.getTopic())) {
            thrownew MQClientException("Message topic is null", null);
        }
        if (ObjectUtils.isEmpty(message.getBody())) {
            thrownew MQClientException("Message body is null", null);
        }
    }

    /**
     * 处理发送结果
     */
    private void handleSendResult(SendResult sendResult, Message message) {
        if (sendResult != null) {
            switch (sendResult.getSendStatus()) {
                case SEND_OK:
                    log.info("消息发送成功，topic={}, msgId={}", message.getTopic(), sendResult.getMsgId());
                    break;
                default:
                    log.warn("消息发送异常，status={}, msgId={}", sendResult.getSendStatus(), sendResult.getMsgId());
            }
        }
    }

    // 测试代码
    public static void main(String[] args) throws Exception {
        DefaultMQProducer producer = new DefaultMQProducer("producer_demo_group");
        producer.setNamesrvAddr("localhost:9876");
        producer.start();

        MessageSendAnalysis analysis = new MessageSendAnalysis(producer);
        Message message = new Message("demo_topic", "demo_tag", "Hello RocketMQ".getBytes());

        SendResult result = analysis.sendMessage(message);
        log.info("发送结果：{}", result);

        TimeUnit.SECONDS.sleep(1);
        producer.shutdown();
    }
}

2.2.2 消息队列选择策略

RocketMQ提供多种队列选择策略，默认实现是AllocateMessageQueueAveragely：

package com.jam.demo.producer;

import org.apache.rocketmq.client.latency.LatencyFaultTolerance;
import org.apache.rocketmq.client.latency.LatencyFaultToleranceImpl;
import org.apache.rocketmq.client.producer.MessageQueueSelector;
import org.apache.rocketmq.common.message.Message;
import org.apache.rocketmq.common.message.MessageQueue;

import java.util.List;
import java.util.concurrent.ThreadLocalRandom;

/**
 * 队列选择策略实现
 * @author ken
 */
publicclass QueueSelectorAnalysis {

    privatefinal LatencyFaultTolerance<String> latencyFaultTolerance = new LatencyFaultToleranceImpl();

    /**
     * 默认队列选择策略：轮询+故障延迟规避
     */
    public MessageQueue selectQueue(List<MessageQueue> mqs, Message msg, Object arg) {
        if (mqs == null || mqs.isEmpty()) {
            returnnull;
        }

        // 如果指定了队列参数，直接使用
        if (arg != null) {
            int index = Integer.parseInt(arg.toString());
            return mqs.get(index % mqs.size());
        }

        // 故障延迟规避 + 轮询选择
        for (int i = 0; i < mqs.size(); i++) {
            int index = ThreadLocalRandom.current().nextInt(mqs.size());
            MessageQueue mq = mqs.get(index);
            if (latencyFaultTolerance.isAvailable(mq.getBrokerName())) {
                return mq;
            }
        }

        // 如果所有队列都不可用，返回第一个队列
        return mqs.get(0);
    }
}

2.3 消息发送重试机制

Producer内置完善的重试机制，核心参数：

retryTimesWhenSendFailed：同步发送重试次数（默认2次）
retryTimesWhenSendAsyncFailed：异步发送重试次数（默认2次）
retryAnotherBrokerWhenNotStoreOK：是否重试其他Broker（默认false）

核心实现：

package com.jam.demo.producer;

import lombok.extern.slf4j.Slf4j;
import org.apache.rocketmq.client.producer.DefaultMQProducer;
import org.apache.rocketmq.common.message.Message;
import org.apache.rocketmq.common.message.MessageQueue;

import java.util.List;

/**
 * 消息发送重试机制
 * @author ken
 */
@Slf4j
publicclass RetryMechanismAnalysis {

    privatefinal DefaultMQProducer producer;
    privateint retryTimes = 2; // 默认重试2次

    public RetryMechanismAnalysis(DefaultMQProducer producer) {
        this.producer = producer;
        this.retryTimes = producer.getRetryTimesWhenSendFailed();
    }

    /**
     * 带重试的消息发送
     */
    public void sendWithRetry(Message message, List<MessageQueue> mqs) {
        for (int i = 0; i <= retryTimes; i++) {
            MessageQueue mq = selectQueue(mqs);
            try {
                // 发送消息
                producer.send(message, mq);
                log.info("消息发送成功，重试次数={}", i);
                return;
            } catch (Exception e) {
                log.error("消息发送失败，重试次数={}", i, e);

                // 如果是最后一次重试，抛出异常
                if (i == retryTimes) {
                    thrownew RuntimeException("消息发送最终失败", e);
                }

                // 延迟一段时间后重试
                try {
                    Thread.sleep(100 * (i + 1));
                } catch (InterruptedException ie) {
                    Thread.currentThread().interrupt();
                }
            }
        }
    }

    private MessageQueue selectQueue(List<MessageQueue> mqs) {
        return mqs.get((int) (System.currentTimeMillis() % mqs.size()));
    }
}

三、Broker源码深度剖析

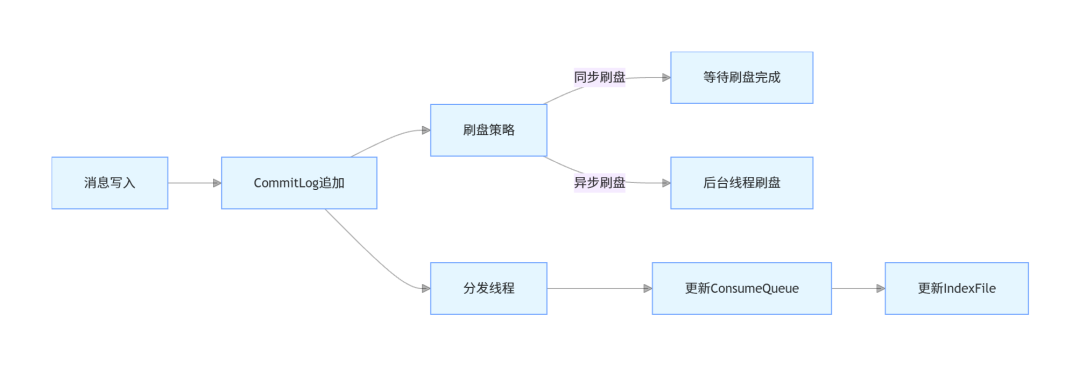

3.1 Broker核心存储机制

Broker采用混合存储架构，核心存储文件：

CommitLog：消息主体存储文件，所有Topic的消息顺序写入
ConsumeQueue：消费队列，存储消息在CommitLog的偏移量索引
IndexFile：消息索引文件，支持按Key查询消息

3.1.1 CommitLog写入核心代码

package com.jam.demo.broker;

import lombok.extern.slf4j.Slf4j;
import org.apache.rocketmq.store.CommitLog;
import org.apache.rocketmq.store.DefaultMessageStore;
import org.apache.rocketmq.store.MessageExtBrokerInner;
import org.apache.rocketmq.store.config.MessageStoreConfig;

/**
 * CommitLog写入机制
 * @author ken
 */
@Slf4j
publicclass CommitLogAnalysis {

    privatefinal CommitLog commitLog;

    public CommitLogAnalysis(DefaultMessageStore messageStore) {
        this.commitLog = messageStore.getCommitLog();
    }

    /**
     * 消息存储核心流程
     */
    public boolean putMessage(MessageExtBrokerInner msg) {
        // 1. 消息校验
        if (msg == null || msg.getBody() == null) {
            log.error("消息为空，无法存储");
            returnfalse;
        }

        // 2. 追加到CommitLog
        // CommitLog#putMessage核心逻辑：
        // - 获取当前MappedFile
        // - 计算消息长度
        // - 检查是否有足够空间
        // - 写入消息
        // - 更新偏移量

        // 3. 刷盘处理
        handleFlush(msg);

        // 4. 主从复制
        handleReplica(msg);

        returntrue;
    }

    /**
     * 刷盘策略处理
     */
    private void handleFlush(MessageExtBrokerInner msg) {
        MessageStoreConfig config = commitLog.getDefaultMessageStore().getMessageStoreConfig();

        if (config.isFlushDiskTypeSync()) {
            // 同步刷盘：等待刷盘完成
            commitLog.flush(0);
        } else {
            // 异步刷盘：由后台线程处理
            // FlushRealTimeService线程默认每隔500ms刷盘一次
        }
    }

    /**
     * 主从复制处理
     */
    private void handleReplica(MessageExtBrokerInner msg) {
        // 根据同步/异步复制策略处理
        // HAService负责主从复制
    }
}

3.1.2 ConsumeQueue构建机制

ConsumeQueue是消息的逻辑队列，每个Topic下的每个Queue对应一个ConsumeQueue文件：

package com.jam.demo.broker;

import lombok.extern.slf4j.Slf4j;
import org.apache.rocketmq.store.ConsumeQueue;
import org.apache.rocketmq.store.DefaultMessageStore;
import org.apache.rocketmq.store.SelectMappedBufferResult;

/**
 * ConsumeQueue构建与查询
 * @author ken
 */
@Slf4j
publicclass ConsumeQueueAnalysis {

    privatefinal DefaultMessageStore messageStore;

    public ConsumeQueueAnalysis(DefaultMessageStore messageStore) {
        this.messageStore = messageStore;
    }

    /**
     * 获取消息队列的索引信息
     */
    public SelectMappedBufferResult getIndexInfo(String topic, int queueId, long offset) {
        // 1. 获取ConsumeQueue实例
        ConsumeQueue consumeQueue = messageStore.findConsumeQueue(topic, queueId);
        if (consumeQueue == null) {
            log.error("ConsumeQueue不存在，topic={}, queueId={}", topic, queueId);
            returnnull;
        }

        // 2. 查询指定偏移量的索引信息
        // 每个ConsumeQueue条目固定20字节：8字节CommitLog偏移量 + 4字节消息长度 + 8字节Tag哈希值
        return consumeQueue.getIndexBuffer(offset);
    }

    /**
     * 构建ConsumeQueue索引（由ReputMessageService线程处理）
     */
    public void buildIndex(String topic, int queueId, long commitLogOffset, int msgSize, long tagsCode) {
        ConsumeQueue consumeQueue = messageStore.findConsumeQueue(topic, queueId);
        if (consumeQueue != null) {
            // 写入索引条目
            consumeQueue.putPositionInfo(commitLogOffset, msgSize, tagsCode);
        }
    }
}

3.2 Broker请求处理机制

Broker通过Netty处理客户端请求，核心请求处理器：

SendMessageProcessor：处理消息发送请求
PullMessageProcessor：处理消息拉取请求
QueryMessageProcessor：处理消息查询请求

package com.jam.demo.broker;

import io.netty.channel.ChannelHandlerContext;
import lombok.extern.slf4j.Slf4j;
import org.apache.rocketmq.common.protocol.RequestCode;
import org.apache.rocketmq.common.protocol.header.SendMessageRequestHeader;
import org.apache.rocketmq.remoting.protocol.RemotingCommand;
import org.apache.rocketmq.store.DefaultMessageStore;

/**
 * Broker请求处理器核心逻辑
 * @author ken
 */
@Slf4j
publicclass BrokerRequestProcessor {

    privatefinal DefaultMessageStore messageStore;

    public BrokerRequestProcessor(DefaultMessageStore messageStore) {
        this.messageStore = messageStore;
    }

    /**
     * 处理客户端请求
     */
    public RemotingCommand processRequest(ChannelHandlerContext ctx, RemotingCommand request) {
        switch (request.getCode()) {
            case RequestCode.SEND_MESSAGE:
                return handleSendMessage(ctx, request);
            case RequestCode.PULL_MESSAGE:
                return handlePullMessage(ctx, request);
            default:
                return RemotingCommand.createResponseCommand(null);
        }
    }

    /**
     * 处理消息发送请求
     */
    private RemotingCommand handleSendMessage(ChannelHandlerContext ctx, RemotingCommand request) {
        SendMessageRequestHeader header =
            (SendMessageRequestHeader) request.decodeCommandCustomHeader(SendMessageRequestHeader.class);

        log.info("接收消息发送请求，topic={}, queueId={}", header.getTopic(), header.getQueueId());

        // 1. 构建内部消息对象
        // 2. 存储消息到CommitLog
        // 3. 返回响应结果

        RemotingCommand response = RemotingCommand.createResponseCommand(null);
        response.setCode(0);
        response.setRemark(null);
        return response;
    }

    /**
     * 处理消息拉取请求
     */
    private RemotingCommand handlePullMessage(ChannelHandlerContext ctx, RemotingCommand request) {
        // 处理拉取请求逻辑
        return RemotingCommand.createResponseCommand(null);
    }
}

3.3 Broker刷盘与主从复制

3.3.1 刷盘策略实现

package com.jam.demo.broker;

import lombok.extern.slf4j.Slf4j;
import org.apache.rocketmq.store.CommitLog;
import org.apache.rocketmq.store.config.FlushDiskType;
import org.apache.rocketmq.store.config.MessageStoreConfig;

/**
 * 刷盘策略实现
 * @author ken
 */
@Slf4j
publicclass FlushStrategyAnalysis {

    privatefinal CommitLog commitLog;
    privatefinal MessageStoreConfig storeConfig;

    public FlushStrategyAnalysis(CommitLog commitLog) {
        this.commitLog = commitLog;
        this.storeConfig = commitLog.getDefaultMessageStore().getMessageStoreConfig();
    }

    /**
     * 同步刷盘实现
     */
    public void syncFlush(long offset) {
        // 等待刷盘完成
        commitLog.flush(offset);
        log.info("同步刷盘完成，偏移量={}", offset);
    }

    /**
     * 异步刷盘实现（后台线程）
     */
    publicclass AsyncFlushService extends Thread {

        privatevolatileboolean isRunning = true;

        @Override
        public void run() {
            log.info("异步刷盘服务启动");

            while (isRunning) {
                try {
                    // 默认500ms刷盘一次
                    Thread.sleep(storeConfig.getFlushIntervalCommitLog());

                    // 刷盘
                    commitLog.flush(0);
                } catch (InterruptedException e) {
                    log.warn("异步刷盘线程中断", e);
                }
            }

            log.info("异步刷盘服务停止");
        }

        public void shutdown() {
            isRunning = false;
            this.interrupt();
        }
    }
}

四、Consumer源码深度剖析

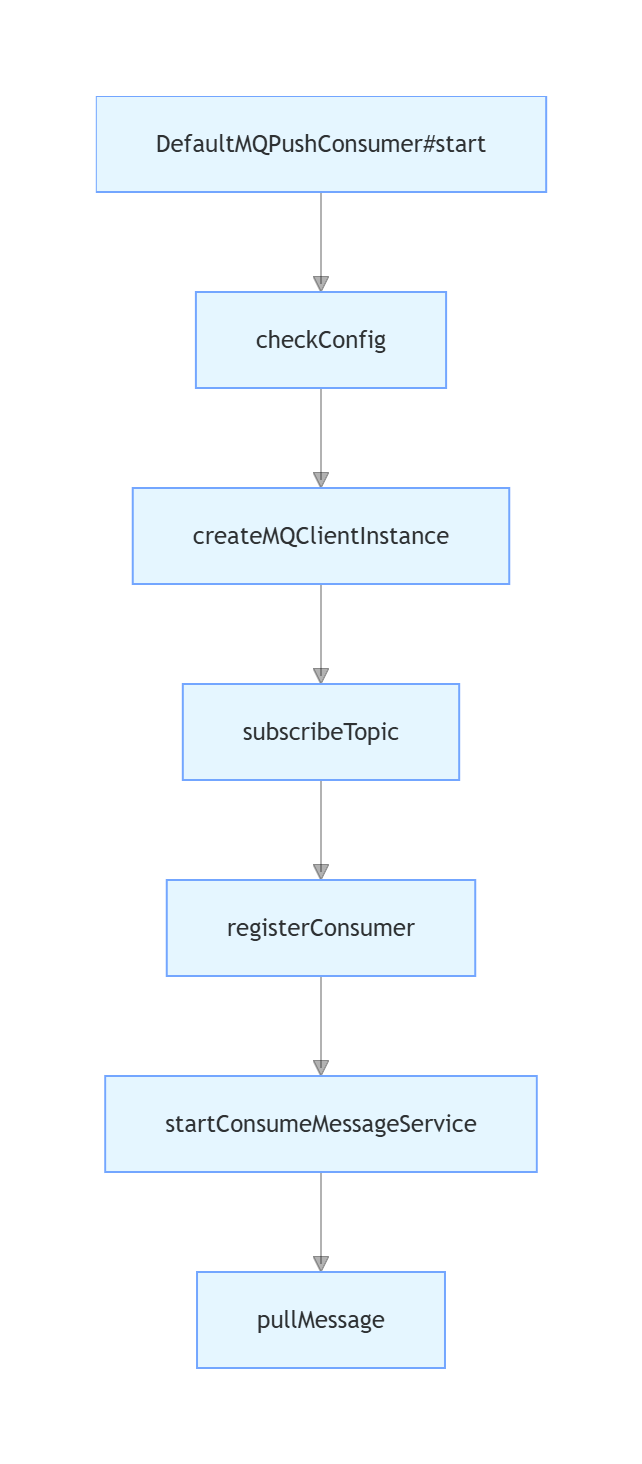

4.1 Consumer启动流程

4.2 消息消费模式

RocketMQ支持两种消费模式：

4.2.1 推模式（默认）

推模式本质是长轮询，核心实现DefaultMQPushConsumerImpl#pullMessage：

package com.jam.demo.consumer;

import lombok.extern.slf4j.Slf4j;
import org.apache.rocketmq.client.consumer.DefaultMQPushConsumer;
import org.apache.rocketmq.client.consumer.listener.ConsumeConcurrentlyContext;
import org.apache.rocketmq.client.consumer.listener.ConsumeConcurrentlyStatus;
import org.apache.rocketmq.client.consumer.listener.MessageListenerConcurrently;
import org.apache.rocketmq.common.message.MessageExt;
import org.springframework.util.CollectionUtils;

import java.util.List;

/**
 * 推模式消费实现
 * @author ken
 */
@Slf4j
publicclass PushConsumerAnalysis {

    public void startPushConsumer() throws Exception {
        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer("consumer_demo_group");
        consumer.setNamesrvAddr("localhost:9876");

        // 订阅Topic
        consumer.subscribe("demo_topic", "*");

        // 注册消息监听器
        consumer.registerMessageListener((MessageListenerConcurrently) (msgs, context) -> {
            if (CollectionUtils.isEmpty(msgs)) {
                return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
            }

            // 处理消息
            for (MessageExt msg : msgs) {
                log.info("消费消息：topic={}, msgId={}, body={}",
                    msg.getTopic(), msg.getMsgId(), new String(msg.getBody()));
            }

            return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
        });

        // 启动消费者
        consumer.start();
        log.info("推模式消费者启动成功");
    }

    public static void main(String[] args) throws Exception {
        PushConsumerAnalysis analysis = new PushConsumerAnalysis();
        analysis.startPushConsumer();

        // 保持进程运行
        Thread.currentThread().join();
    }
}

4.2.2 拉模式

拉模式由消费者主动控制拉取频率：

package com.jam.demo.consumer;

import lombok.extern.slf4j.Slf4j;
import org.apache.rocketmq.client.consumer.DefaultLitePullConsumer;
import org.apache.rocketmq.common.message.MessageExt;
import org.springframework.util.CollectionUtils;

import java.util.List;

/**
 * 拉模式消费实现
 * @author ken
 */
@Slf4j
publicclass PullConsumerAnalysis {

    public void startPullConsumer() throws Exception {
        DefaultLitePullConsumer consumer = new DefaultLitePullConsumer("pull_consumer_group");
        consumer.setNamesrvAddr("localhost:9876");

        // 订阅Topic
        consumer.subscribe("demo_topic", "*");

        // 启动消费者
        consumer.start();
        log.info("拉模式消费者启动成功");

        // 循环拉取消息
        while (true) {
            List<MessageExt> msgs = consumer.poll();

            if (!CollectionUtils.isEmpty(msgs)) {
                for (MessageExt msg : msgs) {
                    log.info("拉取消息：topic={}, msgId={}, body={}",
                        msg.getTopic(), msg.getMsgId(), new String(msg.getBody()));
                }

                // 提交偏移量
                consumer.commitSync();
            }

            // 控制拉取频率
            Thread.sleep(1000);
        }
    }

    public static void main(String[] args) throws Exception {
        PullConsumerAnalysis analysis = new PullConsumerAnalysis();
        analysis.startPullConsumer();
    }
}

4.3 消费偏移量管理

RocketMQ通过OffsetStore管理消费偏移量：

package com.jam.demo.consumer;

import lombok.extern.slf4j.Slf4j;
import org.apache.rocketmq.client.consumer.DefaultMQPushConsumer;
import org.apache.rocketmq.client.consumer.OffsetStore;
import org.apache.rocketmq.client.consumer.store.LocalFileOffsetStore;
import org.apache.rocketmq.client.consumer.store.RemoteBrokerOffsetStore;
import org.apache.rocketmq.common.message.MessageQueue;

import java.util.Map;

/**
 * 消费偏移量管理
 * @author ken
 */
@Slf4j
publicclass OffsetManagementAnalysis {

    privatefinal DefaultMQPushConsumer consumer;
    private OffsetStore offsetStore;

    public OffsetManagementAnalysis(DefaultMQPushConsumer consumer) {
        this.consumer = consumer;
        initOffsetStore();
    }

    /**
     * 初始化偏移量存储
     */
    private void initOffsetStore() {
        // 集群模式：偏移量存储在Broker
        // 广播模式：偏移量存储在本地
        if (consumer.getMessageModel().isBroadcast()) {
            offsetStore = new LocalFileOffsetStore(consumer.getDefaultMQPushConsumerImpl().getMQClientFactory(),
                                                  consumer.getConsumerGroup());
        } else {
            offsetStore = new RemoteBrokerOffsetStore(consumer.getDefaultMQPushConsumerImpl().getMQClientFactory(),
                                                    consumer.getConsumerGroup());
        }
    }

    /**
     * 更新偏移量
     */
    public void updateOffset(MessageQueue mq, long offset, boolean increaseOnly) {
        offsetStore.updateOffset(mq, offset, increaseOnly);
        log.info("更新偏移量：topic={}, queueId={}, offset={}", mq.getTopic(), mq.getQueueId(), offset);
    }

    /**
     * 持久化偏移量
     */
    public void persistOffset(MessageQueue mq) {
        offsetStore.persist(mq);
        log.info("持久化偏移量：topic={}, queueId={}", mq.getTopic(), mq.getQueueId());
    }

    /**
     * 批量持久化偏移量
     */
    public void persistAllOffsets() {
        offsetStore.persistAll();
        log.info("批量持久化所有偏移量");
    }

    /**
     * 查询偏移量
     */
    public long queryOffset(MessageQueue mq) {
        return offsetStore.readOffset(mq, org.apache.rocketmq.client.consumer.store.ReadOffsetType.MEMORY_FIRST_THEN_STORE);
    }
}

4.4 消息重试机制

消费失败时，RocketMQ会将消息发送到重试队列（%RETRY%+ConsumerGroup）：

package com.jam.demo.consumer;

import lombok.extern.slf4j.Slf4j;
import org.apache.rocketmq.client.consumer.DefaultMQPushConsumer;
import org.apache.rocketmq.client.consumer.listener.ConsumeConcurrentlyContext;
import org.apache.rocketmq.client.consumer.listener.ConsumeConcurrentlyStatus;
import org.apache.rocketmq.client.consumer.listener.MessageListenerConcurrently;
import org.apache.rocketmq.common.message.MessageExt;
import org.springframework.util.CollectionUtils;

import java.util.List;

/**
 * 消费重试机制
 * @author ken
 */
@Slf4j
publicclass ConsumeRetryAnalysis {

    public void startConsumerWithRetry() throws Exception {
        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer("consumer_retry_group");
        consumer.setNamesrvAddr("localhost:9876");

        // 设置最大重试次数（默认16次）
        consumer.setMaxReconsumeTimes(3);

        // 订阅主Topic和重试Topic
        consumer.subscribe("demo_topic", "*");

        consumer.registerMessageListener((MessageListenerConcurrently) (msgs, context) -> {
            if (CollectionUtils.isEmpty(msgs)) {
                return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
            }

            for (MessageExt msg : msgs) {
                try {
                    // 模拟消费失败
                    if (msg.getReconsumeTimes() < 2) {
                        log.info("模拟消费失败，重试次数={}", msg.getReconsumeTimes());
                        thrownew RuntimeException("消费失败，需要重试");
                    }

                    // 正常消费
                    log.info("消费成功：msgId={}, reconsumeTimes={}", msg.getMsgId(), msg.getReconsumeTimes());
                } catch (Exception e) {
                    log.error("消费异常", e);

                    // 判断是否达到最大重试次数
                    if (msg.getReconsumeTimes() >= consumer.getMaxReconsumeTimes()) {
                        log.error("达到最大重试次数，消息进入死信队列：msgId={}", msg.getMsgId());
                        // 可以手动发送到死信队列
                        return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
                    }

                    return ConsumeConcurrentlyStatus.RECONSUME_LATER;
                }
            }

            return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
        });

        consumer.start();
        log.info("带重试机制的消费者启动成功");
    }

    public static void main(String[] args) throws Exception {
        ConsumeRetryAnalysis analysis = new ConsumeRetryAnalysis();
        analysis.startConsumerWithRetry();

        Thread.currentThread().join();
    }
}

五、实战案例：RocketMQ核心功能应用

5.1 分布式事务消息

RocketMQ通过二阶段提交实现分布式事务消息：

package com.jam.demo.transaction;

import lombok.extern.slf4j.Slf4j;
import org.apache.rocketmq.client.producer.LocalTransactionState;
import org.apache.rocketmq.client.producer.TransactionListener;
import org.apache.rocketmq.client.producer.TransactionMQProducer;
import org.apache.rocketmq.common.message.Message;
import org.apache.rocketmq.common.message.MessageExt;
import org.springframework.util.StringUtils;

import java.util.concurrent.*;

/**
 * 分布式事务消息实现
 * @author ken
 */
@Slf4j
publicclass TransactionMessageDemo {

    public static void main(String[] args) throws Exception {
        // 创建事务生产者
        TransactionMQProducer producer = new TransactionMQProducer("transaction_producer_group");
        producer.setNamesrvAddr("localhost:9876");

        // 线程池用于执行本地事务
        ExecutorService executorService = new ThreadPoolExecutor(
            2, 5, 100, TimeUnit.SECONDS, new ArrayBlockingQueue<>(2000),
            r -> {
                Thread thread = new Thread(r);
                thread.setName("transaction-thread");
                return thread;
            });

        producer.setExecutorService(executorService);

        // 注册事务监听器
        producer.setTransactionListener(new TransactionListener() {

            /**
             * 执行本地事务
             */
            @Override
            public LocalTransactionState executeLocalTransaction(Message msg, Object arg) {
                String transactionId = msg.getKeys();
                log.info("执行本地事务，transactionId={}", transactionId);

                try {
                    // 执行业务逻辑：扣减库存、创建订单等
                    boolean success = executeBusinessLogic(transactionId);

                    if (success) {
                        log.info("本地事务执行成功，提交消息");
                        return LocalTransactionState.COMMIT_MESSAGE;
                    } else {
                        log.info("本地事务执行失败，回滚消息");
                        return LocalTransactionState.ROLLBACK_MESSAGE;
                    }
                } catch (Exception e) {
                    log.error("本地事务执行异常", e);
                    return LocalTransactionState.UNKNOW;
                }
            }

            /**
             * 事务回查
             */
            @Override
            public LocalTransactionState checkLocalTransaction(MessageExt msg) {
                String transactionId = msg.getKeys();
                log.info("事务回查，transactionId={}", transactionId);

                // 查询本地事务状态
                boolean isCommit = checkBusinessStatus(transactionId);

                if (isCommit) {
                    return LocalTransactionState.COMMIT_MESSAGE;
                } else {
                    return LocalTransactionState.ROLLBACK_MESSAGE;
                }
            }
        });

        producer.start();

        // 发送事务消息
        String transactionId = "tx_" + System.currentTimeMillis();
        Message message = new Message("transaction_topic", "tx_tag",
            transactionId, "订单创建请求".getBytes());

        producer.sendMessageInTransaction(message, null);

        log.info("事务消息发送成功，transactionId={}", transactionId);

        TimeUnit.SECONDS.sleep(10);
        producer.shutdown();
        executorService.shutdown();
    }

    /**
     * 执行业务逻辑
     */
    private static boolean executeBusinessLogic(String transactionId) {
        // 模拟业务逻辑执行
        return !transactionId.endsWith("0"); // 最后一位为0时模拟失败
    }

    /**
     * 检查业务状态
     */
    private static boolean checkBusinessStatus(String transactionId) {
        // 模拟查询数据库检查事务状态
        return StringUtils.hasText(transactionId);
    }
}

5.2 消息过滤机制

RocketMQ支持Tag过滤和SQL92过滤：

package com.jam.demo.filter;

import lombok.extern.slf4j.Slf4j;
import org.apache.rocketmq.client.consumer.DefaultMQPushConsumer;
import org.apache.rocketmq.client.consumer.MessageSelector;
import org.apache.rocketmq.client.consumer.listener.ConsumeConcurrentlyStatus;
import org.apache.rocketmq.common.message.MessageExt;

/**
 * 消息过滤实战
 * @author ken
 */
@Slf4j
publicclass MessageFilterDemo {

    public static void main(String[] args) throws Exception {
        // 1. Tag过滤
        DefaultMQPushConsumer tagConsumer = new DefaultMQPushConsumer("tag_filter_consumer");
        tagConsumer.setNamesrvAddr("localhost:9876");
        // 只消费tag1或tag2的消息
        tagConsumer.subscribe("filter_topic", "tag1 || tag2");
        tagConsumer.registerMessageListener((msgs, context) -> {
            for (MessageExt msg : msgs) {
                log.info("Tag过滤消费：tag={}, body={}", msg.getTags(), new String(msg.getBody()));
            }
            return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
        });
        tagConsumer.start();

        // 2. SQL92过滤
        DefaultMQPushConsumer sqlConsumer = new DefaultMQPushConsumer("sql_filter_consumer");
        sqlConsumer.setNamesrvAddr("localhost:9876");
        // 消费属性a>5且b='abc'的消息
        sqlConsumer.subscribe("filter_topic", MessageSelector.bySql("a > 5 AND b = 'abc'"));
        sqlConsumer.registerMessageListener((msgs, context) -> {
            for (MessageExt msg : msgs) {
                log.info("SQL过滤消费：a={}, b={}, body={}",
                    msg.getUserProperty("a"), msg.getUserProperty("b"), new String(msg.getBody()));
            }
            return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
        });
        sqlConsumer.start();

        log.info("过滤消费者启动成功");
    }
}

六、性能优化与最佳实践

6.1 Producer性能优化

package com.jam.demo.optimize;

import org.apache.rocketmq.client.producer.DefaultMQProducer;
import org.apache.rocketmq.client.producer.SendResult;
import org.apache.rocketmq.common.message.Message;

/**
 * Producer性能优化配置
 * @author ken
 */
publicclass ProducerOptimize {

    public DefaultMQProducer createOptimizedProducer() {
        DefaultMQProducer producer = new DefaultMQProducer("optimize_producer_group");

        // 批量发送（提高吞吐量）
        producer.setBatchSize(1000);
        producer.setCompressMsgBodyOverHowmuch(1024 * 4); // 4KB以上压缩

        // 异步发送（提高响应速度）
        producer.setAsyncSenderThreadPoolNums(8);

        // 超时配置
        producer.setSendMsgTimeout(3000);

        // 重试配置
        producer.setRetryTimesWhenSendFailed(2);
        producer.setRetryAnotherBrokerWhenNotStoreOK(true);

        // 消息最大长度（默认4MB）
        producer.setMaxMessageSize(1024 * 1024 * 4);

        return producer;
    }

    /**
     * 批量发送示例
     */
    public void batchSend(DefaultMQProducer producer) throws Exception {
        Message[] messages = new Message[10];
        for (int i = 0; i < 10; i++) {
            messages[i] = new Message("batch_topic", "batch_tag", ("Batch message " + i).getBytes());
        }

        SendResult result = producer.send(messages);
        System.out.println("批量发送结果：" + result);
    }
}

6.2 Broker性能优化

Broker优化核心配置：

# 存储路径配置
storePathRootDir=/data/rocketmq/store
storePathCommitLog=/data/rocketmq/store/commitlog
storePathConsumeQueue=/data/rocketmq/store/consumequeue

# 刷盘策略（生产环境建议异步刷盘）
flushDiskType=ASYNC_FLUSH

# 文件大小配置
mapedFileSizeCommitLog=1073741824  # 1GB
mapedFileSizeConsumeQueue=300000    # 300KB

# 清理过期文件
deleteWhen=04
fileReservedTime=72

# 线程池配置
sendMessageThreadPoolNums=16
pullMessageThreadPoolNums=16

# 网络配置
listenPort=10911
serverWorkerThreads=8
serverCallbackExecutorThreads=8

七、总结

本文从源码层面深度剖析了RocketMQ的Producer、Broker、Consumer三大核心组件，通过流程图、核心代码解析和实战案例，系统讲解了：

Producer：消息发送流程、队列选择策略、重试机制
Broker：消息存储机制、刷盘策略、主从复制
Consumer：消费模式、偏移量管理、重试机制
实战应用：分布式事务、消息过滤、性能优化

RocketMQ的设计体现了高性能、高可用、可扩展的分布式系统设计思想，深入理解其源码有助于我们更好地使用和优化RocketMQ，解决实际生产环境中的问题。

附录：完整pom.xml配置

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.jam.demo</groupId>
    <artifactId>rocketmq-source-analysis</artifactId>
    <version>1.0.0</version>

    <properties>
        <maven.compiler.source>17</maven.compiler.source>
        <maven.compiler.target>17</maven.compiler.target>
        <rocketmq.version>5.1.4</rocketmq.version>
        <lombok.version>1.18.30</lombok.version>
        <spring.version>6.1.2</spring.version>
    </properties>

    <dependencies>
        <!-- RocketMQ客户端 -->
        <dependency>
            <groupId>org.apache.rocketmq</groupId>
            <artifactId>rocketmq-client</artifactId>
            <version>${rocketmq.version}</version>
        </dependency>

        <!-- Lombok -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>${lombok.version}</version>
            <scope>provided</scope>
        </dependency>

        <!-- Spring Context -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <!-- Spring Utils -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <!-- Guava -->
        <dependency>
            <groupId>com.google.guava</groupId>
            <artifactId>guava</artifactId>
            <version>32.1.3-jre</version>
        </dependency>

        <!-- Fastjson2 -->
        <dependency>
            <groupId>com.alibaba.fastjson2</groupId>
            <artifactId>fastjson2</artifactId>
            <version>2.0.32</version>
        </dependency>
    </dependencies>
</project>

本文参与腾讯云自媒体同步曝光计划，分享自微信公众号。

原始发表：2025-12-05，如有侵权请联系 cloudcommunity@tencent.com 删除

rocketmq
