吃透 Spring 12 个核心扩展点：从源码底层到生产级实战，90% 的高级开发都在用

果酱带你啃java

发布于 2026-04-14 14:50:51

470

前言

Spring之所以能成为Java生态的事实标准，核心在于其极致灵活的扩展能力。几乎所有主流中间件（MyBatis、Dubbo、RocketMQ等）的Spring整合包，都是基于Spring原生扩展点实现的。掌握这些扩展点，不仅能让你写出更优雅的Spring应用，更是阅读源码、二次开发框架、排查疑难问题的核心能力。

一、Spring Bean完整生命周期全景

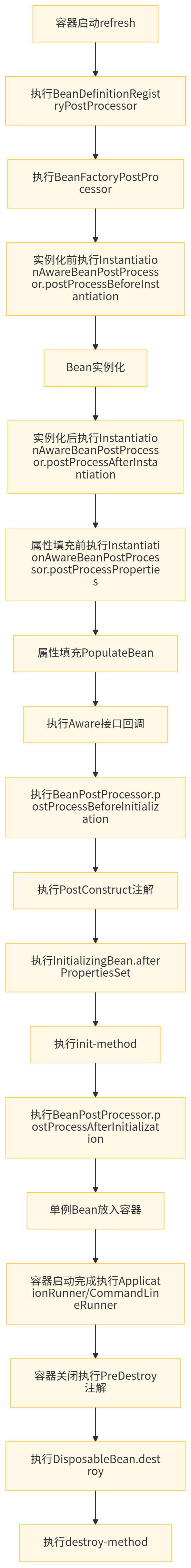

所有Spring扩展点都是围绕Bean生命周期的回调机制实现的，先通过流程图建立全局认知：

二、项目基础环境配置

pom.xml配置如下：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.4.3</version>
        <relativePath/>
    </parent>
    <groupId>com.jam</groupId>
    <artifactId>spring-extension-demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>spring-extension-demo</name>
    <description>Spring扩展点实战demo</description>
    <properties>
        <java.version>17</java.version>
        <lombok.version>1.18.34</lombok.version>
        <guava.version>33.2.1-jre</guava.version>
        <fastjson2.version>2.0.52</fastjson2.version>
        <mybatis-plus.version>3.5.7</mybatis-plus.version>
        <springdoc.version>2.6.0</springdoc.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>com.mysql</groupId>
            <artifactId>mysql-connector-j</artifactId>
            <version>8.4.0</version>
        </dependency>
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>${mybatis-plus.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springdoc</groupId>
            <artifactId>springdoc-openapi-starter-webmvc-ui</artifactId>
            <version>${springdoc.version}</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>${lombok.version}</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>com.google.guava</groupId>
            <artifactId>guava</artifactId>
            <version>${guava.version}</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba.fastjson2</groupId>
            <artifactId>fastjson2</artifactId>
            <version>${fastjson2.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

application.yml基础配置：

spring:
  datasource:
    url:jdbc:mysql://localhost:3306/test_db?useUnicode=true&characterEncoding=utf8&serverTimezone=Asia/Shanghai
    username:root
    password:MTIzNDU2
application:
    name:spring-extension-demo

encrypt:
db-password:MTIzNDU2

三、核心扩展点详解（按生命周期顺序）

3.1 BeanDefinition注册阶段：容器最前置扩展

该阶段Bean还未实例化，是修改Bean定义的黄金时期，也是框架整合的核心扩展点。

3.1.1 BeanDefinitionRegistryPostProcessor

核心作用：动态注册、修改、删除BeanDefinition，是Spring容器启动最先执行的扩展点，优先级高于BeanFactoryPostProcessor。源码触发时机：AbstractApplicationContext#refresh()方法中，invokeBeanFactoryPostProcessors()优先执行该接口的postProcessBeanDefinitionRegistry方法。适用场景：动态注册Bean、扫描自定义注解注册Bean、框架整合时批量注册Mapper/Service。

实战示例：动态注册Bean

package com.jam.demo.processor;

import com.jam.demo.service.DynamicService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.BeansException;
import org.springframework.beans.factory.config.BeanDefinition;
import org.springframework.beans.factory.config.ConfigurableListableBeanFactory;
import org.springframework.beans.factory.support.BeanDefinitionBuilder;
import org.springframework.beans.factory.support.BeanDefinitionRegistry;
import org.springframework.beans.factory.support.BeanDefinitionRegistryPostProcessor;
import org.springframework.stereotype.Component;

/**
 * 自定义BeanDefinition注册后置处理器
 * @author ken
 */
@Slf4j
@Component
publicclass CustomBeanDefinitionRegistryPostProcessor implements BeanDefinitionRegistryPostProcessor {

    /**
     * 注册BeanDefinition的核心方法，优先于postProcessBeanFactory执行
     * @param registry Bean定义注册器，提供BeanDefinition的增删改查能力
     * @throws BeansException 处理过程中抛出的异常
     */
    @Override
    public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) throws BeansException {
        log.info("执行CustomBeanDefinitionRegistryPostProcessor.postProcessBeanDefinitionRegistry");
        BeanDefinitionBuilder beanDefinitionBuilder = BeanDefinitionBuilder.genericBeanDefinition(DynamicService.class);
        beanDefinitionBuilder.addPropertyValue("serviceName", "dynamicRegisterService");
        beanDefinitionBuilder.setScope(BeanDefinition.SCOPE_SINGLETON);
        registry.registerBeanDefinition("dynamicService", beanDefinitionBuilder.getBeanDefinition());
        log.info("动态注册BeanDefinition[dynamicService]完成");

        if (registry.containsBeanDefinition("dataSource")) {
            BeanDefinition dataSourceBeanDefinition = registry.getBeanDefinition("dataSource");
            dataSourceBeanDefinition.setLazyInit(true);
            log.info("修改dataSource的懒加载属性为true完成");
        }
    }

    /**
     * 父接口BeanFactoryPostProcessor的方法，在postProcessBeanDefinitionRegistry之后执行
     * @param beanFactory 可配置的Bean工厂
     * @throws BeansException 处理过程中抛出的异常
     */
    @Override
    public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException {
        log.info("执行CustomBeanDefinitionRegistryPostProcessor.postProcessBeanFactory");
    }
}

package com.jam.demo.service;

import lombok.Data;
import lombok.extern.slf4j.Slf4j;

/**
 * 动态注册的服务类
 * @author ken
 */
@Slf4j
@Data
publicclass DynamicService {

    private String serviceName;

    /**
     * 测试方法
     */
    public void test() {
        log.info("DynamicService.test执行，serviceName:{}", serviceName);
    }
}

3.1.2 BeanFactoryPostProcessor

核心作用：修改已注册的BeanDefinition，无BeanDefinition注册能力。源码触发时机：AbstractApplicationContext#refresh()方法中，所有BeanDefinitionRegistryPostProcessor执行完成后，执行该接口的postProcessBeanFactory方法。适用场景：批量修改已注册Bean的属性、作用域、懒加载等配置。

实战示例：修改已注册Bean的属性

package com.jam.demo.processor;

import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.BeansException;
import org.springframework.beans.factory.config.BeanFactoryPostProcessor;
import org.springframework.beans.factory.config.ConfigurableListableBeanFactory;
import org.springframework.stereotype.Component;

/**
 * 自定义Bean工厂后置处理器
 * @author ken
 */
@Slf4j
@Component
publicclass CustomBeanFactoryPostProcessor implements BeanFactoryPostProcessor {

    /**
     * 对BeanFactory进行后置处理的核心方法
     * @param beanFactory 可配置的Bean工厂，包含所有已注册的BeanDefinition
     * @throws BeansException 处理过程中抛出的异常
     */
    @Override
    public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException {
        log.info("执行CustomBeanFactoryPostProcessor.postProcessBeanFactory");
        if (beanFactory.containsBeanDefinition("dynamicService")) {
            beanFactory.getBeanDefinition("dynamicService")
                    .getPropertyValues()
                    .addPropertyValue("serviceName", "modifiedByBeanFactoryPostProcessor");
            log.info("修改dynamicService的serviceName属性完成");
        }
    }
}

3.2 Bean实例化阶段：控制Bean的创建流程

该阶段在Bean实例化前后执行，可跳过Spring默认的实例化流程，实现自定义对象创建。

3.2.1 InstantiationAwareBeanPostProcessor

核心作用：Bean实例化前后、属性填充前后的回调，可控制Bean的实例化和属性填充流程。源码触发时机：AbstractAutowireCapableBeanFactory#createBean()中，先执行postProcessBeforeInstantiation，若返回非null对象，直接跳过默认实例化流程；实例化后在populateBean()中执行后续方法。核心方法说明：

postProcessBeforeInstantiation：实例化前执行，返回非null则跳过默认实例化
postProcessAfterInstantiation：实例化后、属性填充前执行，返回false则跳过属性填充
postProcessProperties：属性填充前执行，实现自定义属性注入逻辑

实战示例：加密配置自动解密注入自定义注解：

package com.jam.demo.annotation;

import java.lang.annotation.*;

/**
 * 加密配置值注解，标注在字段上实现加密配置自动解密注入
 * @author ken
 */
@Target({ElementType.FIELD})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface EncryptValue {

    /**
     * 配置文件中的key
     * @return 配置key
     */
    String value();
}

处理器实现：

package com.jam.demo.processor;

import com.jam.demo.annotation.EncryptValue;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.BeansException;
import org.springframework.beans.PropertyValues;
import org.springframework.beans.factory.config.InstantiationAwareBeanPostProcessor;
import org.springframework.core.env.Environment;
import org.springframework.stereotype.Component;
import org.springframework.util.ObjectUtils;
import org.springframework.util.ReflectionUtils;

import java.lang.reflect.Field;
import java.util.Base64;

/**
 * 自定义实例化感知Bean后置处理器
 * @author ken
 */
@Slf4j
@Component
publicclass CustomInstantiationAwareBeanPostProcessor implements InstantiationAwareBeanPostProcessor {

    privatefinal Environment environment;

    public CustomInstantiationAwareBeanPostProcessor(Environment environment) {
        this.environment = environment;
    }

    @Override
    public Object postProcessBeforeInstantiation(Class<?> beanClass, String beanName) throws BeansException {
        return InstantiationAwareBeanPostProcessor.super.postProcessBeforeInstantiation(beanClass, beanName);
    }

    @Override
    public boolean postProcessAfterInstantiation(Object bean, String beanName) throws BeansException {
        return InstantiationAwareBeanPostProcessor.super.postProcessAfterInstantiation(bean, beanName);
    }

    @Override
    public PropertyValues postProcessProperties(PropertyValues pvs, Object bean, String beanName) throws BeansException {
        Field[] declaredFields = bean.getClass().getDeclaredFields();
        if (ObjectUtils.isEmpty(declaredFields)) {
            return pvs;
        }
        for (Field field : declaredFields) {
            EncryptValue encryptValue = field.getAnnotation(EncryptValue.class);
            if (ObjectUtils.isEmpty(encryptValue)) {
                continue;
            }
            String encryptKey = encryptValue.value();
            String encryptValueStr = environment.getProperty(encryptKey);
            if (!org.springframework.util.StringUtils.hasText(encryptValueStr)) {
                log.warn("配置key:{}对应的加密值为空", encryptKey);
                continue;
            }
            String decryptValue = new String(Base64.getDecoder().decode(encryptValueStr));
            ReflectionUtils.makeAccessible(field);
            ReflectionUtils.setField(field, bean, decryptValue);
            log.info("Bean[{}]的字段[{}]解密注入完成", beanName, field.getName());
        }
        return pvs;
    }
}

测试类：

package com.jam.demo.config;

import com.jam.demo.annotation.EncryptValue;
import lombok.Data;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Component;

/**
 * 加密配置测试类
 * @author ken
 */
@Slf4j
@Data
@Component
publicclass EncryptConfigTest {

    @EncryptValue("encrypt.db-password")
    private String dbPassword;

    public void printPassword() {
        log.info("解密后的数据库密码:{}", dbPassword);
    }
}

3.3 属性填充完成阶段：容器核心组件感知

该阶段在Bean属性填充完成后执行，通过Aware接口获取Spring容器的核心组件，实现对容器的感知。

3.3.1 Aware接口家族

核心作用：回调注入Spring容器的核心组件，解除Bean对容器的耦合。源码触发时机：AbstractAutowireCapableBeanFactory#initializeBean()中，先执行invokeAwareMethods()处理Aware接口，执行时机在初始化之前。高频Aware接口说明：

BeanNameAware：注入当前Bean的名称
BeanFactoryAware：注入BeanFactory实例
ApplicationContextAware：注入ApplicationContext上下文
EnvironmentAware：注入环境配置对象Environment
ResourceLoaderAware：注入资源加载器ResourceLoader

实战示例：Aware接口综合使用

package com.jam.demo.service;

import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.BeansException;
import org.springframework.beans.factory.BeanFactory;
import org.springframework.beans.factory.BeanFactoryAware;
import org.springframework.beans.factory.BeanNameAware;
import org.springframework.context.ApplicationContext;
import org.springframework.context.ApplicationContextAware;
import org.springframework.context.EnvironmentAware;
import org.springframework.core.env.Environment;
import org.springframework.stereotype.Component;

/**
 * Aware接口回调测试类
 * @author ken
 */
@Slf4j
@Component
publicclass AwareTestService implements BeanNameAware, BeanFactoryAware, ApplicationContextAware, EnvironmentAware {

    private String beanName;
    private BeanFactory beanFactory;
    private ApplicationContext applicationContext;
    private Environment environment;

    @Override
    public void setBeanName(String name) {
        this.beanName = name;
        log.info("BeanNameAware.setBeanName执行，beanName:{}", name);
    }

    @Override
    public void setBeanFactory(BeanFactory beanFactory) throws BeansException {
        this.beanFactory = beanFactory;
        log.info("BeanFactoryAware.setBeanFactory执行");
    }

    @Override
    public void setApplicationContext(ApplicationContext applicationContext) throws BeansException {
        this.applicationContext = applicationContext;
        log.info("ApplicationContextAware.setApplicationContext执行");
    }

    @Override
    public void setEnvironment(Environment environment) {
        this.environment = environment;
        log.info("EnvironmentAware.setEnvironment执行");
    }

    public void printContainerInfo() {
        log.info("当前Bean名称:{}", beanName);
        log.info("应用名称:{}", environment.getProperty("spring.application.name"));
        log.info("容器中Bean的数量:{}", applicationContext.getBeanDefinitionCount());
    }
}

3.4 Bean初始化阶段：Spring最核心的扩展点

该阶段是Bean生命周期中最核心的扩展阶段，Spring AOP、注解处理等核心能力均基于此实现。

3.4.1 BeanPostProcessor

核心作用：Bean初始化前后的回调，可对Bean进行包装、修改、生成代理对象，是Spring AOP的底层实现核心。源码触发时机：AbstractAutowireCapableBeanFactory#initializeBean()中，先执行applyBeanPostProcessorsBeforeInitialization，再执行初始化方法，最后执行applyBeanPostProcessorsAfterInitialization。核心方法说明：

postProcessBeforeInitialization：初始化前执行，可修改Bean属性、参数校验
postProcessAfterInitialization：初始化后执行，生成AOP代理对象的核心位置

实战示例：操作日志注解实现自定义注解：

package com.jam.demo.annotation;

import java.lang.annotation.*;

/**
 * 操作日志注解，标注在方法上自动打印方法执行日志
 * @author ken
 */
@Target({ElementType.METHOD})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface OperateLog {

    /**
     * 操作描述
     * @return 操作描述
     */
    String value();
}

处理器实现：

package com.jam.demo.processor;

import com.alibaba.fastjson2.JSON;
import com.jam.demo.annotation.OperateLog;
import lombok.extern.slf4j.Slf4j;
import org.aopalliance.intercept.MethodInterceptor;
import org.springframework.aop.framework.ProxyFactory;
import org.springframework.beans.BeansException;
import org.springframework.beans.factory.config.BeanPostProcessor;
import org.springframework.stereotype.Component;
import org.springframework.util.ObjectUtils;

import java.lang.reflect.Method;

/**
 * 自定义Bean后置处理器
 * @author ken
 */
@Slf4j
@Component
publicclass CustomBeanPostProcessor implements BeanPostProcessor {

    @Override
    public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
        return BeanPostProcessor.super.postProcessBeforeInitialization(bean, beanName);
    }

    @Override
    public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
        Method[] declaredMethods = bean.getClass().getDeclaredMethods();
        boolean hasOperateLog = false;
        for (Method method : declaredMethods) {
            if (!ObjectUtils.isEmpty(method.getAnnotation(OperateLog.class))) {
                hasOperateLog = true;
                break;
            }
        }
        if (hasOperateLog) {
            ProxyFactory proxyFactory = new ProxyFactory(bean);
            proxyFactory.addAdvice((MethodInterceptor) invocation -> {
                Method method = invocation.getMethod();
                OperateLog operateLog = method.getAnnotation(OperateLog.class);
                String operateDesc = operateLog.value();
                String className = method.getDeclaringClass().getName();
                String methodName = method.getName();
                Object[] args = invocation.getArguments();
                long startTime = System.currentTimeMillis();
                log.info("【操作日志】开始执行，操作描述:{}, 类名:{}, 方法名:{}, 入参:{}",
                        operateDesc, className, methodName, JSON.toJSONString(args));
                Object result = null;
                try {
                    result = invocation.proceed();
                    log.info("【操作日志】执行成功，操作描述:{}, 耗时:{}ms, 出参:{}",
                            operateDesc, System.currentTimeMillis() - startTime, JSON.toJSONString(result));
                    return result;
                } catch (Throwable e) {
                    log.error("【操作日志】执行异常，操作描述:{}, 耗时:{}ms, 异常信息:{}",
                            operateDesc, System.currentTimeMillis() - startTime, e.getMessage(), e);
                    throw e;
                }
            });
            return proxyFactory.getProxy();
        }
        return bean;
    }
}

测试服务：

package com.jam.demo.service;

import com.jam.demo.annotation.OperateLog;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Service;

/**
 * 操作日志测试服务类
 * @author ken
 */
@Slf4j
@Service
publicclass OperateLogTestService {

    /**
     * 测试方法
     * @param username 用户名
     * @param age 年龄
     * @return 拼接后的字符串
     */
    @OperateLog("测试用户信息查询")
    public String testOperateLog(String username, Integer age) {
        log.info("执行testOperateLog方法，username:{}, age:{}", username, age);
        return"用户名:" + username + ", 年龄:" + age;
    }
}

3.4.2 InitializingBean + @PostConstruct

核心作用：Bean属性填充完成后执行初始化逻辑，完成资源加载、参数校验等操作。执行顺序（100%准确）：@PostConstruct → InitializingBean.afterPropertiesSet → init-method核心区别：

@PostConstruct：JSR-250标准注解，无Spring耦合，由CommonAnnotationBeanPostProcessor处理
InitializingBean：Spring原生接口，耦合度高，无需反射，性能更好
init-method：XML/注解配置的初始化方法，完全解耦

实战示例：InitializingBean初始化线程池

package com.jam.demo.service;

import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.InitializingBean;
import org.springframework.stereotype.Component;
import org.springframework.util.ObjectUtils;

import java.util.concurrent.ArrayBlockingQueue;
import java.util.concurrent.ThreadPoolExecutor;
import java.util.concurrent.TimeUnit;

/**
 * InitializingBean测试类
 * @author ken
 */
@Slf4j
@Component
publicclass InitializingBeanTestService implements InitializingBean {

    private ThreadPoolExecutor threadPoolExecutor;

    @Override
    public void afterPropertiesSet() throws Exception {
        log.info("执行InitializingBean.afterPropertiesSet方法，初始化线程池");
        this.threadPoolExecutor = new ThreadPoolExecutor(
                2,
                8,
                60,
                TimeUnit.SECONDS,
                new ArrayBlockingQueue<>(100),
                r -> new Thread(r, "business-thread-" + r.hashCode()),
                new ThreadPoolExecutor.CallerRunsPolicy()
        );
        log.info("业务线程池初始化完成");
    }

    public void submitTask(Runnable runnable) {
        if (ObjectUtils.isEmpty(threadPoolExecutor) || threadPoolExecutor.isShutdown()) {
            thrownew IllegalStateException("线程池未初始化或已关闭");
        }
        threadPoolExecutor.submit(runnable);
    }

    public void shutdownThreadPool() {
        if (!ObjectUtils.isEmpty(threadPoolExecutor) && !threadPoolExecutor.isShutdown()) {
            threadPoolExecutor.shutdown();
            log.info("业务线程池已关闭");
        }
    }
}

3.5 容器启动完成阶段：启动后初始化

该阶段在Spring容器完全启动、所有单例Bean初始化完成后执行，用于执行启动后的初始化任务。

3.5.1 ApplicationRunner + CommandLineRunner

核心作用：容器启动完成后执行自定义逻辑，支持通过@Order注解控制执行顺序。核心区别：

ApplicationRunner：入参为ApplicationArguments，封装了启动参数，支持--key=value格式参数解析
CommandLineRunner：入参为原始String数组，仅支持简单的启动参数处理

实战示例：启动后字典缓存预热MySQL表结构（MySQL 8.0+）：

CREATE TABLE`sys_dict` (
`id`bigintNOTNULL AUTO_INCREMENT COMMENT'主键ID',
`dict_code`varchar(64) NOTNULLCOMMENT'字典编码',
`dict_name`varchar(128) NOTNULLCOMMENT'字典名称',
`dict_value`varchar(256) NOTNULLCOMMENT'字典值',
`status`tinyintNOTNULLDEFAULT'1'COMMENT'状态 0-禁用 1-启用',
`create_time` datetime NOTNULLDEFAULTCURRENT_TIMESTAMPCOMMENT'创建时间',
`update_time` datetime NOTNULLDEFAULTCURRENT_TIMESTAMPONUPDATECURRENT_TIMESTAMPCOMMENT'更新时间',
  PRIMARY KEY (`id`),
UNIQUEKEY`uk_dict_code_value` (`dict_code`,`dict_value`)
) ENGINE=InnoDBDEFAULTCHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci COMMENT='系统字典表';

实体类：

package com.jam.demo.entity;

import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.annotation.TableId;
import com.baomidou.mybatisplus.annotation.TableName;
import io.swagger.v3.oas.annotations.media.Schema;
import lombok.Data;

import java.time.LocalDateTime;

/**
 * 系统字典实体类
 * @author ken
 */
@Data
@TableName("sys_dict")
@Schema(description = "系统字典实体")
publicclass SysDict {

    @TableId(type = IdType.AUTO)
    @Schema(description = "主键ID", example = "1")
    private Long id;

    @Schema(description = "字典编码", example = "user_status")
    private String dictCode;

    @Schema(description = "字典名称", example = "用户状态")
    private String dictName;

    @Schema(description = "字典值", example = "1")
    private String dictValue;

    @Schema(description = "状态 0-禁用 1-启用", example = "1")
    private Integer status;

    @Schema(description = "创建时间")
    private LocalDateTime createTime;

    @Schema(description = "更新时间")
    private LocalDateTime updateTime;
}

Mapper接口：

package com.jam.demo.mapper;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.jam.demo.entity.SysDict;
import org.apache.ibatis.annotations.Mapper;

/**
 * 系统字典Mapper接口
 * @author ken
 */
@Mapper
public interface SysDictMapper extends BaseMapper<SysDict> {
}

服务接口：

package com.jam.demo.service;

import com.baomidou.mybatisplus.extension.service.IService;
import com.jam.demo.entity.SysDict;

import java.util.Set;

/**
 * 系统字典服务接口
 * @author ken
 */
publicinterface SysDictService extends IService<SysDict> {

    /**
     * 根据字典编码获取字典值集合
     * @param dictCode 字典编码
     * @return 字典值集合
     */
    Set<String> getDictValuesByCode(String dictCode);

    /**
     * 刷新字典缓存
     */
    void refreshDictCache();
}

服务实现：

package com.jam.demo.service.impl;

import com.baomidou.mybatisplus.core.conditions.query.LambdaQueryWrapper;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.google.common.collect.Maps;
import com.google.common.collect.Sets;
import com.jam.demo.entity.SysDict;
import com.jam.demo.mapper.SysDictMapper;
import com.jam.demo.service.SysDictService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Service;
import org.springframework.util.StringUtils;

import java.util.Map;
import java.util.Set;
import java.util.stream.Collectors;

/**
 * 系统字典服务实现类
 * @author ken
 */
@Slf4j
@Service
publicclass SysDictServiceImpl extends ServiceImpl<SysDictMapper, SysDict> implements SysDictService {

    privatefinal Map<String, Set<String>> dictCache = Maps.newConcurrentMap();

    @Override
    public Set<String> getDictValuesByCode(String dictCode) {
        if (!StringUtils.hasText(dictCode)) {
            return Sets.newHashSet();
        }
        return dictCache.getOrDefault(dictCode, Sets.newHashSet());
    }

    @Override
    public void refreshDictCache() {
        log.info("开始刷新字典缓存");
        LambdaQueryWrapper<SysDict> queryWrapper = new LambdaQueryWrapper<SysDict>()
                .eq(SysDict::getStatus, 1);
        Map<String, Set<String>> newDictCache = this.list(queryWrapper).stream()
                .filter(dict -> StringUtils.hasText(dict.getDictCode()) && StringUtils.hasText(dict.getDictValue()))
                .collect(Collectors.groupingBy(
                        SysDict::getDictCode,
                        Collectors.mapping(SysDict::getDictValue, Collectors.toSet())
                ));
        dictCache.clear();
        dictCache.putAll(newDictCache);
        log.info("字典缓存刷新完成，共加载{}个字典编码", dictCache.size());
    }
}

启动预热实现：

package com.jam.demo.runner;

import com.jam.demo.service.SysDictService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.boot.ApplicationArguments;
import org.springframework.boot.ApplicationRunner;
import org.springframework.stereotype.Component;

/**
 * 字典缓存预加载处理器
 * @author ken
 */
@Slf4j
@Component
publicclass DictCachePreloadRunner implements ApplicationRunner {

    privatefinal SysDictService sysDictService;

    public DictCachePreloadRunner(SysDictService sysDictService) {
        this.sysDictService = sysDictService;
    }

    @Override
    public void run(ApplicationArguments args) throws Exception {
        log.info("执行DictCachePreloadRunner.run，开始预加载字典缓存");
        sysDictService.refreshDictCache();
        log.info("字典缓存预加载完成");
    }
}

3.6 AOP高级扩展：PointcutAdvisor

核心作用：Spring AOP的原生高级扩展点，比@Aspect注解更灵活、性能更高，是中间件AOP实现的首选方案。底层逻辑：Spring AOP自动代理创建器基于BeanPostProcessor，扫描容器中所有Advisor，匹配目标Bean并生成代理对象。核心组成：Pointcut（切点，定义拦截规则） + Advice（通知，定义拦截逻辑）

实战示例：基于Guava的接口限流实现自定义注解：

package com.jam.demo.annotation;

import java.lang.annotation.*;

/**
 * 接口限流注解
 * @author ken
 */
@Target({ElementType.METHOD})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public@interface RateLimit {

    /**
     * 每秒允许的请求数（QPS）
     * @return QPS
     */
    double permitsPerSecond();

    /**
     * 获取令牌的超时时间，单位毫秒
     * @return 超时时间
     */
    long timeout() default 500;
}

限流拦截器：

package com.jam.demo.aop;

import com.google.common.util.concurrent.RateLimiter;
import com.jam.demo.annotation.RateLimit;
import lombok.extern.slf4j.Slf4j;
import org.aopalliance.intercept.MethodInterceptor;
import org.aopalliance.intercept.MethodInvocation;
import org.springframework.util.ObjectUtils;

import java.lang.reflect.Method;
import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;

/**
 * 限流拦截器
 * @author ken
 */
@Slf4j
publicclass RateLimitInterceptor implements MethodInterceptor {

    privatefinal Map<String, RateLimiter> rateLimiterCache = new ConcurrentHashMap<>();

    @Override
    public Object invoke(MethodInvocation invocation) throws Throwable {
        Method method = invocation.getMethod();
        RateLimit rateLimit = method.getAnnotation(RateLimit.class);
        if (ObjectUtils.isEmpty(rateLimit)) {
            return invocation.proceed();
        }
        String methodKey = method.getDeclaringClass().getName() + "#" + method.getName();
        RateLimiter rateLimiter = rateLimiterCache.computeIfAbsent(methodKey,
                k -> RateLimiter.create(rateLimit.permitsPerSecond()));
        boolean acquire = rateLimiter.tryAcquire(rateLimit.timeout(), java.util.concurrent.TimeUnit.MILLISECONDS);
        if (!acquire) {
            log.warn("接口限流触发，方法:{}, QPS限制:{}", methodKey, rateLimit.permitsPerSecond());
            thrownew RuntimeException("系统繁忙，请稍后再试");
        }
        return invocation.proceed();
    }
}

切面配置：

package com.jam.demo.aop;

import com.jam.demo.annotation.RateLimit;
import org.springframework.aop.Pointcut;
import org.springframework.aop.support.AbstractPointcutAdvisor;
import org.springframework.aop.support.annotation.AnnotationMatchingPointcut;
import org.springframework.stereotype.Component;

/**
 * 限流切面配置
 * @author ken
 */
@Component
publicclass RateLimitAdvisor extends AbstractPointcutAdvisor {

    privatefinal Pointcut pointcut;
    privatefinal RateLimitInterceptor interceptor;

    public RateLimitAdvisor() {
        this.pointcut = new AnnotationMatchingPointcut(null, RateLimit.class);
        this.interceptor = new RateLimitInterceptor();
    }

    @Override
    public Pointcut getPointcut() {
        returnthis.pointcut;
    }

    @Override
    public org.aopalliance.aop.Advice getAdvice() {
        returnthis.interceptor;
    }
}

3.7 事务扩展：TransactionSynchronization

核心作用：事务同步回调，在事务的不同阶段执行自定义逻辑，解决事务与外部操作的一致性问题。源码触发时机：Spring事务管理器在事务提交、回滚的各个阶段，会遍历所有注册的TransactionSynchronization，执行对应的回调方法。核心回调方法：

afterCommit()：事务提交成功后执行，最常用的方法
beforeCommit()：事务提交前执行
afterCompletion()：事务完成后执行（提交/回滚都会执行）
beforeCompletion()：事务完成前执行

实战示例：事务提交后发送消息服务接口：

package com.jam.demo.service;

import com.jam.demo.entity.SysDict;

/**
 * 事务测试服务接口
 * @author ken
 */
public interface TransactionTestService {

    /**
     * 新增字典并在事务提交后发送消息
     * @param sysDict 字典数据
     */
    void addDictWithMessageSend(SysDict sysDict);
}

服务实现（编程式事务）：

package com.jam.demo.service.impl;

import com.jam.demo.entity.SysDict;
import com.jam.demo.mapper.SysDictMapper;
import com.jam.demo.service.TransactionTestService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Service;
import org.springframework.transaction.PlatformTransactionManager;
import org.springframework.transaction.TransactionStatus;
import org.springframework.transaction.support.DefaultTransactionDefinition;
import org.springframework.transaction.support.TransactionSynchronization;
import org.springframework.transaction.support.TransactionSynchronizationManager;

/**
 * 事务测试服务实现类
 * @author ken
 */
@Slf4j
@Service
publicclass TransactionTestServiceImpl implements TransactionTestService {

    privatefinal PlatformTransactionManager transactionManager;
    privatefinal SysDictMapper sysDictMapper;

    public TransactionTestServiceImpl(PlatformTransactionManager transactionManager, SysDictMapper sysDictMapper) {
        this.transactionManager = transactionManager;
        this.sysDictMapper = sysDictMapper;
    }

    @Override
    public void addDictWithMessageSend(SysDict sysDict) {
        DefaultTransactionDefinition transactionDefinition = new DefaultTransactionDefinition();
        TransactionStatus transactionStatus = transactionManager.getTransaction(transactionDefinition);
        try {
            sysDictMapper.insert(sysDict);
            log.info("字典数据插入成功，id:{}", sysDict.getId());

            TransactionSynchronizationManager.registerSynchronization(new TransactionSynchronization() {
                @Override
                public void afterCommit() {
                    log.info("事务提交成功，开始发送字典新增消息，dictCode:{}", sysDict.getDictCode());
                    sendMessage(sysDict);
                    log.info("字典新增消息发送完成");
                }

                @Override
                public void afterCompletion(int status) {
                    if (status == STATUS_ROLLED_BACK) {
                        log.error("事务回滚，取消消息发送，dictCode:{}", sysDict.getDictCode());
                    }
                }
            });

            transactionManager.commit(transactionStatus);
        } catch (Exception e) {
            transactionManager.rollback(transactionStatus);
            log.error("字典数据插入失败，事务回滚", e);
            throw e;
        }
    }

    private void sendMessage(SysDict sysDict) {
        log.info("模拟发送MQ消息，内容:{}", sysDict);
    }
}

3.8 容器关闭阶段：资源释放扩展

该阶段在Spring容器关闭时执行，用于释放资源、执行清理操作。核心扩展点：

DisposableBean：Spring原生接口，destroy()方法在容器关闭时执行
@PreDestroy：JSR-250注解，执行时机早于DisposableBean.destroy()
SmartLifecycle：更灵活的生命周期接口，可控制启动和关闭的执行顺序

实战示例：DisposableBean资源释放

package com.jam.demo.service;

import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.DisposableBean;
import org.springframework.stereotype.Component;

/**
 * 容器关闭资源释放测试类
 * @author ken
 */
@Slf4j
@Component
publicclass DisposableBeanTestService implements DisposableBean {

    privatefinal InitializingBeanTestService initializingBeanTestService;

    public DisposableBeanTestService(InitializingBeanTestService initializingBeanTestService) {
        this.initializingBeanTestService = initializingBeanTestService;
    }

    @Override
    public void destroy() throws Exception {
        log.info("执行DisposableBean.destroy方法，释放资源");
        initializingBeanTestService.shutdownThreadPool();
        log.info("所有资源释放完成");
    }
}

四、易混淆扩展点核心区分表

扩展点接口	核心触发时机	核心作用	易混淆点区分
BeanDefinitionRegistryPostProcessor	Bean实例化之前，BeanFactoryPostProcessor之前	注册、修改、删除BeanDefinition	比BeanFactoryPostProcessor执行更早，拥有BeanDefinition注册能力，是其子接口
BeanFactoryPostProcessor	Bean实例化之前，BeanDefinitionRegistryPostProcessor之后	修改已注册的BeanDefinition	无BeanDefinition注册能力，执行时机更晚
InstantiationAwareBeanPostProcessor	Bean实例化前后、属性填充前后	控制Bean实例化和属性填充流程	触发时机远早于BeanPostProcessor，是其子接口
BeanPostProcessor	Bean初始化前后	处理已实例化的Bean，生成代理对象	Spring AOP的核心实现点，实例化已完成
InitializingBean.afterPropertiesSet	属性填充完成后，init-method之前	Bean初始化逻辑	Spring原生接口，执行时机晚于@PostConstruct
@PostConstruct	属性填充完成后，afterPropertiesSet之前	Bean初始化逻辑	JSR-250注解，无Spring耦合，执行时机最早
ApplicationRunner	容器完全启动完成后	启动后初始化任务	入参封装了启动参数，解析更方便
CommandLineRunner	容器完全启动完成后	启动后初始化任务	入参为原始启动参数数组

五、测试接口（Swagger3）

package com.jam.demo.controller;

import com.jam.demo.annotation.OperateLog;
import com.jam.demo.annotation.RateLimit;
import com.jam.demo.service.OperateLogTestService;
import com.jam.demo.service.SysDictService;
import io.swagger.v3.oas.annotations.Operation;
import io.swagger.v3.oas.annotations.Parameter;
import io.swagger.v3.oas.annotations.tags.Tag;
import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.*;

import java.util.Set;

/**
 * 测试控制器
 * @author ken
 */
@Slf4j
@RestController
@RequestMapping("/test")
@Tag(name = "测试接口", description = "Spring扩展点测试接口")
publicclass TestController {

    privatefinal OperateLogTestService operateLogTestService;
    privatefinal SysDictService sysDictService;

    public TestController(OperateLogTestService operateLogTestService, SysDictService sysDictService) {
        this.operateLogTestService = operateLogTestService;
        this.sysDictService = sysDictService;
    }

    @GetMapping("/operate-log")
    @Operation(summary = "操作日志测试", description = "测试@OperateLog注解的功能")
    @OperateLog("测试操作日志接口")
    @RateLimit(permitsPerSecond = 10, timeout = 500)
    public String testOperateLog(
            @Parameter(description = "用户名", required = true, example = "test") @RequestParam String username,
            @Parameter(description = "年龄", required = true, example = "20") @RequestParam Integer age) {
        return operateLogTestService.testOperateLog(username, age);
    }

    @GetMapping("/dict/{dictCode}")
    @Operation(summary = "字典查询", description = "根据字典编码查询字典值")
    @RateLimit(permitsPerSecond = 100, timeout = 200)
    public Set<String> getDictByCode(
            @Parameter(description = "字典编码", required = true, example = "user_status") @PathVariable String dictCode) {
        return sysDictService.getDictValuesByCode(dictCode);
    }

    @PostMapping("/dict/refresh")
    @Operation(summary = "刷新字典缓存", description = "手动刷新字典缓存")
    @OperateLog("刷新字典缓存")
    public void refreshDictCache() {
        sysDictService.refreshDictCache();
    }
}
