CUDA编程 - vector加法

# 查看当前 Colab/Notebook 分配到的 GPU 信息
!nvidia-smi

# 查看 nvcc 编译器版本，确认 CUDA 编译工具链可用
!nvcc --version

# 安装 nvcc4jupyter，让 notebook 可以直接运行 CUDA C/C++ 代码单元
!pip install nvcc4jupyter

# 加载 nvcc4jupyter 扩展，之后可以使用 %%cuda 魔法命令
%load_ext nvcc4jupyter

# 编写cuda代码
%%cuda
#include <stdio.h>

int main() {
    // 最简单的 CUDA C 程序：这里只在 CPU 端打印一句话，用于测试编译和运行流程
    printf("CUDA C is working!\n");
    return 0;
}

# 将cuda代码写入文件
%%writefile hello.cu
#include <stdio.h>

int main() {
    // 将 CUDA 源码写入 hello.cu，后续手动调用 nvcc 编译
    printf("Hello from manually compiled CUDA!\n");
    return 0;
}


# 使用 nvcc 手动编译 hello.cu，并生成可执行文件 hello
!nvcc hello.cu -o hello

# 运行编译后的程序
!./hello

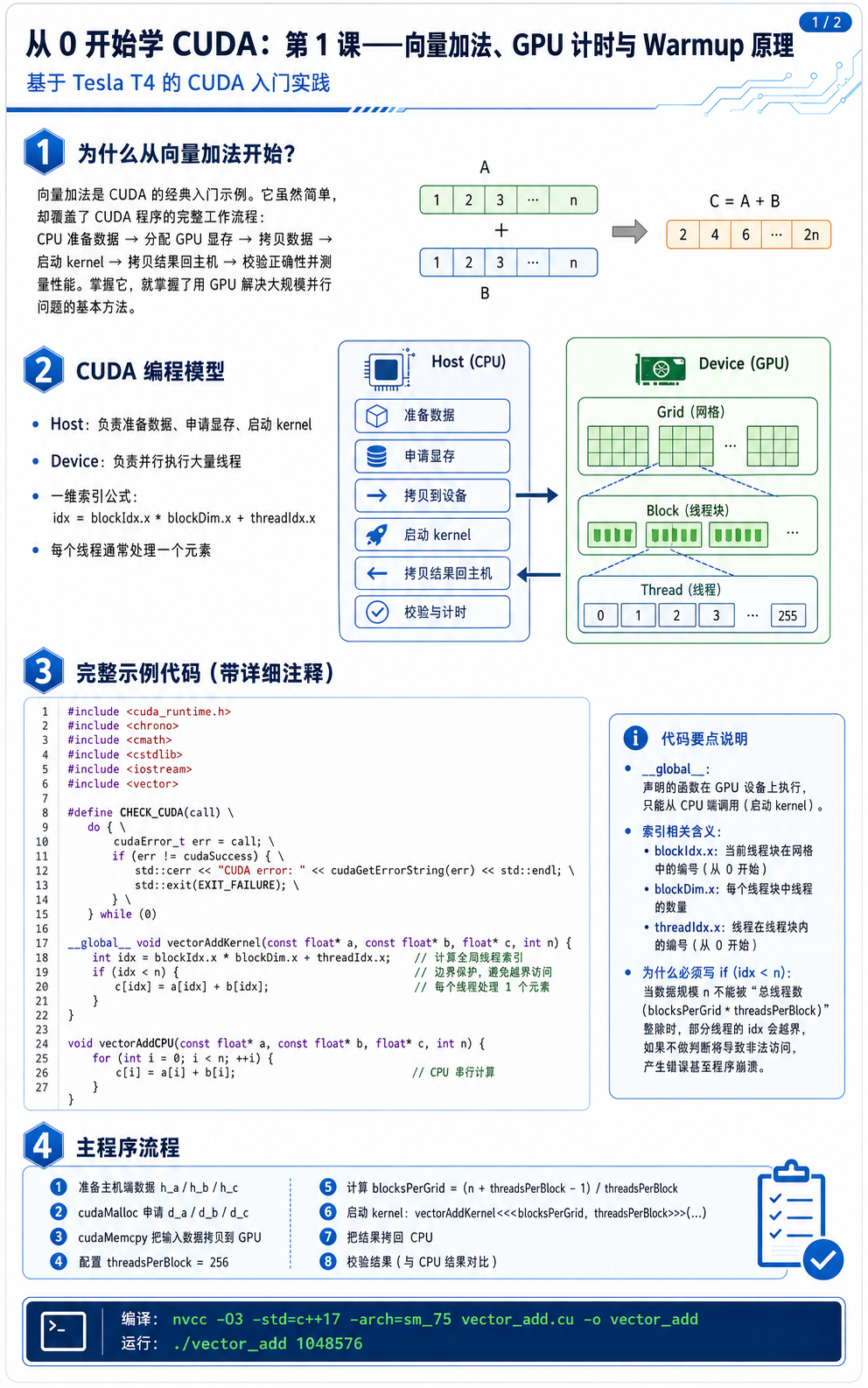

%%writefile vector_add.cu
#include <cuda_runtime.h>

#include <chrono>
#include <cmath>
#include <cstdlib>
#include <iostream>
#include <vector>

// CUDA API 调用检查宏：如果某个 CUDA 调用失败，打印文件、行号和错误信息后退出程序
#define CHECK_CUDA(call)                                                        \
    do {                                                                        \
        cudaError_t err = call;                                                 \
        if (err != cudaSuccess) {                                               \
            std::cerr << "CUDA error at " << __FILE__ << ":" << __LINE__       \
                      << " code=" << static_cast<int>(err)                     \
                      << " message=" << cudaGetErrorString(err) << std::endl;  \
            std::exit(EXIT_FAILURE);                                            \
        }                                                                       \
    } while (0)

// GPU 核函数：每个线程负责计算一个元素 c[idx] = a[idx] + b[idx]
__global__ void vectorAddKernel(const float* a, const float* b, float* c, int n) {
    // blockIdx.x 表示当前线程块编号，blockDim.x 表示每个线程块的线程数，threadIdx.x 表示块内线程编号
    // 三者组合得到当前线程在整个一维网格中的全局下标
    int idx = blockIdx.x * blockDim.x + threadIdx.x;

    // 线程数量通常会向上取整，因此最后一个线程块可能有多余线程，需要防止越界访问
    if (idx < n) {
        c[idx] = a[idx] + b[idx];
    }
}

// CPU 版本的向量加法，用作性能对比和结果校验基准
void vectorAddCPU(const float* a, const float* b, float* c, int n) {
    for (int i = 0; i < n; ++i) {
        c[i] = a[i] + b[i];
    }
}

// 比较 CPU 和 GPU 的计算结果，允许一个很小的浮点误差 eps
bool checkResult(const std::vector<float>& cpu,
                 const std::vector<float>& gpu,
                 int n,
                 float eps = 1e-5f) {
    for (int i = 0; i < n; ++i) {
        if (std::fabs(cpu[i] - gpu[i]) > eps) {
            std::cerr << "Mismatch at index " << i
                      << ", CPU=" << cpu[i]
                      << ", GPU=" << gpu[i] << std::endl;
            returnfalse;
        }
    }
    returntrue;
}

int main(int argc, char** argv) {
    int n = 1 << 26;  // 默认 67,108,864 个 float，大约每个数组 256MB

    if (argc >= 2) {
        n = std::atoi(argv[1]);
    }

    size_t bytes = static_cast<size_t>(n) * sizeof(float);

    std::cout << "Vector size: " << n << " elements" << std::endl;
    std::cout << "Array size : " << bytes / 1024.0 / 1024.0 << " MB each" << std::endl;

    std::vector<float> h_a(n);
    std::vector<float> h_b(n);
    std::vector<float> h_c_cpu(n);
    std::vector<float> h_c_gpu(n);

    for (int i = 0; i < n; ++i) {
        h_a[i] = static_cast<float>(i % 100) * 0.1f;
        h_b[i] = static_cast<float>(i % 50) * 0.2f;
    }

    // -----------------------------
    // CPU 计算计时
    // -----------------------------
    auto cpu_start = std::chrono::high_resolution_clock::now();
    vectorAddCPU(h_a.data(), h_b.data(), h_c_cpu.data(), n);
    auto cpu_end = std::chrono::high_resolution_clock::now();

    double cpu_ms = std::chrono::duration<double, std::milli>(cpu_end - cpu_start).count();

    std::cout << "\n[CPU]" << std::endl;
    std::cout << "CPU time: " << cpu_ms << " ms" << std::endl;

    // -----------------------------
    // GPU 显存申请
    // -----------------------------
    float* d_a = nullptr;
    float* d_b = nullptr;
    float* d_c = nullptr;

    CHECK_CUDA(cudaMalloc(&d_a, bytes));
    CHECK_CUDA(cudaMalloc(&d_b, bytes));
    CHECK_CUDA(cudaMalloc(&d_c, bytes));

    cudaEvent_t total_start, total_stop;
    cudaEvent_t kernel_start, kernel_stop;

    CHECK_CUDA(cudaEventCreate(&total_start));
    CHECK_CUDA(cudaEventCreate(&total_stop));
    CHECK_CUDA(cudaEventCreate(&kernel_start));
    CHECK_CUDA(cudaEventCreate(&kernel_stop));

    CHECK_CUDA(cudaEventRecord(total_start));

    // -----------------------------
    // 数据从 CPU 拷贝到 GPU
    // -----------------------------
    CHECK_CUDA(cudaMemcpy(d_a, h_a.data(), bytes, cudaMemcpyHostToDevice));
    CHECK_CUDA(cudaMemcpy(d_b, h_b.data(), bytes, cudaMemcpyHostToDevice));

    // -----------------------------
    // 启动 GPU kernel
    // -----------------------------
    int threadsPerBlock = 256;
    int blocksPerGrid = (n + threadsPerBlock - 1) / threadsPerBlock;

    std::cout << "\n[GPU Launch Config]" << std::endl;
    std::cout << "threadsPerBlock = " << threadsPerBlock << std::endl;
    std::cout << "blocksPerGrid   = " << blocksPerGrid << std::endl;

    // warmup
    vectorAddKernel<<<blocksPerGrid, threadsPerBlock>>>(d_a, d_b, d_c, n);
    CHECK_CUDA(cudaGetLastError());
    CHECK_CUDA(cudaDeviceSynchronize());

    CHECK_CUDA(cudaEventRecord(kernel_start));

    vectorAddKernel<<<blocksPerGrid, threadsPerBlock>>>(d_a, d_b, d_c, n);
    CHECK_CUDA(cudaGetLastError());

    CHECK_CUDA(cudaEventRecord(kernel_stop));
    CHECK_CUDA(cudaEventSynchronize(kernel_stop));

    // -----------------------------
    // 数据从 GPU 拷贝回 CPU
    // -----------------------------
    CHECK_CUDA(cudaMemcpy(h_c_gpu.data(), d_c, bytes, cudaMemcpyDeviceToHost));

    CHECK_CUDA(cudaEventRecord(total_stop));
    CHECK_CUDA(cudaEventSynchronize(total_stop));

    float kernel_ms = 0.0f;
    float total_ms = 0.0f;

    CHECK_CUDA(cudaEventElapsedTime(&kernel_ms, kernel_start, kernel_stop));
    CHECK_CUDA(cudaEventElapsedTime(&total_ms, total_start, total_stop));

    bool ok = checkResult(h_c_cpu, h_c_gpu, n);

    std::cout << "\n[GPU]" << std::endl;
    std::cout << "GPU kernel time: " << kernel_ms << " ms" << std::endl;
    std::cout << "GPU total time : " << total_ms << " ms" << std::endl;

    // 向量加法每个元素大约读取 a、读取 b、写入 c，共 12 bytes
    double kernel_bandwidth_gb_s = static_cast<double>(n) * 3.0 * sizeof(float) / (kernel_ms / 1000.0) / 1e9;
    double total_bandwidth_gb_s = static_cast<double>(n) * 3.0 * sizeof(float) / (total_ms / 1000.0) / 1e9;

    std::cout << "\n[Performance]" << std::endl;
    std::cout << "Kernel effective bandwidth: " << kernel_bandwidth_gb_s << " GB/s" << std::endl;
    std::cout << "Total effective bandwidth : " << total_bandwidth_gb_s << " GB/s" << std::endl;
    std::cout << "Speedup kernel only vs CPU: " << cpu_ms / kernel_ms << "x" << std::endl;
    std::cout << "Speedup total vs CPU      : " << cpu_ms / total_ms << "x" << std::endl;

    std::cout << "\n[Check]" << std::endl;
    std::cout << "Result: " << (ok ? "PASS" : "FAIL") << std::endl;

    CHECK_CUDA(cudaEventDestroy(total_start));
    CHECK_CUDA(cudaEventDestroy(total_stop));
    CHECK_CUDA(cudaEventDestroy(kernel_start));
    CHECK_CUDA(cudaEventDestroy(kernel_stop));

    CHECK_CUDA(cudaFree(d_a));
    CHECK_CUDA(cudaFree(d_b));
    CHECK_CUDA(cudaFree(d_c));

    return ok ? 0 : 1;
}

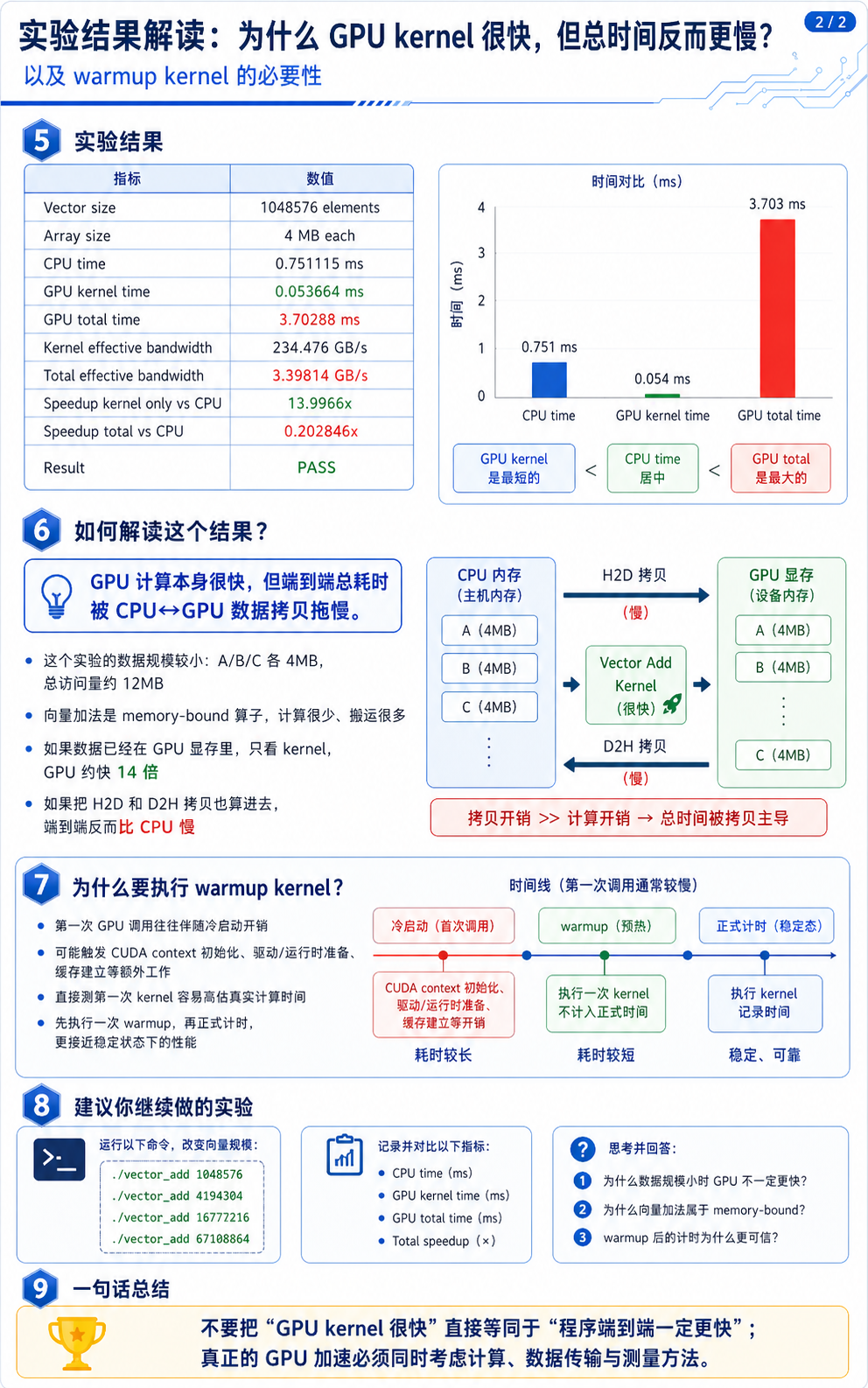

Vector size: 1048576 elements
Array size : 4 MB each

[CPU]
CPU time: 0.751115 ms

[GPU Launch Config]
threadsPerBlock = 256
blocksPerGrid   = 4096

[GPU]
GPU kernel time: 0.053664 ms
GPU total time : 3.70288 ms

[Performance]
Kernel effective bandwidth: 234.476 GB/s
Total effective bandwidth : 3.39814 GB/s
Speedup kernel only vs CPU: 13.9966x
Speedup total vs CPU      : 0.202846x

[Check]
Result: PASS
