代码实战 | Skyborn 0.40 弯曲箭头完全指南：从平面到剖面

作者头像
用户11172986
发布于 2026-05-20 21:19:39
发布于 2026-05-20 21:19:39
640
举报
文章被收录于专栏：气python风雨气python风雨

🌬️ Skyborn 0.40 弯曲箭头完全指南：从平面到剖面

📌 文章标签：Python | 气象可视化 | Skyborn 0.40 | 弯曲箭头 | 剖面流线图 | 大气科学 ⏱️ 阅读时间：约 12 分钟 💻 代码可运行：是

💬 写在前面

hello，大家好，这里是气python风雨，小编最近购入了空气炸锅，正在认真研究菜谱中。但skyborn的作者唐突更新了，说是带来了完全体的弯曲箭头。前几期弯曲箭头的阅读量都不错，那不得不写一篇文章了

顺带说一句有读者反馈看了教程去画了图，ta的导师觉得很满意，小编挺高兴的

Skyborn 迎来了 0.40 版本的重大更新！作为气象可视化领域的"宝藏库"，这次升级不仅重构了底层风场分析管线，还大幅优化了弯曲箭头（Curly Vector）的绘制性能。最激动人心的是——剖面弯曲箭头正式登场了！🎉

本教程将带你从 ERA5 再分析数据出发，完整演示 Skyborn 0.40 的平面与剖面弯曲箭头绘制流程，一文搞定专业大气风场可视化！

🆕 Skyborn 0.40 更新了哪些内容？

在动手画箭头之前，先快速浏览一下 0.40 版本的核心变化，这能帮助你理解为什么现在要升级：

✨ New Features

  • 大气诊断扩展：新增 DCAPE、热带气旋/增长率计算路径等编译诊断模块的 Python 绑定，支撑大气柱工作流。
  • 混合坐标与 Sigma 插值现代化：扩展了 vinth2p 家族，提供更清晰的 column-major 与 C-order 入口，优化 ECMWF 处理逻辑，更新混合坐标与 Sigma 重映射辅助函数。

🔧 Improvements

  • 球谐与风场分析重构：精简球谐函数与简化向量风内部实现，降低包装器开销、提升缓存效率，公开 API 更清晰。
  • 绘图管线加速：将更多散点与弯曲向量的验证/采样工作下沉到原生辅助函数，减少 Python 侧开销和临时数组抖动。 👉 这意味着 curly_vector 绘制更快、内存更省！
  • 构建与文档清理：持续 Meson 构建现代化，重新整理接口文档与测试。

🗑️ Cleanup

  • 废弃旧 API：移除了旧的 Iris 接口及其他未使用的 legacy 路径，收紧了风场分析/谱辅助 API。
  • 回归覆盖：针对插值、绘图、谱辅助和风场分析路径增加了聚焦测试。

⚠️ 重要提醒：0.40 版本中，curved_quiver() 已更名为 curly_vector()，旧名称不再可用。请检查你的历史代码并同步更新！

一、安装 Skyborn 0.40

如果你还在使用旧版本，先升级到 0.40：

代码语言：javascript
复制
!pip install skyborn -U -i https://pypi.mirrors.ustc.edu.cn/simple/
代码语言：javascript
复制
Looking in indexes: https://pypi.mirrors.ustc.edu.cn/simple/
Collecting skyborn
  Downloading https://mirrors.ustc.edu.cn/pypi/packages/f6/e1/aa6e30d216268ffdd3f71469a674ee5f5a323f926004ff0ea79e533906b2/skyborn-0.4.0-cp311-cp311-manylinux_2_27_x86_64.manylinux_2_28_x86_64.whl (2.7 MB)
[2K     [90m━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━[0m [32m2.7/2.7 MB[0m [31m18.7 MB/s[0m eta [36m0:00:00[0ma [36m0:00:01[0m
[?25hRequirement already satisfied: numpy in /opt/conda/lib/python3.11/site-packages (from skyborn) (1.26.4)
Requirement already satisfied: pandas in /opt/conda/lib/python3.11/site-packages (from skyborn) (2.2.3)
Requirement already satisfied: xarray in /opt/conda/lib/python3.11/site-packages (from skyborn) (2024.3.0)
Requirement already satisfied: matplotlib in /opt/conda/lib/python3.11/site-packages (from skyborn) (3.9.1)
Requirement already satisfied: netCDF4 in /opt/conda/lib/python3.11/site-packages (from skyborn) (1.6.3)
Requirement already satisfied: metpy in /opt/conda/lib/python3.11/site-packages (from skyborn) (1.6.3)
Requirement already satisfied: tqdm in /opt/conda/lib/python3.11/site-packages (from skyborn) (4.67.0)
Requirement already satisfied: statsmodels in /opt/conda/lib/python3.11/site-packages (from skyborn) (0.14.4)
Requirement already satisfied: scipy in /opt/conda/lib/python3.11/site-packages (from skyborn) (1.14.1)
Requirement already satisfied: scikit-learn in /opt/conda/lib/python3.11/site-packages (from skyborn) (1.6.0)
Requirement already satisfied: dask in /opt/conda/lib/python3.11/site-packages (from skyborn) (2024.8.1)
Requirement already satisfied: click>=8.1 in /opt/conda/lib/python3.11/site-packages (from dask->skyborn) (8.1.7)
Requirement already satisfied: cloudpickle>=3.0.0 in /opt/conda/lib/python3.11/site-packages (from dask->skyborn) (3.1.0)
Requirement already satisfied: fsspec>=2021.09.0 in /opt/conda/lib/python3.11/site-packages (from dask->skyborn) (2025.2.0)
Requirement already satisfied: packaging>=20.0 in /opt/conda/lib/python3.11/site-packages (from dask->skyborn) (24.1)
Requirement already satisfied: partd>=1.4.0 in /opt/conda/lib/python3.11/site-packages (from dask->skyborn) (1.4.2)
Requirement already satisfied: pyyaml>=5.3.1 in /opt/conda/lib/python3.11/site-packages (from dask->skyborn) (6.0.2)
Requirement already satisfied: toolz>=0.10.0 in /opt/conda/lib/python3.11/site-packages (from dask->skyborn) (1.0.0)
Requirement already satisfied: importlib-metadata>=4.13.0 in /opt/conda/lib/python3.11/site-packages (from dask->skyborn) (8.5.0)
Requirement already satisfied: contourpy>=1.0.1 in /opt/conda/lib/python3.11/site-packages (from matplotlib->skyborn) (1.3.1)
Requirement already satisfied: cycler>=0.10 in /opt/conda/lib/python3.11/site-packages (from matplotlib->skyborn) (0.12.1)
Requirement already satisfied: fonttools>=4.22.0 in /opt/conda/lib/python3.11/site-packages (from matplotlib->skyborn) (4.55.3)
Requirement already satisfied: kiwisolver>=1.3.1 in /opt/conda/lib/python3.11/site-packages (from matplotlib->skyborn) (1.4.7)
Requirement already satisfied: pillow>=8 in /opt/conda/lib/python3.11/site-packages (from matplotlib->skyborn) (9.4.0)
Requirement already satisfied: pyparsing>=2.3.1 in /opt/conda/lib/python3.11/site-packages (from matplotlib->skyborn) (3.2.0)
Requirement already satisfied: python-dateutil>=2.7 in /opt/conda/lib/python3.11/site-packages (from matplotlib->skyborn) (2.9.0.post0)
Requirement already satisfied: pint>=0.17 in /opt/conda/lib/python3.11/site-packages (from metpy->skyborn) (0.24.4)
Requirement already satisfied: pooch>=1.2.0 in /opt/conda/lib/python3.11/site-packages (from metpy->skyborn) (1.8.2)
Requirement already satisfied: pyproj>=3.0.0 in /opt/conda/lib/python3.11/site-packages (from metpy->skyborn) (3.5.0)
Requirement already satisfied: traitlets>=5.0.5 in /opt/conda/lib/python3.11/site-packages (from metpy->skyborn) (5.14.3)
Requirement already satisfied: pytz>=2020.1 in /opt/conda/lib/python3.11/site-packages (from pandas->skyborn) (2024.1)
Requirement already satisfied: tzdata>=2022.7 in /opt/conda/lib/python3.11/site-packages (from pandas->skyborn) (2024.2)
Requirement already satisfied: cftime in /opt/conda/lib/python3.11/site-packages (from netCDF4->skyborn) (1.6.4)
Requirement already satisfied: joblib>=1.2.0 in /opt/conda/lib/python3.11/site-packages (from scikit-learn->skyborn) (1.4.2)
Requirement already satisfied: threadpoolctl>=3.1.0 in /opt/conda/lib/python3.11/site-packages (from scikit-learn->skyborn) (3.5.0)
Requirement already satisfied: patsy>=0.5.6 in /opt/conda/lib/python3.11/site-packages (from statsmodels->skyborn) (1.0.1)
Requirement already satisfied: zipp>=3.20 in /opt/conda/lib/python3.11/site-packages (from importlib-metadata>=4.13.0->dask->skyborn) (3.21.0)
Requirement already satisfied: locket in /opt/conda/lib/python3.11/site-packages (from partd>=1.4.0->dask->skyborn) (1.0.0)
Requirement already satisfied: platformdirs>=2.1.0 in /opt/conda/lib/python3.11/site-packages (from pint>=0.17->metpy->skyborn) (4.3.6)
Requirement already satisfied: typing_extensions>=4.0.0 in /opt/conda/lib/python3.11/site-packages (from pint>=0.17->metpy->skyborn) (4.12.2)
Requirement already satisfied: flexcache>=0.3 in /opt/conda/lib/python3.11/site-packages (from pint>=0.17->metpy->skyborn) (0.3)
Requirement already satisfied: flexparser>=0.4 in /opt/conda/lib/python3.11/site-packages (from pint>=0.17->metpy->skyborn) (0.4)
Requirement already satisfied: requests>=2.19.0 in /opt/conda/lib/python3.11/site-packages (from pooch>=1.2.0->metpy->skyborn) (2.32.3)
Requirement already satisfied: certifi in /opt/conda/lib/python3.11/site-packages (from pyproj>=3.0.0->metpy->skyborn) (2024.12.14)
Requirement already satisfied: six>=1.5 in /opt/conda/lib/python3.11/site-packages (from python-dateutil>=2.7->matplotlib->skyborn) (1.17.0)
Requirement already satisfied: charset-normalizer<4,>=2 in /opt/conda/lib/python3.11/site-packages (from requests>=2.19.0->pooch>=1.2.0->metpy->skyborn) (3.4.0)
Requirement already satisfied: idna<4,>=2.5 in /opt/conda/lib/python3.11/site-packages (from requests>=2.19.0->pooch>=1.2.0->metpy->skyborn) (3.10)
Requirement already satisfied: urllib3<3,>=1.21.1 in /opt/conda/lib/python3.11/site-packages (from requests>=2.19.0->pooch>=1.2.0->metpy->skyborn) (2.2.3)
Installing collected packages: skyborn
Successfully installed skyborn-0.4.0
代码语言：javascript
复制
import skyborn as skb
print(f"Skyborn version: {skb.__version__}")
代码语言：javascript
复制
Skyborn version: 0.4.0

二、什么是 Skyborn 的"弯曲箭头"？

听到"弯曲箭头"，你可能会想到这样：

代码语言：javascript
复制
↗️ 或者 ↘️

但 Skyborn 的弯曲流线图是这样的：

代码语言：javascript
复制
〰️ 〰️ 〰️

↘️ ↙️ 〰️ 〰️ 它绘制的是矢量场的流线（streamlines），流线上带有指示风向的箭头。相比普通箭头，流线能更好地展示风场的连续性和演变趋势，是大气科学可视化的"标配"！

📚 **名词解释**：流线是某一时刻速度场中的一条曲线，曲线上每点的切线方向与该点的速度方向一致。简单说，就是"风的轨迹线"。

🆕 0.40 版本新特性：剖面弯曲箭头

之前的版本只能绘制平面（水平层）弯曲箭头。0.40 版本新增了 ncl_preset='profile' 参数支持，允许我们在垂直剖面（如纬度-高度剖面、经度-高度剖面）上绘制弯曲箭头，直观展示三维环流结构！

三、数据准备

本教程使用 ERA5 再分析数据，包含气压层上的 u、v、w、z、t、r、q 等变量。数据范围：

  • 时间：2023年8月2日 – 8月5日（6小时间隔）
  • 层次：1 hPa – 1000 hPa（37个气压层）
  • 区域：10°N–70°N，90°E–180°E
  • 分辨率：0.25°
代码语言：javascript
复制
import xarray as xr
import numpy as np
import matplotlib.pyplot as plt
import cartopy.crs as ccrs
import cartopy.feature as cfeature

# Load ERA5 data
ds = xr.open_dataset('/home/mw/input/era58091/ERA5-2023-08_pl.nc')

# Inspect data structure
print(ds)
print("\nTime range:", ds.time.values[0], "to", ds.time.values[-1])
print("Level range:", ds.level.values.min(), "hPa -", ds.level.values.max(), "hPa")
print("Spatial range: Lat", ds.latitude.values.min(), "°N to", ds.latitude.values.max(), "°N")
print("Spatial range: Lon", ds.longitude.values.min(), "°E to", ds.longitude.values.max(), "°E")
代码语言：javascript
复制
<xarray.Dataset> Size: 4GB
Dimensions:    (longitude: 361, latitude: 241, level: 37, time: 20)
Coordinates:
  * longitude  (longitude) float32 1kB 90.0 90.25 90.5 ... 179.5 179.8 180.0
  * latitude   (latitude) float32 964B 70.0 69.75 69.5 69.25 ... 10.5 10.25 10.0
  * level      (level) int32 148B 1 2 3 5 7 10 20 ... 875 900 925 950 975 1000
  * time       (time) datetime64[ns] 160B 2023-08-02 ... 2023-08-05T16:00:00
Data variables:
    z          (time, level, latitude, longitude) float64 515MB ...
    r          (time, level, latitude, longitude) float64 515MB ...
    t          (time, level, latitude, longitude) float64 515MB ...
    q          (time, level, latitude, longitude) float64 515MB ...
    u          (time, level, latitude, longitude) float64 515MB ...
    v          (time, level, latitude, longitude) float64 515MB ...
    w          (time, level, latitude, longitude) float64 515MB ...
Attributes:
    Conventions:  CF-1.6
    history:      2024-01-09 16:38:26 GMT by grib_to_netcdf-2.25.1: /opt/ecmw...

Time range: 2023-08-02T00:00:00.000000000 to 2023-08-05T16:00:00.000000000
Level range: 1 hPa - 1000 hPa
Spatial range: Lat 10.0 °N to 70.0 °N
Spatial range: Lon 90.0 °E to 180.0 °E
代码语言：javascript
复制
ds.z.min()
代码语言：javascript
复制
ds.level
代码语言：javascript
复制
from metpy.calc import vertical_velocity
from metpy.units import units
w = vertical_velocity(ds.w , ds.level, ds.t)

四、平面弯曲箭头绘制

⚠️ API 变化提醒：Skyborn 0.40 中，curved_quiver() 已更名为 curly_vector()。同时，当传入 xarray Dataset 时，请将 ds 作为第一个位置参数传入，不再支持 ds=... 关键字参数形式与 ax=... 混用。

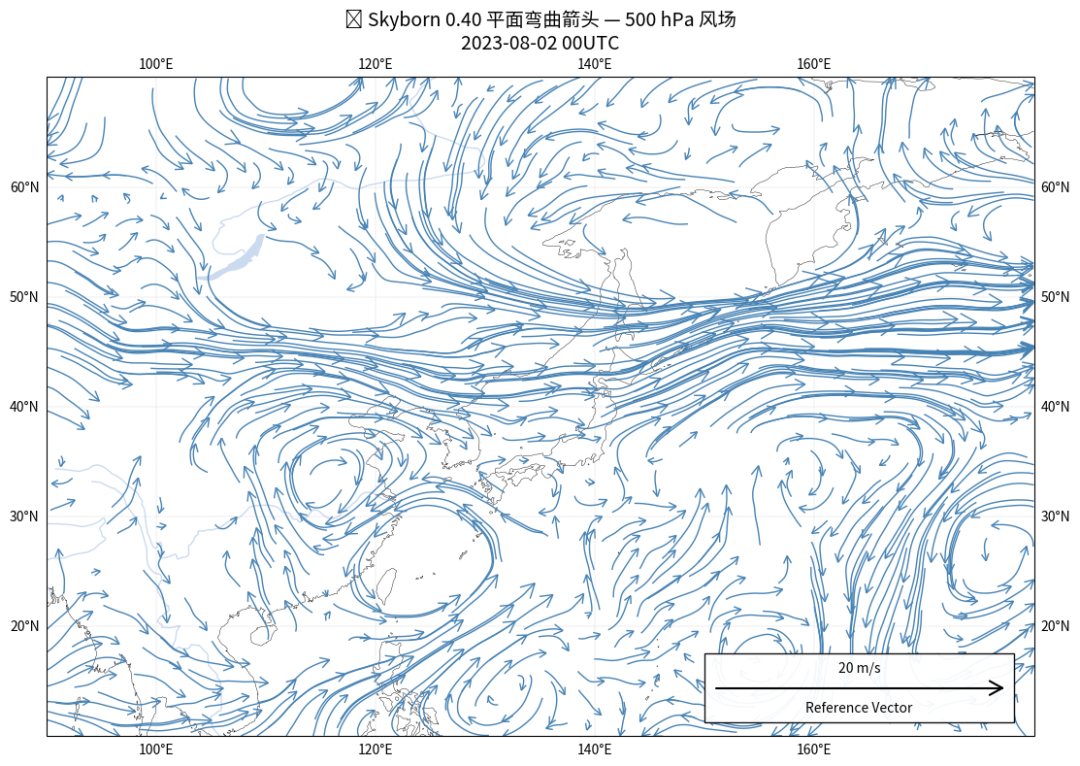

4.1 快速上手：绘制 500 hPa 风场

代码语言：javascript
复制
# Select 500 hPa, 2023-08-02 00UTC
ds_500 = ds.sel(level=500, time='2023-08-03T00:00:00.000000000', method='nearest')

fig, ax = plt.subplots(figsize=(12, 8), subplot_kw={'projection': ccrs.PlateCarree()})

# ✅ Skyborn 0.40 新 API：curly_vector
# ds 作为第一个位置参数传入
quiver_set = skb.plot.curly_vector(
    ds_500,              # xarray Dataset（第一个位置参数）
    x='longitude',
    y='latitude',
    u='u',
    v='v',
    density=1,           # 流线密度
    arrowsize=2,       # 箭头大小
    color='steelblue',
    ref_length=0.6,   # 流线颜色
    linewidth=1
)

# Add map features
ax.coastlines(resolution='50m', linewidth=0.3)
ax.add_feature(cfeature.LAKES, alpha=0.5)
ax.add_feature(cfeature.RIVERS, alpha=0.5)
ax.gridlines(draw_labels=True, linewidth=0.3, linestyle='--', alpha=0.7)

ax.set_extent([90, 180, 10, 70], crs=ccrs.PlateCarree())
ax.set_title('🌐 Skyborn 0.40 平面弯曲箭头 — 500 hPa 风场\n2023-08-02 00UTC', fontsize=14)

# Add reference arrow key (0.40 new feature)
skb.plot.curly_vector_key(quiver_set, U=20, units='m/s', loc='lower right')

plt.tight_layout()
plt.show()
代码语言：javascript
复制
/opt/conda/lib/python3.11/site-packages/cartopy/mpl/geoaxes.py:527: UserWarning: Glyph 127760 (\N{GLOBE WITH MERIDIANS}) missing from font(s) Source Han Sans SC.
  super()._update_title_position(renderer)
/opt/conda/lib/python3.11/site-packages/cartopy/mpl/geoaxes.py:527: UserWarning: Glyph 127760 (\N{GLOBE WITH MERIDIANS}) missing from font(s) Source Han Sans SC.
  super()._update_title_position(renderer)
/opt/conda/lib/python3.11/site-packages/cartopy/mpl/geoaxes.py:524: UserWarning: Glyph 127760 (\N{GLOBE WITH MERIDIANS}) missing from font(s) Source Han Sans SC.
  return super().draw(renderer=renderer, **kwargs)
output
output

output

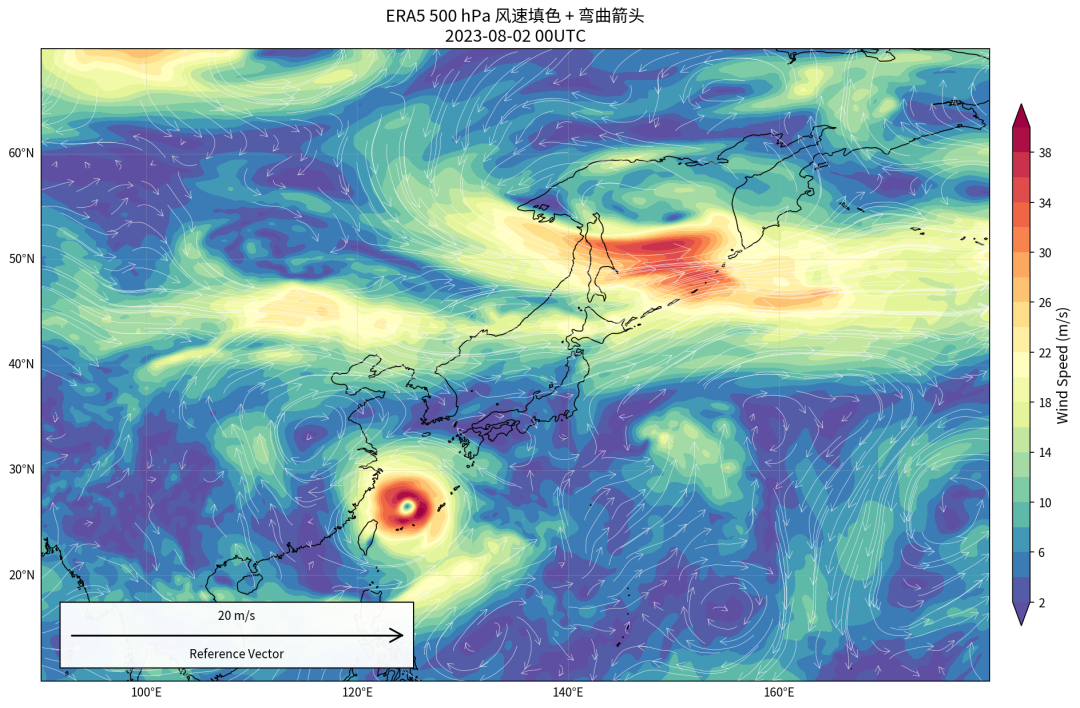

4.2 填色风场图：风速叠加弯曲箭头

将风速标量场作为填色背景，叠加弯曲箭头，信息密度更高：

代码语言：javascript
复制
fig, ax = plt.subplots(figsize=(14, 9), subplot_kw={'projection': ccrs.PlateCarree()}, dpi=150)

# Compute wind speed
u = ds_500['u']
v = ds_500['v']
spd = np.hypot(u, v)  # 风速标量

lon = ds_500.longitude.values
lat = ds_500.latitude.values

# Wind speed shading
cf = ax.contourf(lon, lat, spd, levels=20, cmap='Spectral_r', extend='both', transform=ccrs.PlateCarree())

# Overlay white curly vectors
quiver_set = skb.plot.curly_vector(
    ds_500,
    x='longitude',
    y='latitude',
    u='u',
    v='v',
    density=1,
    arrowsize=2,
    color='white',
    ref_length=0.6,
    linewidth=0.3,
)

# Map elements
ax.coastlines(resolution='50m', linewidth=0.8, color='black')
gl = ax.gridlines(draw_labels=True, linewidth=0.3, linestyle='--', alpha=0.7)
gl.top_labels = False
gl.right_labels = False

ax.set_extent([90, 180, 10, 70], crs=ccrs.PlateCarree())
ax.set_title('ERA5 500 hPa 风速填色 + 弯曲箭头\n2023-08-02 00UTC', fontsize=14)

# Colorbar
cbar = plt.colorbar(cf, ax=ax, shrink=0.7, pad=0.02, aspect=30)
cbar.set_label('Wind Speed (m/s)', fontsize=12)

# Reference arrow
skb.plot.curly_vector_key(quiver_set, U=20, units='m/s', loc='lower left')

plt.tight_layout()
plt.show()
output
output

output

五、剖面弯曲箭头绘制（0.40 新功能 ⭐）

这是 Skyborn 0.40 最令人兴奋的新能力！通过设置 ncl_preset='profile'，我们可以在垂直剖面上绘制弯曲箭头，直观展示经向环流、纬向环流等三维结构。

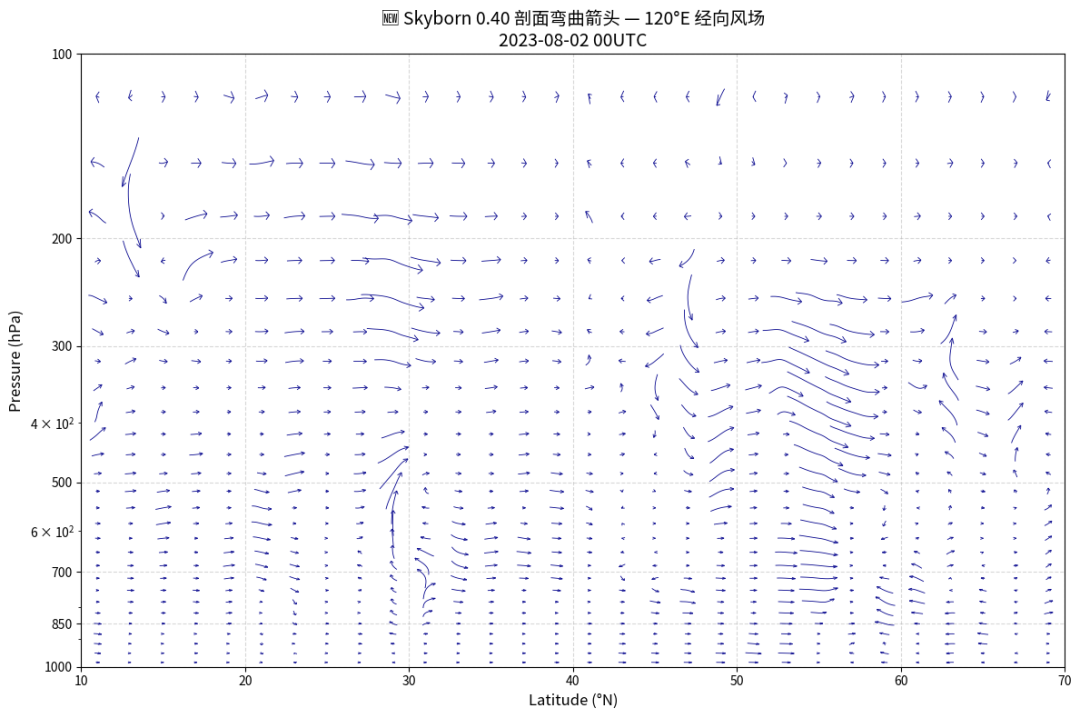

5.1 沿纬度-高度剖面（固定经度）

选取 120°E 经线，展示南北方向风场随高度的变化：

代码语言：javascript
复制
import metpy.calc as mpcalc
# Select 120°E profile, 2023-08-02 00UTC
ds_profile_lon = ds.sel(longitude=150, time='2023-08-02T00:00:00.000000000', method='nearest')

# Reverse levels so 1000 hPa is at bottom
ds_profile_lon = ds_profile_lon.isel(level=slice(None, None, -1))

# trans omega to w
ds_profile_lon['ww'] = mpcalc.vertical_velocity(
   ds_profile_lon['w'],
   ds_profile_lon['level'],
    ds_profile_lon['t']
) *1000

fig, ax = plt.subplots(figsize=(12, 8))

# Use ncl_preset='profile' for profile curly vectors
quiver_profile = skb.plot.curly_vector(
    ds_profile_lon,
    x='latitude',
    y='level',
    u='v',
    v='ww',
    density=1,
    arrowsize=1,
    color='darkblue',
    ncl_preset='profile',linewidth=0.6# ⭐ 关键参数：启用剖面预设
)

ax.set_yscale('log')
ax.invert_yaxis()
ax.set_ylim(1000, 100)
ax.set_xlim(10, 70)
ax.set_xlabel('Latitude (°N)', fontsize=12)
ax.set_ylabel('Pressure (hPa)', fontsize=12)
ax.set_title('🆕 Skyborn 0.40 剖面弯曲箭头 — 120°E 经向风场\n2023-08-02 00UTC', fontsize=14)
ax.grid(True, linestyle='--', alpha=0.5)

# Set y-axis ticks to common pressure levels
ax.set_yticks([1000, 850, 700, 500, 300, 200, 100])
ax.set_yticklabels(['1000', '850', '700', '500', '300', '200', '100'])

plt.tight_layout()
plt.show()
output
output

output

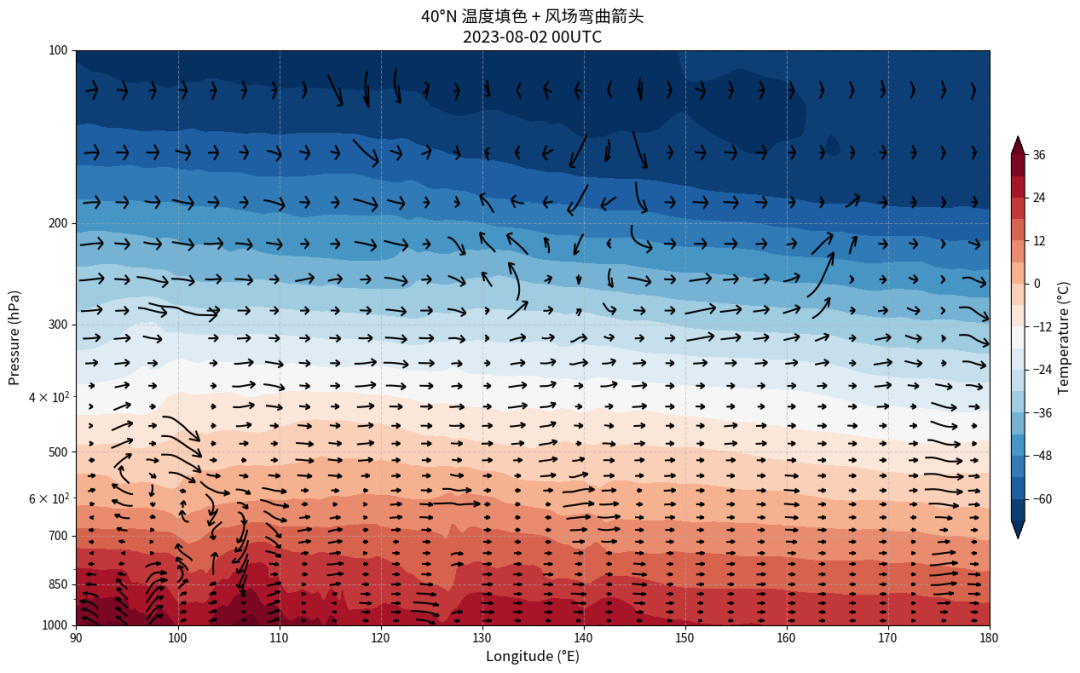

5.2 剖面填色 + 弯曲箭头叠加

将温度场作为填色背景，叠加风场弯曲箭头

代码语言：javascript
复制
fig, ax = plt.subplots(figsize=(14, 8))



lon_vals = ds_profile_lat.longitude.values
lev_vals = ds_profile_lat.level.values

# Temperature shading
t = ds_profile_lat['t'] - 273.15# Convert to °C
cf = ax.contourf(lon_vals, lev_vals, t, levels=20, cmap='RdBu_r', extend='both')

# Overlay curly vectors
quiver_overlay = skb.plot.curly_vector(
    ds_profile_lat,
    x='longitude',
    y='level',
    u='u',
    v='ww',
    density=1,
    arrowsize=1.5,
    color='black',
    ncl_preset='profile'
)

ax.set_yscale('log')
ax.invert_yaxis()
ax.set_ylim(1000, 100)
ax.set_xlim(90, 180)
ax.set_xlabel('Longitude (°E)', fontsize=12)
ax.set_ylabel('Pressure (hPa)', fontsize=12)
ax.set_title('40°N 温度填色 + 风场弯曲箭头\n2023-08-02 00UTC', fontsize=14)
ax.grid(True, linestyle='--', alpha=0.5)

ax.set_yticks([1000, 850, 700, 500, 300, 200, 100])
ax.set_yticklabels(['1000', '850', '700', '500', '300', '200', '100'])

cbar = plt.colorbar(cf, ax=ax, shrink=0.7, pad=0.02, aspect=30)
cbar.set_label('Temperature (°C)', fontsize=12)

plt.tight_layout()
plt.show()
output
output

output

六、核心参数速查表

Skyborn 0.40 curly_vector() 的常用参数整理如下：

参数

作用

调节技巧

ds

xarray 数据集

✅ 作为第一个位置参数传入

x

x 坐标变量名

如 'longitude'、'latitude'、'level'

y

y 坐标变量名

如 'latitude'、'level'

u

u 分量变量名

风的东西方向分量

v

v 分量变量名

风的南北/垂直方向分量

density

流线疏密

平面用 2-5；剖面用 2-4

linewidth

线宽

0.5-1.5 比较合适

arrowsize

箭头大小

0.8-1.5，根据整体比例调整

color

线条颜色

'steelblue'、'navy'、'white'

arrowstyle

箭头样式

'->' 空心线、'-

cmap

颜色映射

当 color 传入 2D 场时使用

alpha

透明度

0.3-1.0，叠加填色时建议 0.6-0.9

ncl_preset

NCL 预设模式

None（平面默认）或 'profile'（剖面）

integration_direction

积分方向

'forward'、'backward'、'both'

此外，0.40 新增的 curly_vector_key() 可用于在图上添加参考箭头图例，支持 U（参考风速）、units（单位）、loc（位置）等参数。

七、小结

Skyborn 0.40 的弯曲箭头功能在继承原有优点的基础上，实现了全面提升：

  • ✅ API 更名：curved_quiver() → curly_vector()，语义更清晰
  • ✅ 性能提升：更多计算下沉到原生层，Python 开销更低
  • ✅ 剖面支持：ncl_preset='profile' 让垂直剖面弯曲箭头成为可能
  • ✅ 图例工具：新增 curly_vector_key()，一键添加专业参考箭头

💡 小提示：弯曲箭头对数据格式要求较严格（需 xarray Dataset 或严格对齐的数组）。如果你的数据是非标准网格，建议先用 xarray 或 metpy 进行插值和坐标规范化处理。

屏幕前的你学会了吗？

本文参与 腾讯云自媒体同步曝光计划，分享自微信公众号。
原始发表：2026-05-19，如有侵权请联系 cloudcommunity@tencent.com 删除
可视化
数据
conda
python3
set

本文分享自 气python风雨 微信公众号，前往查看

如有侵权，请联系 cloudcommunity@tencent.com 删除。

本文参与 腾讯云自媒体同步曝光计划  ，欢迎热爱写作的你一起参与！

可视化
数据
conda
python3
set
评论
登录后参与评论
0 条评论
热度
最新
登录 后参与评论
推荐阅读
目录
  • 🌬️ Skyborn 0.40 弯曲箭头完全指南：从平面到剖面
    • 💬 写在前面
    • 🆕 Skyborn 0.40 更新了哪些内容？
      • ✨ New Features
      • 🔧 Improvements
      • 🗑️ Cleanup
    • 一、安装 Skyborn 0.40
    • 二、什么是 Skyborn 的"弯曲箭头"？
      • 🆕 0.40 版本新特性：剖面弯曲箭头
    • 三、数据准备
    • 四、平面弯曲箭头绘制
      • 4.1 快速上手：绘制 500 hPa 风场
      • 4.2 填色风场图：风速叠加弯曲箭头
    • 五、剖面弯曲箭头绘制（0.40 新功能 ⭐）
      • 5.1 沿纬度-高度剖面（固定经度）
      • 5.2 剖面填色 + 弯曲箭头叠加
    • 六、核心参数速查表
    • 七、小结
领券

腾讯云开发者

扫码关注腾讯云开发者

扫码关注腾讯云开发者

领取腾讯云代金券

热门产品

热门推荐

更多推荐

Copyright © 2013 - 2026 Tencent Cloud. All Rights Reserved. 腾讯云 版权所有

深圳市腾讯计算机系统有限公司 ICP备案/许可证号：粤B2-20090059 粤公网安备44030502008569号

腾讯云计算（北京）有限责任公司 京ICP证150476号 |  京ICP备11018762号

问题归档专栏文章快讯文章归档关键词归档开发者手册归档开发者手册 Section 归档

Copyright © 2013 - 2026 Tencent Cloud.

All Rights Reserved. 腾讯云 版权所有

登录 后参与评论
