AI-IDE 关键技术解析：从自然语言到企业级智能开发平台的架构演进

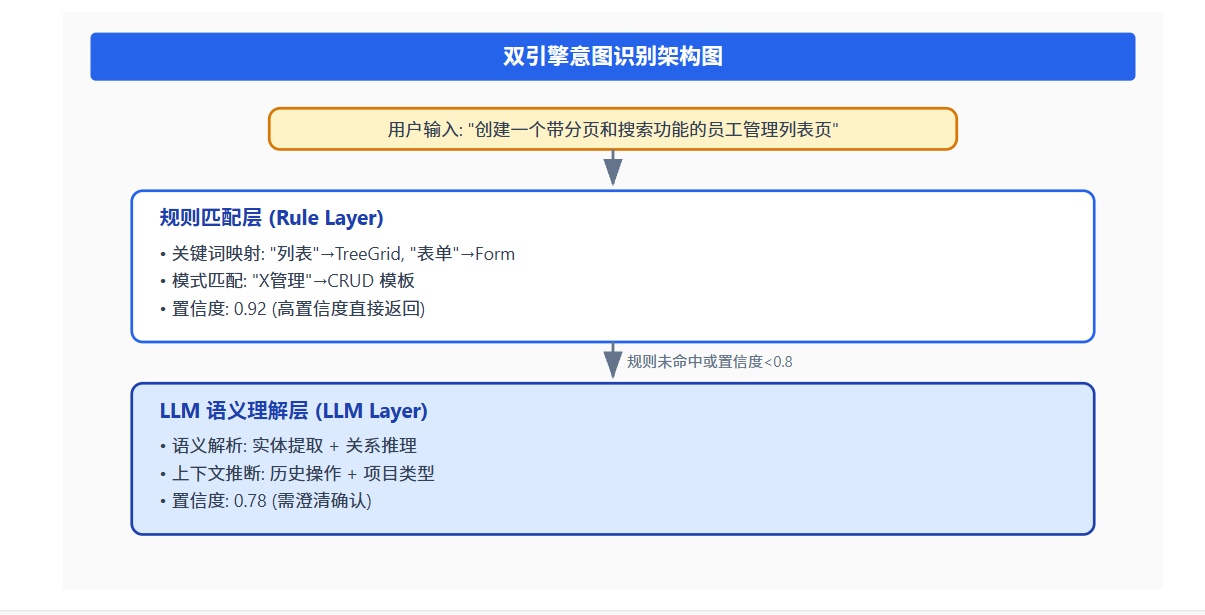

public class DomainModelExtractor {

    public DomainModel extract(String userInput, Intent intent) {
        DomainModel model = new DomainModel();

        // 1. 模块识别
        model.setModuleName(extractModuleName(userInput));

        // 2. 字段提取
        model.setFields(extractFields(userInput));

        // 3. 操作推断
        model.setOperations(inferOperations(userInput, intent));

        // 4. 关系识别
        model.setRelations(extractRelations(userInput));

        return model;
    }
}

{
  "componentType": "TreeGrid",
  "properties": {
    "dataUrl": "/api/employees",
    "columns": [
      { "field": "id", "caption": "ID", "width": 80 },
      { "field": "name", "caption": "姓名", "width": 120 },
      { "field": "department", "caption": "部门", "width": 150 }
    ]
  },
  "styles": {
    "cssClass": "employee-grid-theme",
    "striped": true,
    "hoverEffect": "highlight"
  },
  "events": {
    "onRowClick": "handleRowSelect",
    "onRowDoubleClick": "handleEdit"
  },
  "behaviors": {
    "apiCallers": [
      { "alias": "SEARCH", "url": "/api/employees/search" },
      { "alias": "SAVE", "url": "/api/employees/save" }
    ],
    "actions": [
      { "type": "CustomGridAction.RELOAD", "trigger": "afterSave" }
    ]
  }
}

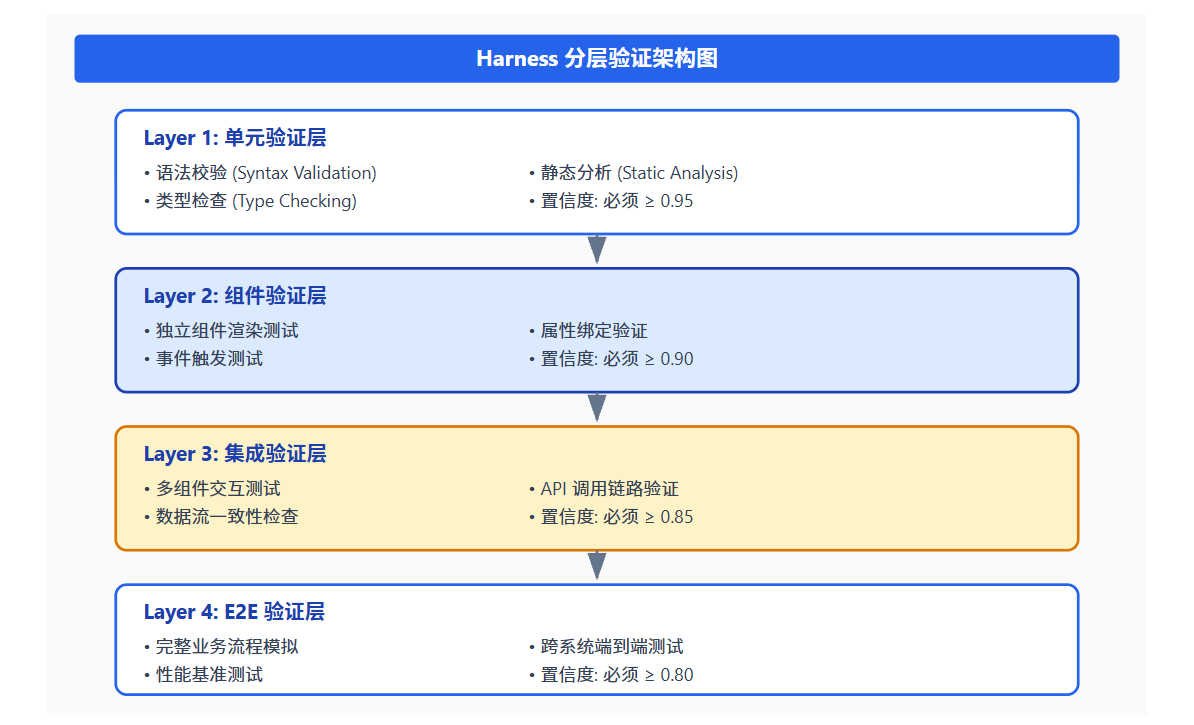

public interface PipelineStage<I, O> {
    ValidationResult validateInput(I input);
    StageResult<O> process(I input);
    ValidationResult validateOutput(O output);
    StageResult<O> fallback(I input, Throwable error);
}

public class DesignBridge {

    // 文本 → 可视化节点
    public VisualNode toVisualNode(ComponentModel model) {
        VisualNode node = new VisualNode();
        node.setType(model.getComponentType());
        node.setPosition(calculateLayout(model));
        node.setProperties(model.getProperties());

        // 递归处理子组件
        for (ComponentModel child : model.getChildren()) {
            node.addChild(toVisualNode(child));
        }

        return node;
    }

    // 可视化节点 → 文本
    public ComponentModel toComponentModel(VisualNode node) {
        // 逆向转换逻辑
    }
}

public class ConstrainedGenerator {
    public JSONObject generateWithSchema(String prompt, JsonSchema schema) {
        // 1. 将 Schema 注入 Prompt
        String constrainedPrompt = prompt + "\n输出必须符合以下 Schema:\n" + schema.toString();

        // 2. 调用 LLM
        String rawOutput = llmService.generate(constrainedPrompt);

        // 3. Schema 校验
        ValidationResult validation = schema.validate(rawOutput);
        if (!validation.isValid()) {
            // 4. 自动修复或降级
            return autoFixOrFallback(rawOutput, validation.getErrors());
        }

        return JSONObject.parse(rawOutput);
    }
}

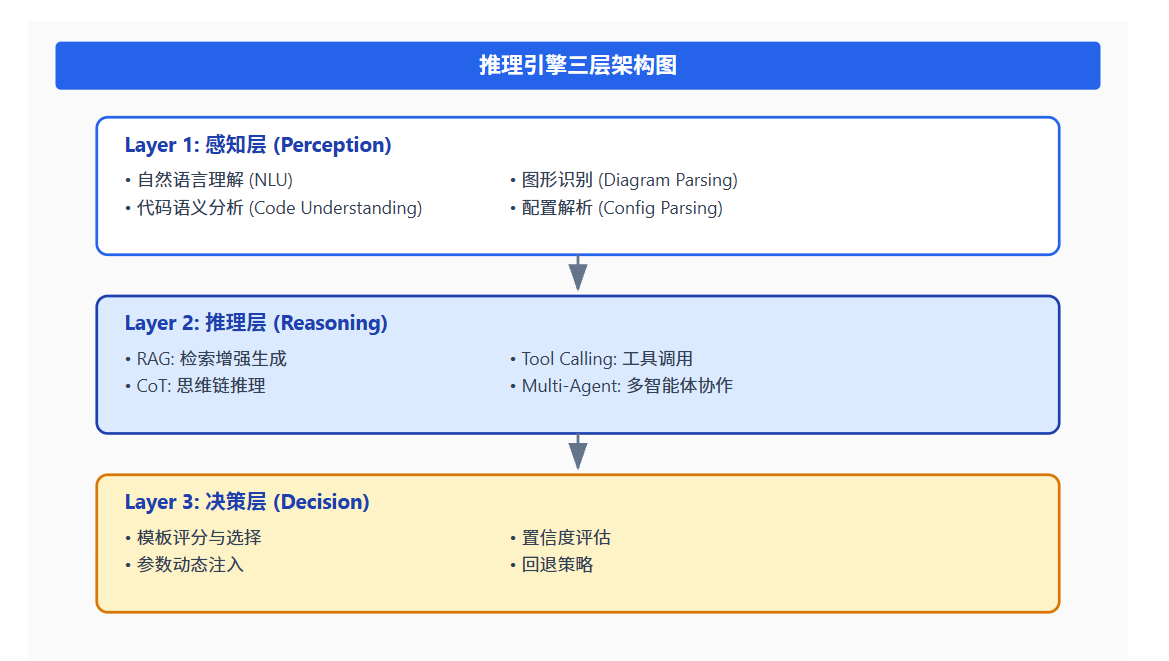

public class RAGReasoningEngine {

    public ReasoningResult reason(UserQuery query) {
        // 1. 查询理解
        QueryVector vector = embeddingModel.encode(query.getText());

        // 2. 知识检索
        List<KnowledgeChunk> chunks = vectorStore.similaritySearch(vector, TOP_K);

        // 3. 上下文构建
        String context = buildContext(query, chunks);

        // 4. 推理生成
        String reasoning = llmService.generateWithContext(query.getText(), context);

        // 5. 结果结构化
        return parseReasoningResult(reasoning);
    }
}

用户输入: "创建一个支持审批流程的请假表单"

CoT 推理过程:
1. 识别核心意图: CREATE_FORM (置信度: 0.95)
2. 识别附加需求: WORKFLOW_APPROVAL (置信度: 0.88)
3. 推断字段: [申请人, 请假类型, 开始日期, 结束日期, 请假原因, 审批人]
4. 推断操作: [提交申请, 审批通过, 审批拒绝, 查看进度]
5. 选择模板: FormWithWorkflowTemplate (匹配度: 0.91)
6. 参数注入: workflowType=SEQUENTIAL, approvalLevels=2

# 模板元数据示例
template:
  id: "spring-boot-crud-v2"
  name: "Spring Boot CRUD 模板"
  version: "2.1.0"
  techStack: ["Spring Boot 3.x", "MyBatis-Plus", "MySQL 8.0"]

  applicability:
    minConfidence: 0.75
    requiredIntents: ["CREATE_CRUD", "MANAGE_ENTITY"]
    forbiddenIntents: ["REALTIME", "STREAMING"]

  parameters:
    - name: "entityName"
      type: "string"
      required: true
      description: "实体类名"

    - name: "hasPagination"
      type: "boolean"
      default: true
      description: "是否开启分页"

  scoring:
    baseScore: 0.80
    intentMatchWeight: 0.40
    techStackMatchWeight: 0.30
    historyUsageWeight: 0.20
    userPreferenceWeight: 0.10

public class TemplateScoringEngine {

    public ScoredTemplate score(Template template, UserContext context, Intent intent) {
        double score = template.getBaseScore();

        // 1. 意图匹配度 (40%)
        double intentMatch = calculateIntentMatch(template, intent);
        score += intentMatch * 0.40;

        // 2. 技术栈匹配度 (30%)
        double techMatch = calculateTechStackMatch(template, context.getTechStack());
        score += techMatch * 0.30;

        // 3. 历史使用频率 (20%)
        double usageScore = calculateUsageScore(template, context.getUserId());
        score += usageScore * 0.20;

        // 4. 用户偏好 (10%)
        double preference = calculateUserPreference(template, context.getUserId());
        score += preference * 0.10;

        // 5. 惩罚因子
        if (template.isDeprecated()) score -= 0.30;
        if (template.getVersion().isOutdated()) score -= 0.20;

        return new ScoredTemplate(template, Math.min(1.0, Math.max(0.0, score)));
    }
}

文本描述 ──→ NLP Parser ──→ ┐
代码片段 ──→ AST Parser ──→ ┼→ 统一表示层 ──→ 推理引擎 ──→ 决策
UML 图形 ──→ Graph Parser ─→ ┘
配置文件 ──→ Config Parser ─→ ┘

public class ParameterInjector {

    public InjectedTemplate inject(Template template, DomainModel model) {
        Map<String, Object> parameters = new HashMap<>();

        // 1. 直接映射
        parameters.put("entityName", model.getModuleName());
        parameters.put("fields", model.getFields());

        // 2. 推断映射
        parameters.put("hasPagination", model.getFields().size() > 10);
        parameters.put("primaryKey", inferPrimaryKey(model.getFields()));

        // 3. 默认值填充
        for (TemplateParam param : template.getParameters()) {
            if (!parameters.containsKey(param.getName()) && param.hasDefault()) {
                parameters.put(param.getName(), param.getDefaultValue());
            }
        }

        // 4. 必填校验
        validateRequiredParameters(template, parameters);

        return new InjectedTemplate(template, parameters);
    }
}

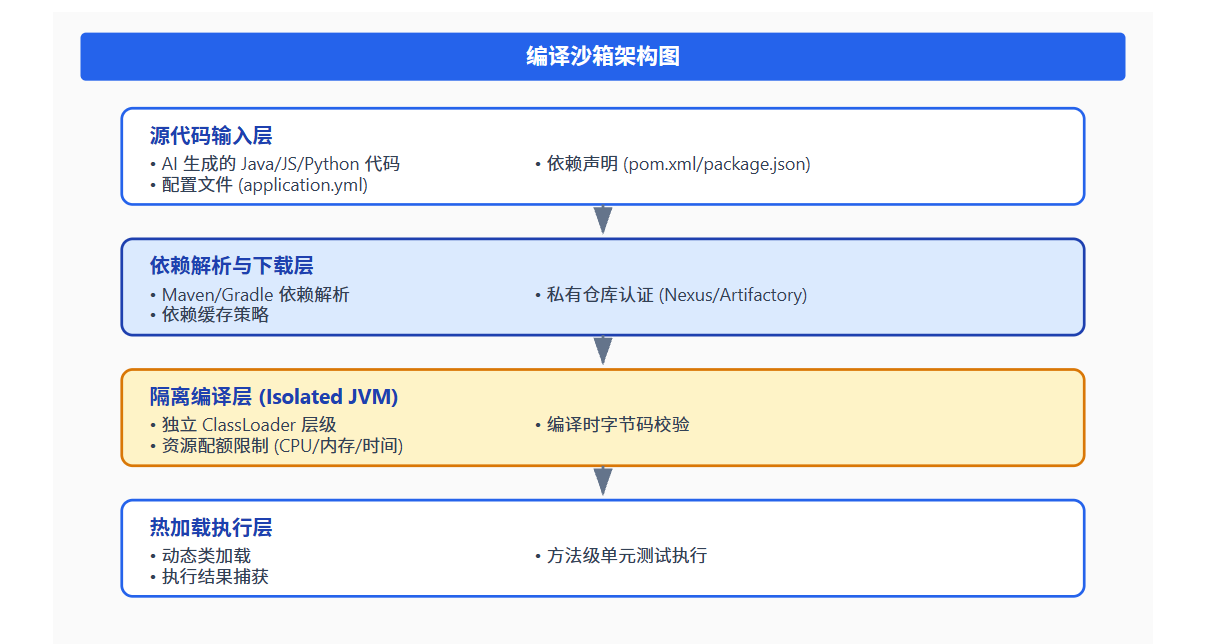

public class IsolatedCompiler {

    private final URLClassLoader isolatedClassLoader;
    private final JavaCompiler compiler;

    public CompilationResult compile(String sourceCode, List<String> dependencies) {
        // 1. 创建隔离的类加载器
        URL[] urls = dependencies.stream()
            .map(this::toUrl)
            .toArray(URL[]::new);

        try (URLClassLoader classLoader = new URLClassLoader(urls, getParentLoader())) {

            // 2. 准备编译任务
            StandardJavaFileManager fileManager = compiler.getStandardFileManager(null, null, null);
            JavaFileObject sourceFile = new InMemoryJavaFile("GeneratedClass", sourceCode);

            // 3. 设置编译选项
            List<String> options = Arrays.asList(
                "-classpath", buildClassPath(dependencies),
                "-d", tempOutputDir.getAbsolutePath()
            );

            // 4. 执行编译
            CompilationTask task = compiler.getTask(
                null, fileManager, diagnosticCollector, options, null, List.of(sourceFile)
            );

            boolean success = task.call();

            // 5. 返回结果
            return new CompilationResult(success, diagnosticCollector.getDiagnostics());

        } catch (Exception e) {
            return new CompilationResult(false, List.of(), e);
        }
    }
}

public class SecureSandbox {

    public SandboxResult executeInSandbox(CompiledClass clazz, SandboxConfig config) {
        // 1. 创建安全管理器
        SecurityManager securityManager = new RestrictiveSecurityManager(config);
        System.setSecurityManager(securityManager);

        // 2. 设置资源限制
        Thread executionThread = new Thread(() -> {
            try {
                // 3. 在隔离上下文中执行
                Object instance = clazz.newInstance();
                Method method = clazz.getMethod(config.getEntryMethod());
                Object result = method.invoke(instance, config.getParameters());

                // 4. 捕获结果
                context.setResult(result);
            } catch (Exception e) {
                context.setError(e);
            }
        });

        // 5. 设置超时
        executionThread.start();
        executionThread.join(config.getTimeoutMillis());

        if (executionThread.isAlive()) {
            executionThread.interrupt();
            return SandboxResult.timeout(config.getTimeoutMillis());
        }

        return context.toResult();
    }
}

public class IncrementalCompiler {

    private final Map<String, Long> compiledChecksums = new ConcurrentHashMap<>();

    public CompilationResult compileIncrementally(List<SourceFile> files) {
        List<SourceFile> changedFiles = files.stream()
            .filter(f -> isChanged(f))
            .collect(Collectors.toList());

        if (changedFiles.isEmpty()) {
            return CompilationResult.cached();
        }

        // 1. 分析变更影响范围
        Set<String> affectedClasses = analyzeImpact(changedFiles);

        // 2. 仅编译受影响文件
        CompilationResult result = compile(affectedClasses);

        // 3. 更新校验和
        changedFiles.forEach(f -> compiledChecksums.put(f.getPath(), f.getChecksum()));

        return result;
    }

    private boolean isChanged(SourceFile file) {
        Long lastChecksum = compiledChecksums.get(file.getPath());
        return lastChecksum == null || lastChecksum != file.getChecksum();
    }
}

{
  "protocolVersion": "1.0",
  "skillId": "skill-crud-generator-001",
  "name": "CRUD 代码生成器",
  "description": "根据实体定义生成完整的增删改查代码",
  "version": "2.3.1",

  "provider": {
    "agentId": "agent-codegen-01",
    "endpoint": "http://codegen.internal:8080",
    "capabilities": ["java", "spring-boot", "mybatis"]
  },

  "inputSchema": {
    "type": "object",
    "required": ["entityName", "fields"],
    "properties": {
      "entityName": { "type": "string" },
      "fields": { "type": "array", "items": { "$ref": "#/definitions/Field" } }
    }
  },

  "outputSchema": {
    "type": "object",
    "properties": {
      "entityCode": { "type": "string" },
      "serviceCode": { "type": "string" },
      "controllerCode": { "type": "string" }
    }
  },

  "qos": {
    "timeoutMs": 30000,
    "retryPolicy": "EXPONENTIAL_BACKOFF",
    "maxRetries": 3
  }
}

public interface P2AProtocol {

    // 用户发起交互
    InteractionResult interact(UserInput input, SessionContext context);

    // 系统主动澄清
    ClarificationRequest requestClararation(Ambiguity ambiguity);

    // 渐进式披露
    DisclosureLevel determineDisclosureLevel(double confidence, UserPreference preference);

    // 上下文同步
    void syncContext(SessionContext context);
}

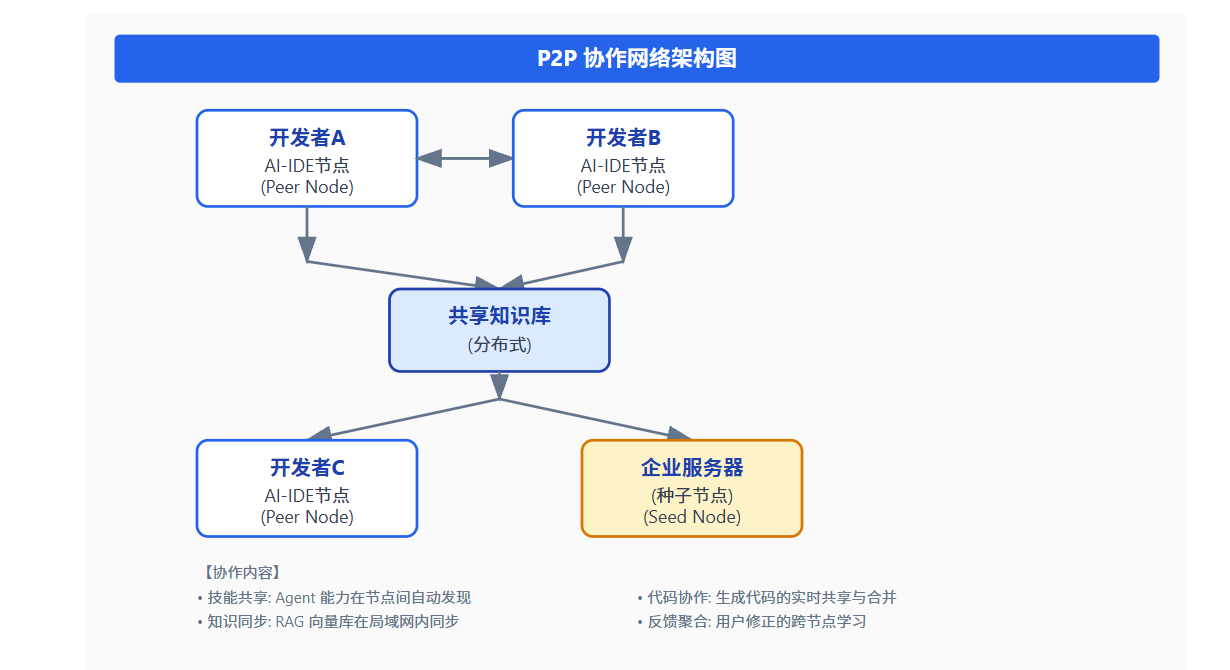

public class P2PCollaborationManager {

    // 节点发现
    public List<PeerNode> discoverPeers() {
        // mDNS 广播 + 注册中心查询
        return peerDiscoveryService.findPeers();
    }

    // 技能共享
    public void shareSkill(SkillCard skill, PeerNode target) {
        SkillShareMessage message = new SkillShareMessage(skill);
        message.sign(privateKey);  // 数字签名防篡改
        transport.send(target, message);
    }

    // 知识同步
    public void syncKnowledge(KnowledgeBase local, PeerNode peer) {
        KnowledgeDelta delta = local.diff(peer.getKnowledgeVersion());
        if (!delta.isEmpty()) {
            transport.send(peer, new KnowledgeSyncMessage(delta));
        }
    }

    // 共识机制（用于共享反馈学习）
    public boolean reachConsensus(FeedbackEvent event, List<PeerNode> peers) {
        // 简单多数共识
        int approvals = peers.stream()
            .mapToInt(p -> p.validateFeedback(event) ? 1 : 0)
            .sum();
        return approvals > peers.size() / 2;
    }
}

public class AgentOrchestrator {

    public WorkflowResult executeWorkflow(WorkflowDefinition workflow, Context context) {
        WorkflowResult result = new WorkflowResult();

        for (WorkflowStep step : workflow.getSteps()) {
            // 1. 发现可用 Agent
            List<Agent> candidates = agentRegistry.findAgents(step.getRequiredCapabilities());

            // 2. 选择最优 Agent
            Agent selected = agentSelector.select(candidates, step, context);

            // 3. 执行（带熔断保护）
            try {
                CircuitBreaker cb = circuitBreakerManager.getBreaker(selected.getId());
                StepOutput output = cb.execute(() -> selected.execute(step.getInput(), context));
                result.addStepOutput(step.getId(), output);
            } catch (CircuitBreakerOpenException e) {
                // 熔断开启，尝试备用 Agent
                Agent fallback = agentSelector.selectFallback(candidates, selected);
                StepOutput output = fallback.execute(step.getInput(), context);
                result.addStepOutput(step.getId(), output);
            }

            // 4. 上下文传递
            context.mergeOutput(step.getId(), output);
        }

        return result;
    }
}

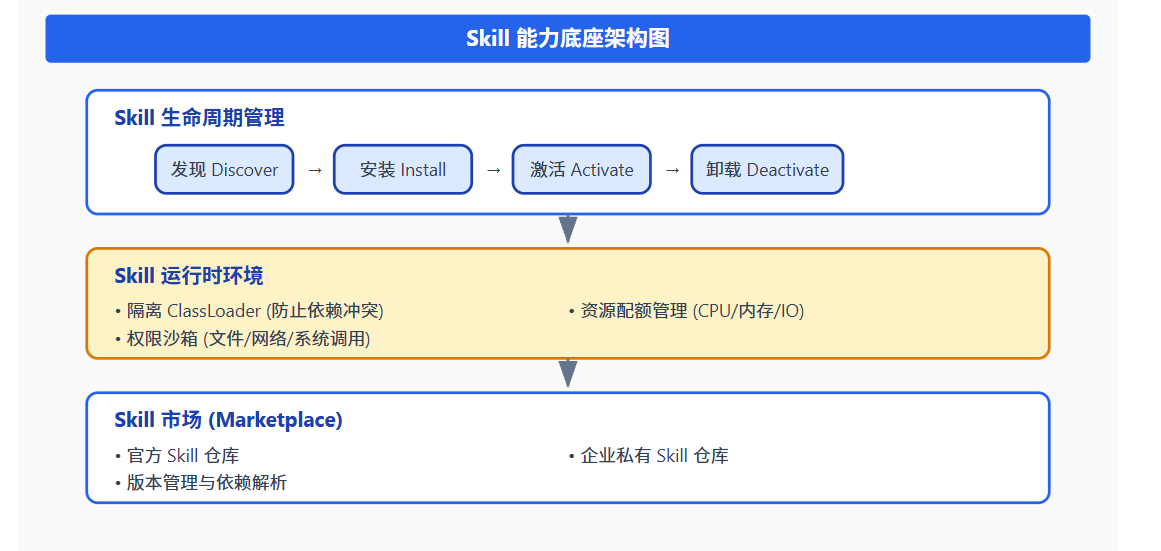

public interface Skill {
    // 元数据
    SkillMetadata getMetadata();

    // 能力声明
    List<Capability> getCapabilities();

    // 执行入口
    SkillResult execute(SkillContext context, Map<String, Object> parameters);

    // 生命周期回调
    default void onInstall() {}
    default void onActivate() {}
    default void onDeactivate() {}
    default void onUninstall() {}
}

public class SkillMetadata {
    private String skillId;
    private String name;
    private String version;
    private String author;
    private List<String> dependencies;  // 依赖的其他 Skill
    private List<String> permissions;   // 所需权限
}

源代码/配置 ──→ 解析器 ──→ 中间表示 (IR) ──→ 布局引擎 ──→ 渲染器 ──→ SVG/Canvas

public class HarnessResult<T> {
    private final T data;                    // 实际数据
    private final double confidence;         // 置信度 0.0-1.0
    private final String source;             // 来源: SKILL / LLM / RULE / HYBRID
    private final List<String> harnessLog;   // 驾驭日志
    private final boolean requiresReview;    // 是否需要人工复核
    private final List<String> suggestions;  // 改进建议
    private final DisclosureLevel disclosureLevel; // 披露级别

    public boolean isReliable() {
        return confidence >= 0.85;
    }

    public boolean needsClarification() {
        return confidence < 0.60;
    }
}

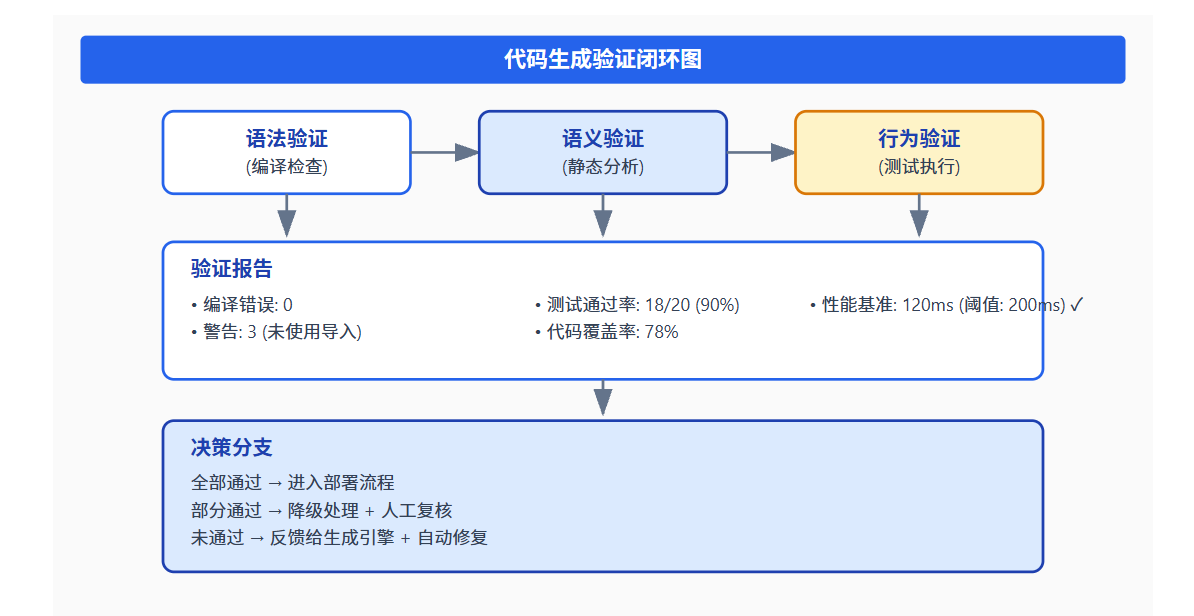

public class AITestGenerator {

    // 根据生成的代码自动推导测试用例
    public List<TestCase> generateTestCases(GeneratedCode code, TestLevel level) {
        List<TestCase> cases = new ArrayList<>();

        switch (level) {
            case UNIT:
                // 为每个 public 方法生成边界值测试
                for (Method method : code.getPublicMethods()) {
                    cases.addAll(generateBoundaryTests(method));
                    cases.addAll(generateNullTests(method));
                }
                break;

            case INTEGRATION:
                // 为组件交互生成集成测试
                for (ComponentInteraction interaction : code.getInteractions()) {
                    cases.add(generateIntegrationTest(interaction));
                }
                break;

            case E2E:
                // 基于用户意图生成端到端测试
                cases.add(generateE2ETest(code.getOriginalIntent()));
                break;
        }

        return cases;
    }
}

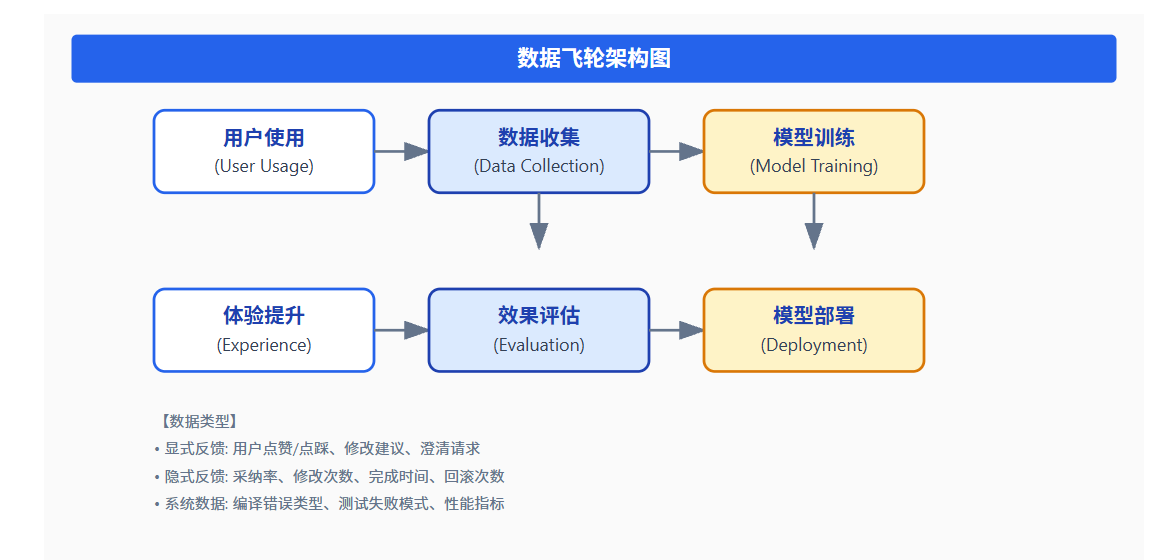

public class DataFlywheel {

    private final FeedbackCollector collector;
    private final TrainingDataBuilder builder;
    private final ModelFineTuner fineTuner;
    private final EffectivenessEvaluator evaluator;

    public void processFeedback(FeedbackEvent event) {
        // 1. 收集反馈
        collector.collect(event);

        // 2. 构建训练数据
        TrainingSample sample = builder.build(event);

        // 3. 触发训练（当积累足够数据时）
        if (shouldTriggerTraining()) {
            FineTuningJob job = fineTuner.submit(getRecentSamples(BATCH_SIZE));

            // 4. 评估效果
            EvaluationResult result = evaluator.evaluate(job.getModelId());

            // 5. 决策：部署或回滚
            if (result.getImprovement() > DEPLOYMENT_THRESHOLD) {
                deployModel(job.getModelId());
            } else {
                log.info("模型改进不足，跳过部署: {}" , result.getImprovement());
            }
        }
    }

    private boolean shouldTriggerTraining() {
        return collector.getPendingCount() >= MIN_BATCH_SIZE
            && timeSinceLastTraining() >= MIN_INTERVAL_HOURS;
    }
}

public class ABTestFramework {

    public void runExperiment(ExperimentDefinition exp) {
        // 1. 流量分配
        TrafficSplitter splitter = new TrafficSplitter(exp.getTrafficPercentage());

        // 2. 对照组与实验组
        for (UserRequest request : incomingRequests) {
            Variant variant = splitter.assign(request.getUserId());

            AIModel model = variant.isControl()
                ? modelRegistry.getBaseline()
                : modelRegistry.getExperiment(exp.getModelId());

            // 3. 执行并记录
            GenerationResult result = model.generate(request);
            metrics.record(variant, result, request);
        }

        // 4. 统计分析
        ExperimentReport report = analyzeResults(exp);
        if (report.isStatisticallySignificant() && report.isPositive()) {
            promoteToBaseline(exp.getModelId());
        }
    }
}
