代码实战 | ECMWF官方出品，一个Python库通吃GRIB、NetCDF等气象数据格式

作者头像
用户11172986
发布于 2026-06-08 14:44:43
发布于 2026-06-08 14:44:43
480
举报
文章被收录于专栏：气python风雨气python风雨

代码实战 | ECMWF官方出品，一个Python库通吃GRIB、NetCDF等气象数据格式

我们之前介绍过含有多种插值方法的earthkit-grid，今天我们说一下它的bro，用于获取与读数据的erathkit-data。

earthkit-data 是由 ECMWF（欧洲中期天气预报中心）主导开发的开源 Python 库，专注于气象与气候科学领域的数据访问与处理。

它最大的特点是 format-agnostic（格式无关）：同一套 API 可以同时处理 GRIB、NetCDF、BUFR 等多种格式，而无需关心底层细节。

核心设计理念包括：

  • 统一入口：所有数据源都通过 from_source() 方法加载
  • 惰性加载（Lazy Loading）：默认只将当前需要的字段保留在内存中，轻松处理超大文件
  • 流式支持：URL 和 FDB 等来源可直接流式读取，无需先落盘
  • 缓存机制：远程数据可自动缓存到本地，支持高度自定义
  • 插件扩展：用户可以自定义数据源并作为插件发布
  • GPU Ready：底层设计已考虑 GPU 计算，未来计划支持 PyTorch 张量

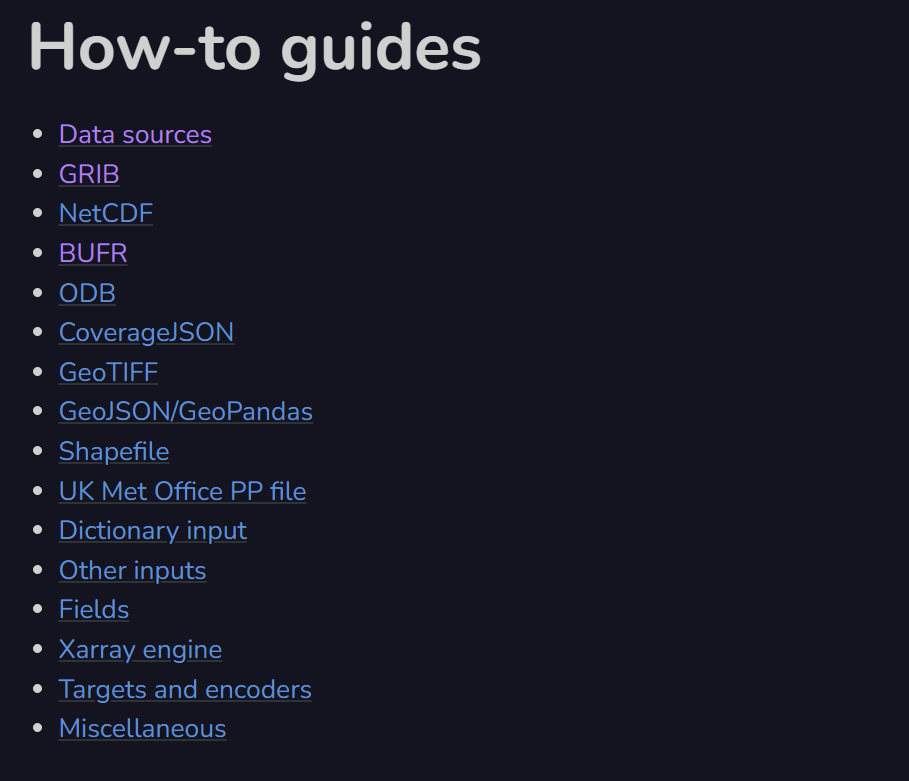

这是官网的教程列表，可见已支持了大多数气象数据的格式

以下内容仅测试读取gfs的grib数据，其余数据请自行测试

代码语言：javascript
复制
!pip install earthkit-data -i https://pypi.mirrors.ustc.edu.cn/simple/
代码语言：javascript
复制
Looking in indexes: https://pypi.mirrors.ustc.edu.cn/simple/
Requirement already satisfied: earthkit-data in /opt/conda/lib/python3.11/site-packages (0.20.0)
Requirement already satisfied: cfgrib>=0.9.10.1 in /opt/conda/lib/python3.11/site-packages (from earthkit-data) (0.9.14.1)
Requirement already satisfied: dask in /opt/conda/lib/python3.11/site-packages (from earthkit-data) (2024.8.1)
Requirement already satisfied: deprecation in /opt/conda/lib/python3.11/site-packages (from earthkit-data) (2.1.0)
Requirement already satisfied: earthkit-utils<0.99,>=0.2 in /opt/conda/lib/python3.11/site-packages (from earthkit-data) (0.3.0)
Requirement already satisfied: eccodes>=1.7 in /opt/conda/lib/python3.11/site-packages (from earthkit-data) (2.47.0)
Requirement already satisfied: entrypoints in /opt/conda/lib/python3.11/site-packages (from earthkit-data) (0.4)
Requirement already satisfied: filelock in /opt/conda/lib/python3.11/site-packages (from earthkit-data) (3.29.1)
Requirement already satisfied: jinja2 in /opt/conda/lib/python3.11/site-packages (from earthkit-data) (3.1.4)
Requirement already satisfied: jsonschema in /opt/conda/lib/python3.11/site-packages (from earthkit-data) (4.23.0)
Requirement already satisfied: lru-dict in /opt/conda/lib/python3.11/site-packages (from earthkit-data) (1.4.1)
Requirement already satisfied: markdown in /opt/conda/lib/python3.11/site-packages (from earthkit-data) (3.6)
Requirement already satisfied: multiurl>=0.3.3 in /opt/conda/lib/python3.11/site-packages (from earthkit-data) (0.3.7)
Requirement already satisfied: netcdf4 in /opt/conda/lib/python3.11/site-packages (from earthkit-data) (1.6.3)
Requirement already satisfied: pandas in /opt/conda/lib/python3.11/site-packages (from earthkit-data) (2.2.3)
Requirement already satisfied: pdbufr>=0.11 in /opt/conda/lib/python3.11/site-packages (from earthkit-data) (0.14.2)
Requirement already satisfied: pyyaml in /opt/conda/lib/python3.11/site-packages (from earthkit-data) (6.0.2)
Requirement already satisfied: tqdm>=4.63 in /opt/conda/lib/python3.11/site-packages (from earthkit-data) (4.67.0)
Requirement already satisfied: xarray>=0.19 in /opt/conda/lib/python3.11/site-packages (from earthkit-data) (2024.3.0)
Requirement already satisfied: attrs>=19.2 in /opt/conda/lib/python3.11/site-packages (from cfgrib>=0.9.10.1->earthkit-data) (24.3.0)
Requirement already satisfied: click in /opt/conda/lib/python3.11/site-packages (from cfgrib>=0.9.10.1->earthkit-data) (8.1.7)
Requirement already satisfied: numpy in /opt/conda/lib/python3.11/site-packages (from cfgrib>=0.9.10.1->earthkit-data) (1.26.4)
Requirement already satisfied: array-api-compat in /opt/conda/lib/python3.11/site-packages (from earthkit-utils<0.99,>=0.2->earthkit-data) (1.14.0)
Requirement already satisfied: pint in /opt/conda/lib/python3.11/site-packages (from earthkit-utils<0.99,>=0.2->earthkit-data) (0.24.4)
Requirement already satisfied: cffi in /opt/conda/lib/python3.11/site-packages (from eccodes>=1.7->earthkit-data) (1.17.1)
Requirement already satisfied: findlibs in /opt/conda/lib/python3.11/site-packages (from eccodes>=1.7->earthkit-data) (0.0.5)
Requirement already satisfied: eccodeslib in /opt/conda/lib/python3.11/site-packages (from eccodes>=1.7->earthkit-data) (2.47.1.20)
Requirement already satisfied: requests in /opt/conda/lib/python3.11/site-packages (from multiurl>=0.3.3->earthkit-data) (2.32.3)
Requirement already satisfied: pytz in /opt/conda/lib/python3.11/site-packages (from multiurl>=0.3.3->earthkit-data) (2024.1)
Requirement already satisfied: python-dateutil in /opt/conda/lib/python3.11/site-packages (from multiurl>=0.3.3->earthkit-data) (2.9.0.post0)
Requirement already satisfied: packaging>=22 in /opt/conda/lib/python3.11/site-packages (from xarray>=0.19->earthkit-data) (24.1)
Requirement already satisfied: tzdata>=2022.7 in /opt/conda/lib/python3.11/site-packages (from pandas->earthkit-data) (2024.2)
Requirement already satisfied: cloudpickle>=3.0.0 in /opt/conda/lib/python3.11/site-packages (from dask->earthkit-data) (3.1.0)
Requirement already satisfied: fsspec>=2021.09.0 in /opt/conda/lib/python3.11/site-packages (from dask->earthkit-data) (2025.2.0)
Requirement already satisfied: partd>=1.4.0 in /opt/conda/lib/python3.11/site-packages (from dask->earthkit-data) (1.4.2)
Requirement already satisfied: toolz>=0.10.0 in /opt/conda/lib/python3.11/site-packages (from dask->earthkit-data) (1.0.0)
Requirement already satisfied: importlib-metadata>=4.13.0 in /opt/conda/lib/python3.11/site-packages (from dask->earthkit-data) (8.5.0)
Requirement already satisfied: MarkupSafe>=2.0 in /opt/conda/lib/python3.11/site-packages (from jinja2->earthkit-data) (3.0.2)
Requirement already satisfied: jsonschema-specifications>=2023.03.6 in /opt/conda/lib/python3.11/site-packages (from jsonschema->earthkit-data) (2024.10.1)
Requirement already satisfied: referencing>=0.28.4 in /opt/conda/lib/python3.11/site-packages (from jsonschema->earthkit-data) (0.35.1)
Requirement already satisfied: rpds-py>=0.7.1 in /opt/conda/lib/python3.11/site-packages (from jsonschema->earthkit-data) (0.22.3)
Requirement already satisfied: cftime in /opt/conda/lib/python3.11/site-packages (from netcdf4->earthkit-data) (1.6.4)
Requirement already satisfied: zipp>=3.20 in /opt/conda/lib/python3.11/site-packages (from importlib-metadata>=4.13.0->dask->earthkit-data) (3.21.0)
Requirement already satisfied: locket in /opt/conda/lib/python3.11/site-packages (from partd>=1.4.0->dask->earthkit-data) (1.0.0)
Requirement already satisfied: six>=1.5 in /opt/conda/lib/python3.11/site-packages (from python-dateutil->multiurl>=0.3.3->earthkit-data) (1.17.0)
Requirement already satisfied: pycparser in /opt/conda/lib/python3.11/site-packages (from cffi->eccodes>=1.7->earthkit-data) (2.22)
Requirement already satisfied: eckitlib==2.0.7.20 in /opt/conda/lib/python3.11/site-packages (from eccodeslib->eccodes>=1.7->earthkit-data) (2.0.7.20)
Requirement already satisfied: platformdirs>=2.1.0 in /opt/conda/lib/python3.11/site-packages (from pint->earthkit-utils<0.99,>=0.2->earthkit-data) (4.3.6)
Requirement already satisfied: typing_extensions>=4.0.0 in /opt/conda/lib/python3.11/site-packages (from pint->earthkit-utils<0.99,>=0.2->earthkit-data) (4.12.2)
Requirement already satisfied: flexcache>=0.3 in /opt/conda/lib/python3.11/site-packages (from pint->earthkit-utils<0.99,>=0.2->earthkit-data) (0.3)
Requirement already satisfied: flexparser>=0.4 in /opt/conda/lib/python3.11/site-packages (from pint->earthkit-utils<0.99,>=0.2->earthkit-data) (0.4)
Requirement already satisfied: charset-normalizer<4,>=2 in /opt/conda/lib/python3.11/site-packages (from requests->multiurl>=0.3.3->earthkit-data) (3.4.0)
Requirement already satisfied: idna<4,>=2.5 in /opt/conda/lib/python3.11/site-packages (from requests->multiurl>=0.3.3->earthkit-data) (3.10)
Requirement already satisfied: urllib3<3,>=1.21.1 in /opt/conda/lib/python3.11/site-packages (from requests->multiurl>=0.3.3->earthkit-data) (2.2.3)
Requirement already satisfied: certifi>=2017.4.17 in /opt/conda/lib/python3.11/site-packages (from requests->multiurl>=0.3.3->earthkit-data) (2024.12.14)

1. 安装

环境要求 Python ≥ 3.10。

基础安装仅包含核心功能，建议根据需求选择以下方式：

代码语言：javascript
复制
# 基础安装
# !pip install earthkit-data

# 安装全部可选依赖（推荐，支持 GRIB/NetCDF/BUFR/FDB 等所有格式）
# !pip install earthkit-data[all]

# 或按需安装特定格式支持
# !pip install earthkit-data[grib]      # GRIB 格式
# !pip install earthkit-data[netcdf]    # NetCDF 格式
# !pip install earthkit-data[bufr]      # BUFR 格式
# !pip install earthkit-data[fdb]       # FDB (Fields DataBase) 支持
# !pip install earthkit-data[polytope]  # Polytope API 支持

2. 核心入口：from_source

earthkit.data.from_source(<type>, <args>) 是整个库最核心的入口方法。通过统一的方式从各种来源加载数据。

支持的常见 type 包括：

类型

说明

示例场景

sample

内置示例数据

快速体验、测试

file

本地文件

读取本地 GRIB/NetCDF

url

远程 URL

下载在线数据，支持 tar.gz 自动解压

stream

数据流

处理标准输入或网络流

fdb

ECMWF FDB

从 Fields DataBase 读取

mars

MARS 服务

通过 ECMWF MARS 远程访问

cds

CDS API

从 Copernicus Climate Data Store 获取

polytope

Polytope

通过 Polytope 服务访问数据

dummy-source

虚拟数据源

生成测试用的假数据

代码语言：javascript
复制
import earthkit.data as ekd

ds = ekd.from_source("file", "/home/mw/input/GFS1824/gfs_4_20230902_0000_021.grb2")
print("类型:", type(ds))
print("字段数:", len(ds))
代码语言：javascript
复制
类型: <class 'earthkit.data.readers.grib.file.GRIBReader'>
字段数: 743
代码语言：javascript
复制
/opt/conda/lib/python3.11/site-packages/gribapi/__init__.py:23: UserWarning: ecCodes 2.42.0 or higher is recommended. You are running version 2.29.0
  warnings.warn(
代码语言：javascript
复制
# 从 URL 加载（支持 tar.gz 自动解压）
url = "https://get.ecmwf.int/repository/test-data/earthkit-data/examples/test_gribs.tar.gz"
ds_url = ekd.from_source("url", url)
print("从 URL 加载后的类型:", type(ds_url))
print("字段数:", len(ds_url))
代码语言：javascript
复制
test_gribs.tar.gz:   0%|          | 0.00/463k [00:00<?, ?B/s]
代码语言：javascript
复制
  0%|          | 0/2 [00:00<?, ?it/s]
代码语言：javascript
复制
从 URL 加载后的类型: <class 'earthkit.data.readers.grib.index.GribMultiFieldList'>
字段数: 6

3. 元数据查看

GRIB 和适当的 NetCDF 文件在 earthkit-data 中被表示为 FieldList（字段列表），每个元素是一个 Field（水平切片，代表某一时刻、某一层的某个气象变量）。

以下方法可以快速了解数据的整体概况：

代码语言：javascript
复制

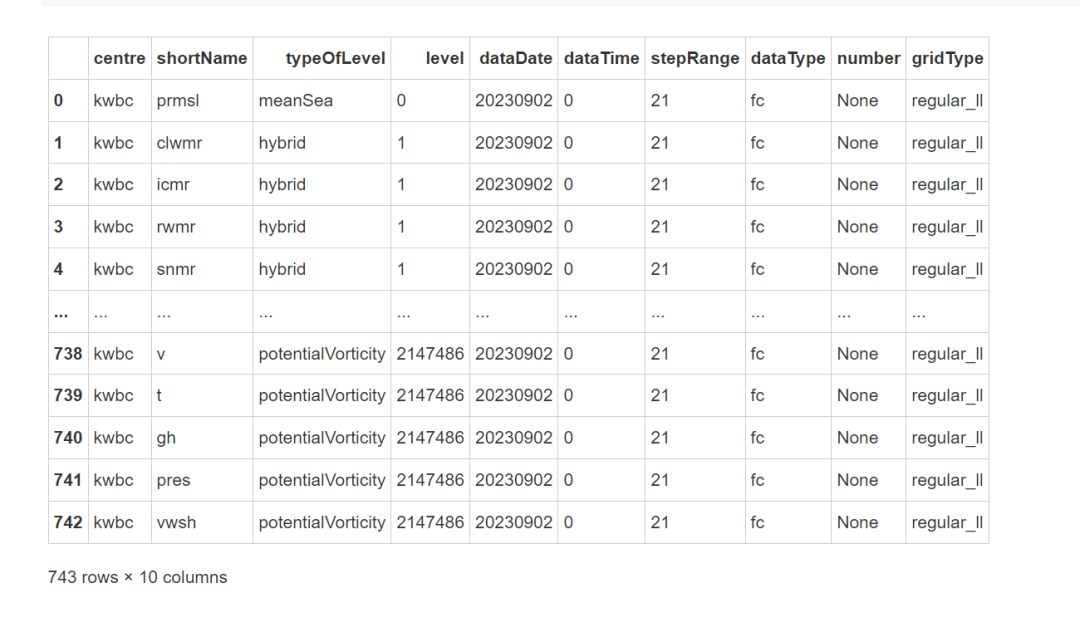

# 表格化快速摘要
ds.ls()


代码语言：javascript
复制

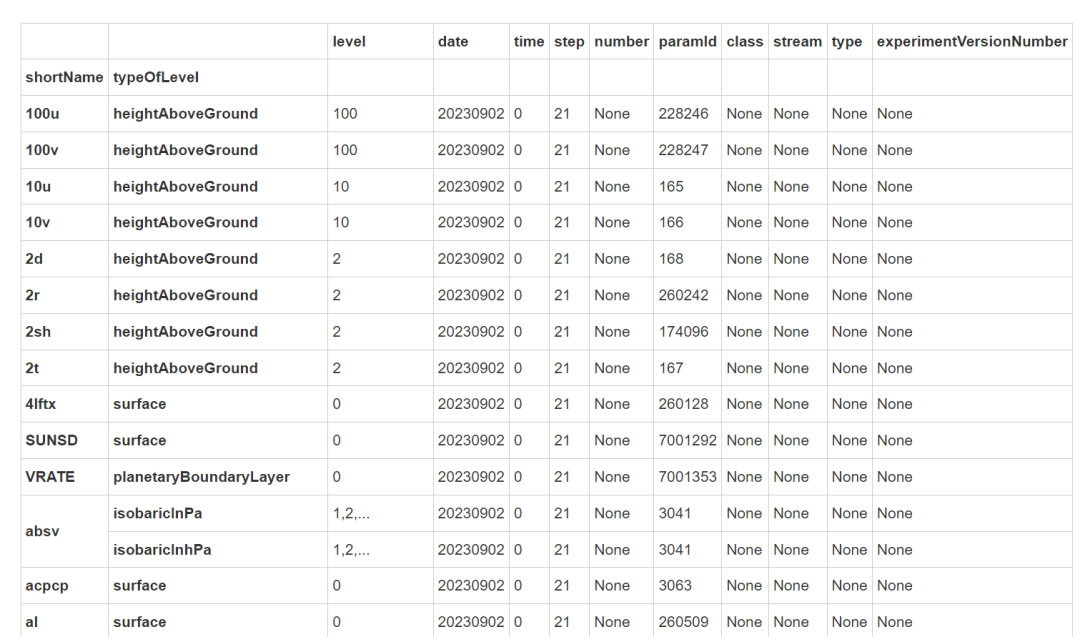

# 按 param 分组的详细描述
ds.describe()


4. 数据筛选与切片

FieldList 提供了类似 xarray 的 sel() 方法，可以按元数据（如参数名、层级、时效步长等）进行筛选。

代码语言：javascript
复制
# 按参数名筛选（param 是 GRIB 中常用的关键字）
t2m = ds.sel(param="2t")
print("筛选后字段数:", len(t2m))
t2m.ls()
代码语言：javascript
复制
筛选后字段数: 1


代码语言：javascript
复制

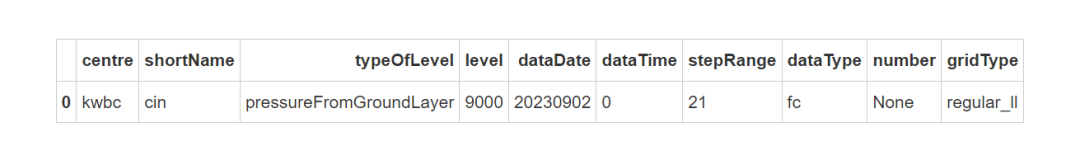

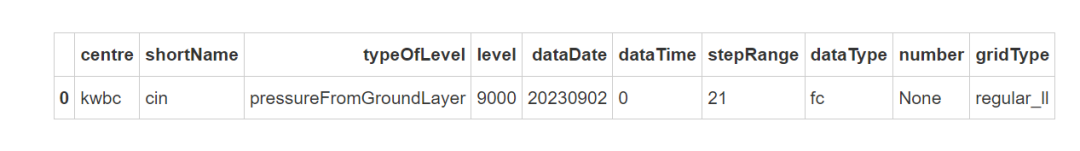

# 多条件筛选
subset = ds.sel(param="cin", levelist=9000)
print("多条件筛选后字段数:", len(subset))
subset.ls()


代码语言：javascript
复制
多条件筛选后字段数: 1
代码语言：javascript
复制
# 按元数据键排序
ordered = ds.order_by("param", "levelist")
print("排序后前5条:")
ordered.ls()
代码语言：javascript
复制
排序后前5条:


代码语言：javascript
复制

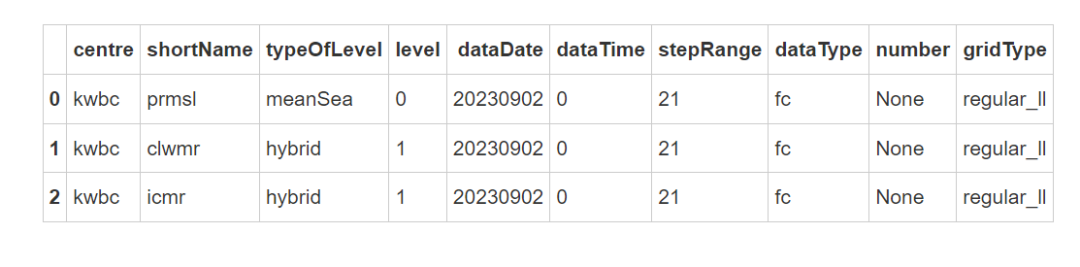

# 切片：取前3条
first3 = ds[:3]
print("切片后字段数:", len(first3))
first3.ls()
代码语言：javascript
复制
切片后字段数: 3


5. 单条 Field 的访问与操作

可以通过索引访问单个字段，查看其详细元数据或导出数据。

代码语言：javascript
复制
# 取第一条
f = ds[0]
print("类型:", type(f))
print("参数名:", f.metadata("param"))
print("层级:", f.metadata("levelist"))
print("时效步长:", f.metadata("step"))
代码语言：javascript
复制
类型: <class 'earthkit.data.readers.grib.codes.GribField'>
参数名: prmsl
层级: 0
时效步长: 21
代码语言：javascript
复制
# 完整 dump 所有元数据（namespace 常用 mars 或 default）
f.dump(namespace="mars")

6. 数据转换

earthkit-data 提供了多种常用导出接口，让你可以无缝衔接到 xarray、pandas、numpy 等生态工具中。

代码语言：javascript
复制
# 转为 xarray Dataset（气象分析最常用）
xa = subset.to_xarray()
print(xa)
代码语言：javascript
复制
<xarray.Dataset> Size: 2MB
Dimensions:    (latitude: 361, longitude: 720)
Coordinates:
  * latitude   (latitude) float64 3kB 90.0 89.5 89.0 88.5 ... -89.0 -89.5 -90.0
  * longitude  (longitude) float64 6kB 0.0 0.5 1.0 1.5 ... 358.5 359.0 359.5
Data variables:
    cin        (latitude, longitude) float64 2MB ...
Attributes:
    param:        cin
    paramId:      228001
    levtype:      unknown
    date:         20230902
    time:         0
    levelist:     9000
    Conventions:  CF-1.8
    institution:  ECMWF
代码语言：javascript
复制

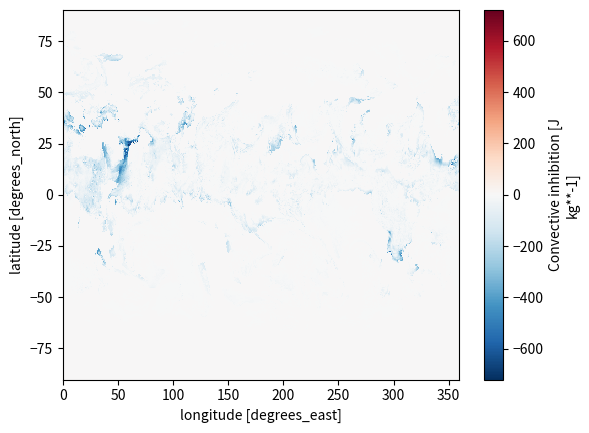

xa['cin'].plot()
代码语言：javascript
复制
<matplotlib.collections.QuadMesh at 0x7f2bd921c290>
output
output

output

多变量数据转换还是有点问题，等待进一步升级吧

7. earthkit 生态系统简介

earthkit-data 只是 earthkit 大家族的一员。完整的 earthkit 生态还包括：

子包

功能

earthkit-data

数据访问与格式处理（本 notebook 主题）

earthkit-maps

地图投影与地理信息处理

earthkit-plots

气象数据可视化

earthkit-regrid

网格插值与重采样

earthkit-transforms

数据变换与统计计算

earthkit-climate

气候学分析与计算

这些包共同构成了一套 从数据获取 → 处理 → 分析 → 可视化 的完整气象科学工作流工具链。

8. 小结与注意事项

总的来说这个工具比较工业化，适合做项目一条龙或者海量数据处理。

核心要点

  • from_source() 是唯一的加载入口，屏蔽了底层格式差异
  • FieldList / Field 是核心抽象，提供统一的元数据访问和数据导出接口
  • sel() / order_by() / slice 让数据筛选变得非常直观
  • to_xarray() / to_numpy() / to_pandas() 让你可以无缝接入现有的科学计算生态
  • 默认惰性加载 + 流式读取意味着你可以处理远超内存容量的数据集

⚠️ 版本说明

截至当前，earthkit-data 仍处于 Release Candidate 阶段，尚未发布稳定的 1.0 版本。API 可能在最终版前发生变动，生产环境使用时建议关注官方 Migration Guide。

参考链接

  • GitHub: https://github.com/ecmwf/earthkit-data
  • 文档: https://earthkit-data.readthedocs.io/en/latest/
  • earthkit 总览: https://earthkit.readthedocs.io/en/latest/
  • ECMWF 官方介绍: https://www.ecmwf.int/en/newsletter/179/computing/introducing-earthkit
