集成补丁打包ISO遇到的几个问题

原创
作者头像
Windows技术交流
修改于 2026-09-22 10:56:55
修改于 2026-09-22 10:56:55
4320
举报
文章被收录于专栏：Windows技术交流Windows技术交流

问题一：对25H2，kb5043080兼容install.wim，不兼容boot.wim，所以boot.wim不集成kb5043080

dism.exe /Add-Package failed with exit code -2146498529 for windows11.0-kb5043080-x64.msu

代码语言：txt
复制
[2026-06-30 12:14:50] Add LCU checkpoint (KB5043080): directory has 1 package(s), injecting one by one -> E:\IsoPatch\packages\Win11LTSC2024EN\lcu\kb5043080
[2026-06-30 12:14:50]   -> LCU checkpoint (KB5043080): windows11.0-kb5043080-x64.msu
dism.exe /Add-Package failed with exit code -2146498529 for E:\IsoPatch\packages\Win11LTSC2024EN\lcu\kb5043080\windows11.0-kb5043080-x64.msu
所在位置 C:\Users\Administrator\.workbuddy\skills\windows-server-iso-patch-integration\scripts\Invoke-BootWimOnlyIso_withpercentprogress.ps1:296 字符: 13
+             throw "dism.exe /Add-Package failed with exit code $LASTE ...
+             ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
    + CategoryInfo          : OperationStopped: (dism.exe /Add-P...5043080-x64.msu:String) [], RuntimeException
    + FullyQualifiedErrorId : dism.exe /Add-Package failed with exit code -2146498529 for E:\IsoPatch\packages\Win11LTSC2024EN\lcu\kb5043080\windows11.0-kb5043080-x64.msu

根因与修复

报错：-2146498529 = 0x800F081F (CBS_E_SOURCE_MISSING),在 boot.wim 注 kb5043080\windows11.0-kb5043080-x64.msu 时触发。

根因(配置 + 逻辑共同导致,非脚本崩溃):

  • 25H2Win11iotAmd64EN_idx2.json 的 Build=26200,触发了之前加的「≥26200 → 先注 KB5043080 checkpoint」分支。
  • 但该配置的 LCU 共用 Win11LTSC2024EN\lcu(24H2/26100 包),里面的 kb5043080 是 2024-09 的 24H2 checkpoint。
  • 按实测定论:KB5043080 兼容 24H2/25H2 的 install.wim,但只兼容 24H2 的 boot.wim。注进 26200 的 boot.wim 时,checkpoint 声明的 source baseline 不匹配 26200 PE → 0x800F081F。

问题二：x64 iso，搞错补丁类型，报错dism.exe /Add-Package failed with exit code 193 for xxx-arm64.msu

问题三：install.wim、boot.wim集成补丁收尾时意外退出，退出码 -1073740791 = 0xC0000409 (STATUS_STACK_BUFFER_OVERRUN)，是 dism.exe 进程级崩（安全软件hook导致异常）

代码语言：txt
复制
[2026-06-30 14:48:12] Add LCU: directory has 1 package(s), injecting one by one -> E:\IsoPatch\packages\Win11LTSC2024EN\lcu
[2026-06-30 14:48:12]   -> LCU: windows11.0-kb5094126-x64.msu
dism.exe /Add-Package failed with exit code -1073740791 for E:\IsoPatch\packages\Win11LTSC2024EN\lcu\windows11.0-kb5094126-x64.msu
所在位置 C:\Users\Administrator\.workbuddy\skills\windows-server-iso-patch-integration\scripts\Invoke-BootWimOnlyIso_withpercentprogress.ps1:296 字符: 13
+             throw "dism.exe /Add-Package failed with exit code $LASTE ...
+             ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
    + CategoryInfo          : OperationStopped: (dism.exe /Add-P...5094126-x64.msu:String) [], RuntimeException
    + FullyQualifiedErrorId : dism.exe /Add-Package failed with exit code -1073740791 for E:\IsoPatch\packages\Win11LTSC2024EN\lcu\windows11.0-kb5094126-x64.msu


dism.exe /Add-Package failed with exit code -1073740791 for E:\IsoPatch\packages\24H2Arm64EN\lcu\windows11.0-kb5094126-arm64.msu
所在位置 C:\Users\Administrator\.workbuddy\skills\windows-server-iso-patch-integration\scripts\Invoke-BootWimOnlyIso_withpercentprogress.ps1:318 字符: 13
+             throw "dism.exe /Add-Package failed with exit code $LASTE ...
+             ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
    + CategoryInfo          : OperationStopped: (dism.exe /Add-P...94126-arm64.msu:String) [], RuntimeException
    + FullyQualifiedErrorId : dism.exe /Add-Package failed with exit code -1073740791 for E:\IsoPatch\packages\24H2Arm64EN\lcu\windows11.0-kb5094126-arm64.msu

问题的本质是:dism 业务成功了，但因退出阶段被外部 hook 搞崩，返回了非零退出码，脚本的 if ($LASTEXITCODE -ne 0) { throw } 把它当成了失败。

如果遇到0xC0000409，校验RollupFix 是否真的 Installed,确认装上就吞掉这个崩溃码当成功。

问题四：boot.wim挂载路径太长，boot.wim挂载到E:\b解决

代码语言：txt
复制
[2026-06-30 17:30:43] Add LCU: directory has 1 package(s), injecting one by one -> E:\IsoPatch\packages\24H2Arm64EN\lcu
[2026-06-30 17:30:43]   -> LCU: windows11.0-kb5094126-arm64.msu
dism.exe /Add-Package failed with exit code 3 for E:\IsoPatch\packages\24H2Arm64EN\lcu\windows11.0-kb5094126-arm64.msu
所在位置 C:\Users\Administrator\.workbuddy\skills\windows-server-iso-patch-integration\scripts\Invoke-BootWimOnlyIso_withpercentprogress.ps1:296 字符: 13
+             throw "dism.exe /Add-Package failed with exit code $LASTE ...
+             ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
    + CategoryInfo          : OperationStopped: (dism.exe /Add-P...94126-arm64.msu:String) [], RuntimeException
    + FullyQualifiedErrorId : dism.exe /Add-Package failed with exit code 3 for E:\IsoPatch\packages\24H2Arm64EN\lcu\windows11.0-kb5094126-arm64.msu

退出码 3 = 0x80070003 = ERROR_PATH_NOT_FOUND

退出码 3 是 MAX_PATH 越界导致的ERROR_PATH_NOT_FOUND，不是脚本 bug、不是包损坏

问题五： ISO损坏（下载后未校验md5值）导致集成补丁耗时非常长且最终失败报错Error 1392 = ERROR_FILE_CORRUPT

WIMMountExtractFileToHandle → wimmount 驱动尝试从 .wim 按需回填 ServicingStack...mum

UncompressFileBase: file corrupted in block at offset 000002B3CCEB7040 → 解压这个文件的某个数据块时发现 WIM 内的压缩块损坏（Error 1392 = ERROR_FILE_CORRUPT）

核实下载的ISO有问题，md5值不对，重新下载校验md值没问题后，重新操作，解决

问题六：集成kb5094126时，为何会经历2个从1%到100%的过程

组合包= SSU 服务栈子包 + LCU 主体,dism 把它当成两个 CBS 安装阶段分别跑,每阶段各打一条独立进度条:

第 1 段:解析展开 + 装 SSU + 逐组件登记规划

第 2 段:RollupFix 内容真正写进离线 boot.wim 并提交

代码语言：txt
复制
[2026-06-30 20:36:48] Add LCU: directory has 1 package(s), injecting one by one -> E:\IsoPatch\packages\Win11LTSC2024EN\lcu
[2026-06-30 20:36:48]   -> LCU: windows11.0-kb5094126-x64.msu

部署映像服务和管理工具
版本: 10.0.28000.1

映像版本: 10.0.26100.6584

Processing 1 of 1 -

[                           1.0%                           ]

[=                          2.0%                           ]

[=======                    13.0%                          ]

[========                   14.0%                          ]

[========                   15.0%                          ]

[=========                  16.0%                          ]

[=========                  17.0%                          ]

[==========                 18.0%                          ]

[===========                19.0%                          ]

[===========                20.0%                          ]

[============               21.0%                          ]

[============               22.0%                          ]

[=============              23.0%                          ]

[=============              24.0%                          ]

[==============             25.0%                          ]

[===============            26.0%                          ]

[===============            27.0%                          ]

[================           28.0%                          ]

[=================          30.0%                          ]

[=================          31.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[==================         32.0%                          ]

[===================        33.0%                          ]

[===================        33.0%                          ]

[===================        33.0%                          ]

[===================        33.0%                          ]

[===================        33.0%                          ]

[===================        33.0%                          ]

[===================        33.0%                          ]

[===================        33.0%                          ]

[===================        33.0%                          ]

[===================        33.0%                          ]

[===================        33.0%                          ]

[===================        33.0%                          ]

[===================        33.0%                          ]

[===================        33.0%                          ]

[===================        33.0%                          ]

[====================       35.0%                          ]

[==========================100.0%==========================]

[==========================100.0%==========================]

[==========================100.0%==========================]

[==========================100.0%==========================]

[==========================100.0%==========================]

[==========================100.0%==========================]

[==========================100.0%==========================]

[==========================100.0%==========================]

[==========================100.0%==========================]

[==========================100.0%==========================]

[==========================100.0%==========================]

[==========================100.0%==========================]

[==========================100.0%==========================]

[==========================100.0%==========================]

[==========================100.0%==========================]

[==========================100.0%==========================]

[==========================100.0%==========================]

[==========================100.0%==========================]

[==========================100.0%==========================]

[==========================100.0%==========================]


[                           1.0%                           ]

[                           1.0%                           ]

[                           1.0%                           ]

[                           1.0%                           ]

[===========================72.0%=========                 ]

[===========================72.0%=========                 ]

[===========================72.0%=========                 ]

[==========================100.0%==========================]

[==========================100.0%==========================]
操作成功完成。
[2026-06-30 20:41:40] Cleanup image: E:\b  (live progress bar)

部署映像服务和管理工具
版本: 10.0.28000.1

映像版本: 10.0.26100.8655


[==                         5.0%                           ]

[==                         5.0%                           ]

[===========================65.0%=====                     ]

[===========================70.0%========                  ]

[===========================70.0%========                  ]

[===========================94.6%======================    ]

[==========================100.0%==========================]
操作成功完成。

问题七：报错0xc1420117需要regedit打开UI卸载注册表

报下面msg的时候，运行regedit打开注册表编辑器，选中没自动卸载完的挂载点，卸载配置单元。

代码语言：txt
复制
正在卸载映像
[==========================100.0%==========================]

错误: 0xc1420117

不能完全卸载目录。这通常是由于应用程序仍在装载目录中打开文件。请关闭这些文件并重新卸载来完成卸载过程。

可以在 C:\WINDOWS\Logs\DISM\dism.log 上找到 DISM 日志文件

卸载配置单元后，执行这段powershell

代码语言：txt
复制
Get-WindowsImage -Mounted

dism /Cleanup-Mountpoints

dism /Cleanup-Wim

# 定义注册表路径
$regPath = "HKLM:\SOFTWARE\Microsoft\WIMMount\Mounted Images"

# 使用Get-ChildItem递归遍历注册表项
Get-ChildItem -Path $regPath -Recurse | ForEach-Object {
    # 获取当前项的所有子项
    $subKeys = Get-ItemProperty -Path $_.PSPath -Name * -ErrorAction SilentlyContinue

    # 检查是否存在名为"Mount Path"的子项
    if ($subKeys.PSObject.Properties.Name -contains "Mount Path") {
        # 输出找到的"Mount Path"值
        $mountPathValue = $subKeys."Mount Path"
        Write-Output "Found 'Mount Path' with value '$mountPathValue' at key '$($_.PSPath)'"
        $mountPathValue
        Write-Output ""
    }
}

#Dism /Unmount-Image /MountDir:"E:\MountUUP" /Discard

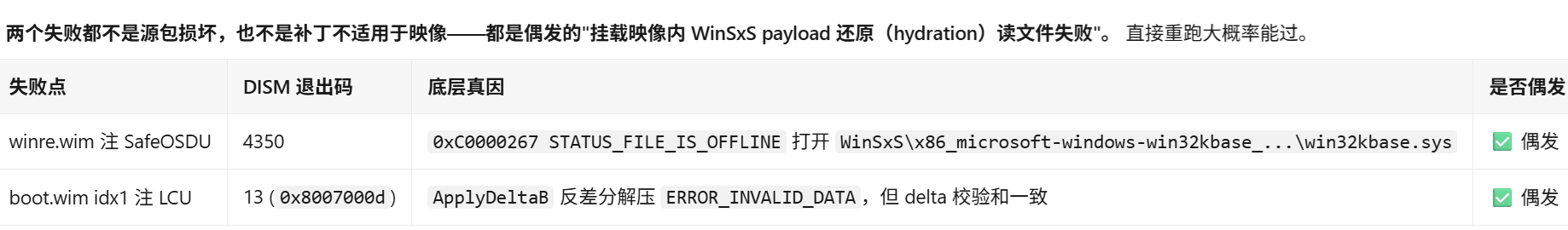

问题八、failed with exit code 4350、failed with exit code 13，原因未知，重试好了，让AI分析原因，AI说可能跟第三方minifilter有关

代码语言：txt
复制

winre.wim
===== Starting Win10LTSC2021ENx86 @ 2026-09-17 23:55:09 =====
[2026-09-18 00:02:59] Service winre.wim
[2026-09-18 00:03:47] Add Safe OS Dynamic Update: directory has 1 package(s), injecting one by one -> E:\IsoPatch\packages\Win10LTSC2021ENx86\safeos-du
[2026-09-18 00:03:47]   -> Safe OS Dynamic Update: windows10.0-kb5122887-x86.cab
===== FAILED Win10LTSC2021ENx86 : dism.exe /Add-Package failed with exit code 4350 for E:\IsoPatch\packages\Win10LTSC2021ENx86\safeos-du\windows10.0-kb5122887-x86.cab =====

boot.wim
===== Starting Win10LTSC2021CN @ 2026-09-18 00:05:47 =====
[2026-09-18 03:21:50] Service boot.wim index 1
[2026-09-18 03:23:51] Add LCU: directory has 1 package(s), injecting one by one -> E:\IsoPatch\packages\Win10LTSC2021EN\lcu
[2026-09-18 03:23:51]   -> LCU: windows10.0-kb5129236-x64_4413bfb0ab8a665cd0244ed67ec361170bb12ecb.msu
===== FAILED Win10LTSC2021CN : dism.exe /Add-Package failed with exit code 13 for E:\IsoPatch\packages\Win10LTSC2021EN\lcu\windows10.0-kb5129236-x64_4413bfb0ab8a665cd0244ed67ec361170bb12ecb.msu =====

关于code 4350 ，AI的解读如下：

代码语言：txt
复制
报错本质：4350 = 0x10FE = ERROR_FILE_OFFLINE

因果链：

dism 注 LCU 时 wimmount 把挂载镜像里服务栈文件的数据块投影回填读出来；

解压时读到坏块 → Error 1392 (ERROR_FILE_CORRUPT)；

CBS 拿不到内容 → 报 0x800710fe (ERROR_FILE_OFFLINE)；

塌的是 ServicingStack 这个地基 → 最终 dism 吐 4350。

关键：源 LCU 文件本身没坏（历史用 /Export-Image /CheckIntegrity 逐块重压 100% 通过验证过）。坏的是运行时投影层偶发读出坏数据——高度嫌疑是 Ztsm/DLP minifilter 干扰 wimmount，但没用 procmon 实锤到具体 filter，属嫌疑级。​这是偶发的，不是每次必崩。

不是源文件坏（已用 CheckIntegrity 证否），也不是安全软件"主动拦截/打离线属性"那种意义上的拦。真相是：dism 通过 wimmount 投影读取挂载镜像文件时，运行时偶发读出坏数据块（1392），CBS 层把它表达成 OFFLINE(0x800710fe)，最终塌成 4350。这个"偶发读坏"极可能是内核 minifilter（Ztsm/DLP 嫌疑）干扰投影 IO 造成的，但没 procmon 实锤,属高嫌疑未定罪。

关于code 13 ，AI的解读如下：

代码语言：txt
复制
delta_library.cpp(350) ApplyDeltaB -> NTSTATUS_FROM_WIN32(ERROR_INVALID_DATA)
Hydration failed ... Delta Type: Reverse Delta, RetrievedChecksum 1426642098 == ComputedChecksum 1426642098
  -> CbsProvider.dll / mrxsmb10.sys / srv.sys 三个互不相干组件同时 "Matching binary missing"
  -> HRESULT_FROM_WIN32(ERROR_INVALID_DATA) -> DISM 0x8007000d
校验和一致却解压失败 ⇒ delta 数据没坏，是"参考基础文件"读回来的内容不对；三个无关组件同时挂 ⇒ 是通道级故障，不是单个坏文件。

待验证假设（不武断，标注为假设）

fltmc instances -v E: 显示 WIMMount（高度 180700）之上有 9 个第三方 minifilter：DLPDrv(654322，最高)、TFsFlt、UCPD、SysmonDrv、iOAProcessAudit、WdFilter、ZtsmSysMonX64、QQSysMonX64、iOAMonitor、iOAAudit；C: 卷几乎相同（换卷无用）。WIM 挂载投影文件在未回填状态下被上层过滤器触碰，正好能解释 "文件 OFFLINE / 读回内容不对 + 偶发"。​实锤需要：procmon 抓 \mount\ 路径、过滤 Result≠SUCCESS，看调用栈里出现哪个第三方驱动名。在此之前我不下"就是某某安全软件"的结论。

最终：在安全软件里对用于集成补丁打包ISO的工作目录加白，暂时未复现failed with exit code 4350、failed with exit code 13

问题九、集成驱动，文件不存在导致失败

代码语言：txt
复制

===== FAILED 25H2Win11iotArm64EN : Drivers.VirtIORoot not found: L:\Win11ARM\ARM64\ =====
===== FAILED 24H2Win11iotArm64EN : Drivers.VirtIORoot not found: L:\Win11ARM\ARM64\ =====
===== FAILED Win11LTSC24H2iotArm64EN : Drivers.VirtIORoot not found: L:\Win11ARM\ARM64\ =====

原创声明：本文系作者授权腾讯云开发者社区发表，未经许可，不得转载。

如有侵权，请联系 cloudcommunity@tencent.com 删除。

云服务器
windows server
windows
目录
  • 问题一：对25H2，kb5043080兼容install.wim，不兼容boot.wim，所以boot.wim不集成kb5043080
  • 根因与修复
  • 问题二：x64 iso，搞错补丁类型，报错dism.exe /Add-Package failed with exit code 193 for xxx-arm64.msu
  • 问题三：install.wim、boot.wim集成补丁收尾时意外退出，退出码 -1073740791 = 0xC0000409 (STATUS_STACK_BUFFER_OVERRUN)，是 dism.exe 进程级崩（安全软件hook导致异常）
  • 问题四：boot.wim挂载路径太长，boot.wim挂载到E:\b解决
  • 问题五： ISO损坏（下载后未校验md5值）导致集成补丁耗时非常长且最终失败报错Error 1392 = ERROR_FILE_CORRUPT
  • 问题六：集成kb5094126时，为何会经历2个从1%到100%的过程
  • 问题七：报错0xc1420117需要regedit打开UI卸载注册表

腾讯云开发者

扫码关注腾讯云开发者

扫码关注腾讯云开发者

领取腾讯云代金券

热门产品

热门推荐

更多推荐

Copyright © 2013 - 2026 Tencent Cloud. All Rights Reserved. 腾讯云 版权所有

深圳市腾讯计算机系统有限公司 ICP备案/许可证号：粤B2-20090059 粤公网安备44030502008569号

腾讯云计算（北京）有限责任公司 京ICP证150476号 |  京ICP备11018762号

问题归档专栏文章快讯文章归档关键词归档开发者手册归档开发者手册 Section 归档
