CDP(Chrome DevTools Protocol )允许对 Chromium、Chrome 浏览器和其他基于 Blink 渲染引擎 的浏览器进行检测、检查、调试和配置。Chrome 浏览器的调试工具 Chrome DevTools 使用的也是这套协议
区别于 Selenium + Webdriver 的方式,客户端直接使用HTTP或WebSocket 对开启了远程调试接口的浏览器进行操作控制。
官方文档:
https://chromedevtools.github.io/devtools-protocol/
用于测试的 Chrome 浏览器

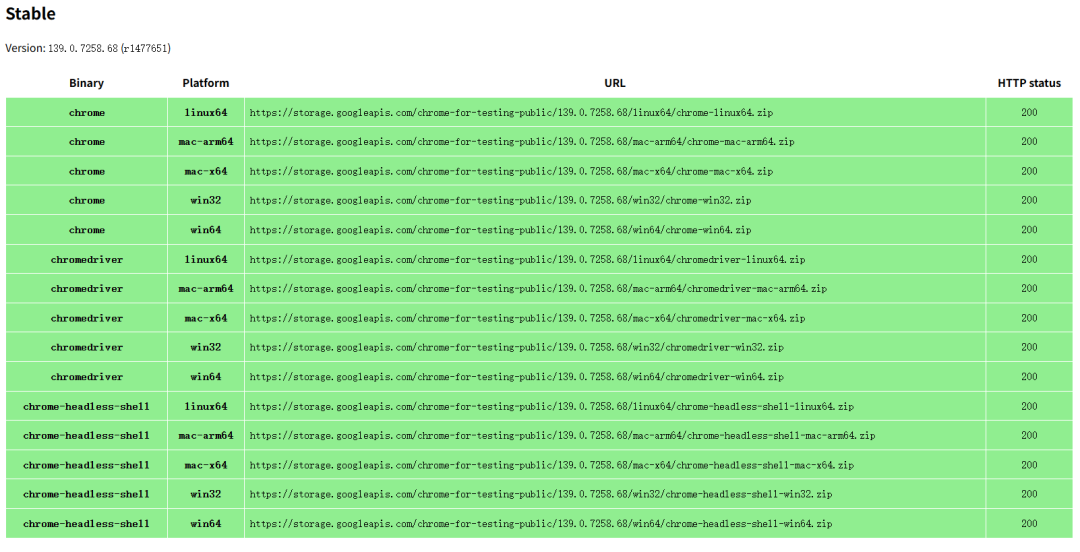

搭建测试环境时,可以下载专用的Chrome浏览器,chromedriver,和headless版浏览器:
https://googlechromelabs.github.io/chrome-for-testing/

启动浏览器,打开远程调试
使用如下参数启动即可,需要其他参数自行添加。
可以在命令行启动:
chrome.exe --enable-logging --remote-debugging-port=9000注:如不加 --enable-logging ,命令行会退出,不显示相关日志。

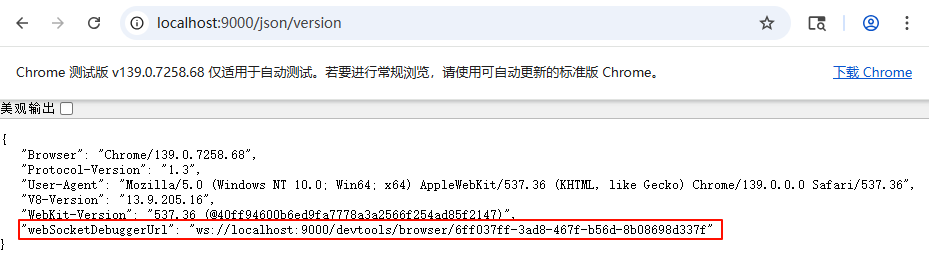

获取CDP的ws地址可以访问http://localhost:9000/json/version,
方便自动化软件,通过端口自主获得。
注:若使用自动化工具访问HTTP地址获取链接,可能需要添加参数--remote-allow-origins=* 启动(*可以配置成具体站点--remote-allow-origins=http://127.0.0.1:9000)

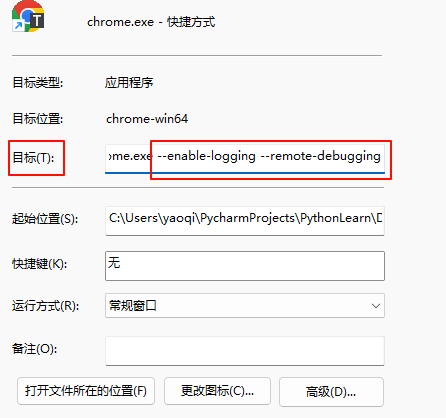

Windows 系统也可以创建快捷方式:

注:Chrome一般是单实例模式,如果你启动时,已经有打开的浏览器了,参数会不起作用。解决方法:
1.关掉所有已经打开的浏览器,重新启动。
2.使用参数在独立的用户路径启动。
chrome.exe --user-data-dir="%TEMP%\chrome-test" --remote-debugging-port=9000(我一边开浏览器查资料,一边用它测试,结果死活命令行参数不生效😓)

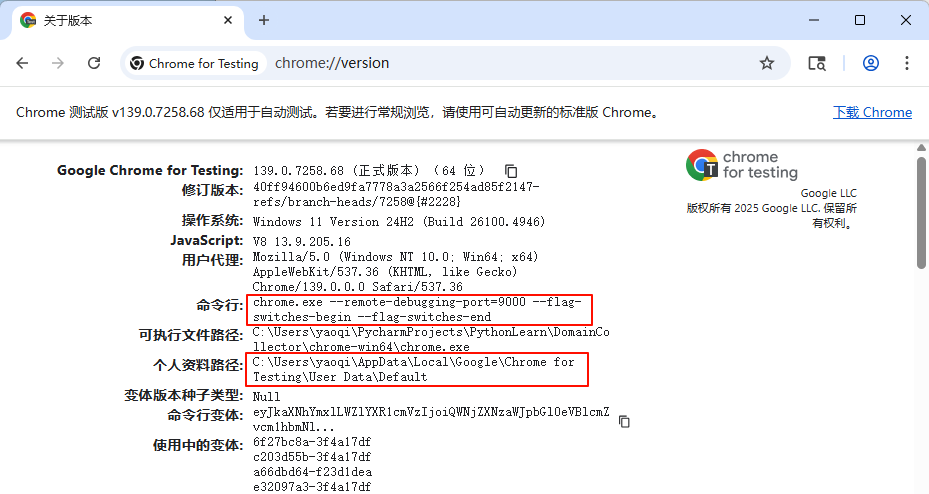

注:可以打开chrome://version/ 查看实际的命令行参数:

使用WS链接和浏览器交互
交互过程就是通过上文获得的ws://链接,通过 websocket 发送 json 格式的命令。
例:打开网站主页
(代码由gpt-5-high生成,微调了一点,提示词:帮我用python3写一个使用websock通过CDP打开网页的例子)
import json
import time
import requests
import websocket
def get_browser_ws_url(host="127.0.0.1", port=9000):
# 获取浏览器级 WebSocket 入口
info = requests.get(f"http://{host}:{port}/json/version", timeout=3).json()
return info["webSocketDebuggerUrl"]
class CDPClient:
def __init__(self, ws_url):
self.ws = websocket.create_connection(ws_url)
self._id = 0
def _next_id(self):
self._id += 1
return self._id
def call(self, method, params=None, session_id=None):
"""发送 CDP 命令并等待同 id 的响应;期间会打印遇到的事件。"""
msg_id = self._next_id()
payload = {"id": msg_id, "method": method}
if params:
payload["params"] = params
if session_id:
payload["sessionId"] = session_id
self.ws.send(json.dumps(payload))
while True:
resp = json.loads(self.ws.recv())
# 命令响应
if resp.get("id") == msg_id:
if "error" in resp:
raise RuntimeError(resp["error"])
return resp
# 事件(可能在响应前到达)
if "method" in resp:
print("event:", resp.get("method"))
def wait_event(self, expect_method, session_id=None, timeout=10):
"""等待指定事件"""
old_to = self.ws.gettimeout()
self.ws.settimeout(timeout)
try:
while True:
msg = json.loads(self.ws.recv())
if msg.get("method") == expect_method:
if session_id is None or msg.get("sessionId") == session_id:
return msg
finally:
self.ws.settimeout(old_to)
def close(self):
self.ws.close()
def open_page_via_cdp(url, host="127.0.0.1", port=9000):
# 1) 连接到浏览器级 WebSocket
ws_url = get_browser_ws_url(host, port)
cdp = CDPClient(ws_url)
# 2) 创建一个新目标页签
r = cdp.call("Target.createTarget", {"url": "about:blank"})
target_id = r["result"]["targetId"]
# 3) 附加到该目标,拿到会话 sessionId(flatten=true 更简单)
r = cdp.call("Target.attachToTarget", {"targetId": target_id, "flatten": True})
session_id = r["result"]["sessionId"]
# 4) 开启需要的域
cdp.call("Page.enable", session_id=session_id)
cdp.call("Runtime.enable", session_id=session_id)
# 5) 导航到目标 URL
cdp.call("Page.navigate", {"url": url}, session_id=session_id)
# 6) 等待页面加载完成事件(也可等待 Page.frameStoppedLoading 或 lifecycleEvent)
try:
cdp.wait_event("Page.loadEventFired", session_id=session_id, timeout=15)
except Exception:
print("loadEventFired 等待超时,继续后续步骤(页面可能已基本可用)")
# 7) 读取页面标题作为验证
eval_res = cdp.call(
"Runtime.evaluate",
{"expression": "document.title", "returnByValue": True},
session_id=session_id,
)
title = eval_res["result"]["result"].get("value")
print(f"Title: {title!r}")
# 8) 可选:关闭该标签页
# cdp.call("Target.closeTarget", {"targetId": target_id})
# cdp.close()
if __name__ == "__main__":
open_page_via_cdp("https://www.baidu.com")
open_page_via_cdp("https://www.mi.com")封装好的库
CDP有那么多命令和事件,每次自己拼 json 并不友好,可以选择使用开源的CDP库,或者某些基于CDP的自动化软件库。
比如微软出品的 Playwright 和非常有名的 Selenium 4(内置 CDP 接口)。
