问"MalformedResponse:由于空语音响应而无法将对话框响应解析为AppResponse“在OAuth帐户链接流程中
EN

Stack Overflow用户
提问于 2019-02-21 15:24:59
回答 1查看 3.7K关注 0票数 2

我们正在使用新发布的Java/Kotlin API在Google实现上实现操作。

它叫Speech Bank。

在通过帐户链接智能手机上的进程测试时，用户正在获取MalformedResponse错误，从而阻止流的完成并成功地切换到常规流。

日志(详见下文)包含MalformedResponse: Failed to parse Dialogflow response into AppResponse because of empty speech response消息，用户在其设备上接收Speech bank isn't responding right now. Try again soon.消息。

下面是我们的设置的更多细节：

​

​

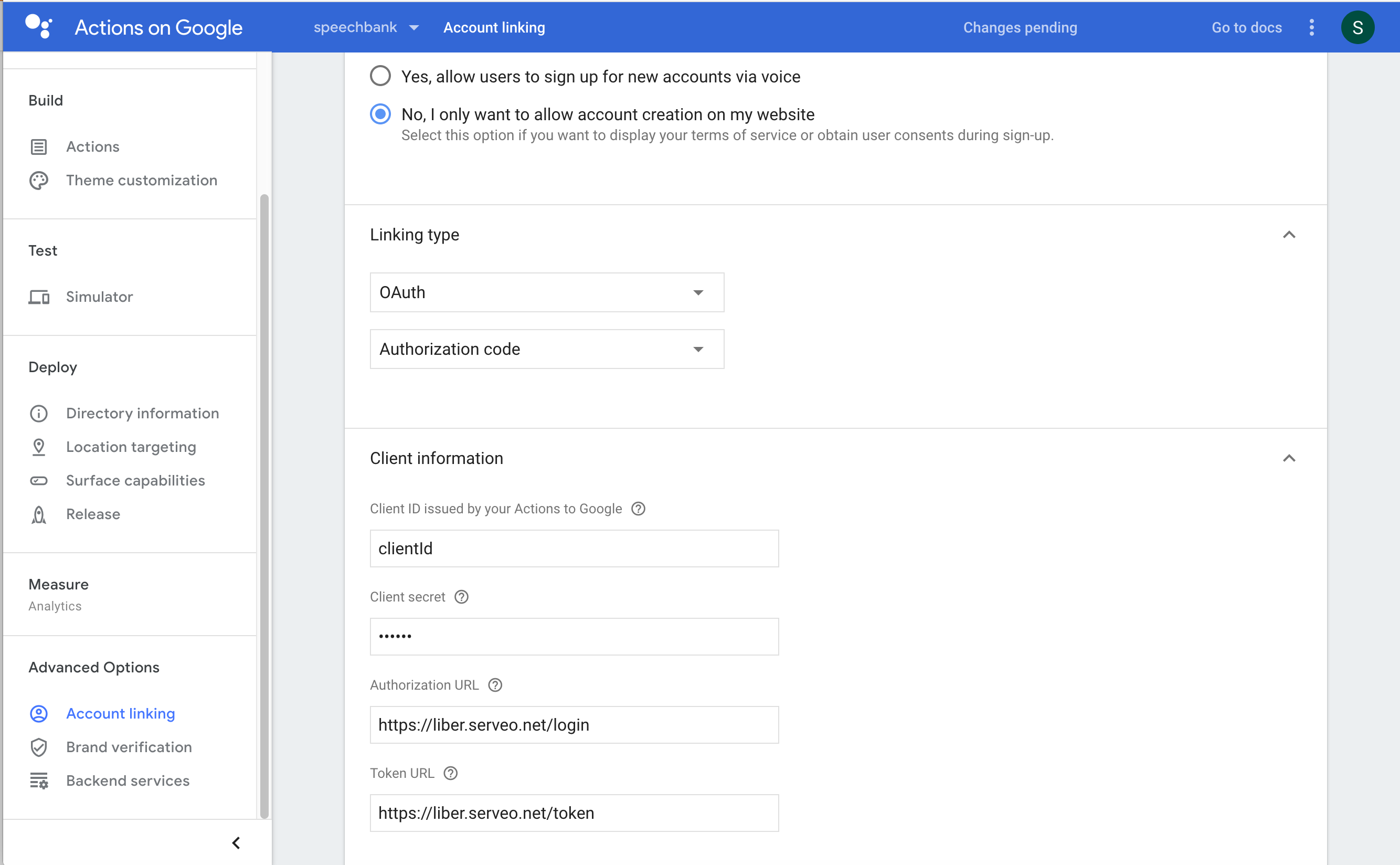

该操作被配置为使用我们自己的OAuth 2兼容的模拟基础设施进行帐户链接。

​

​

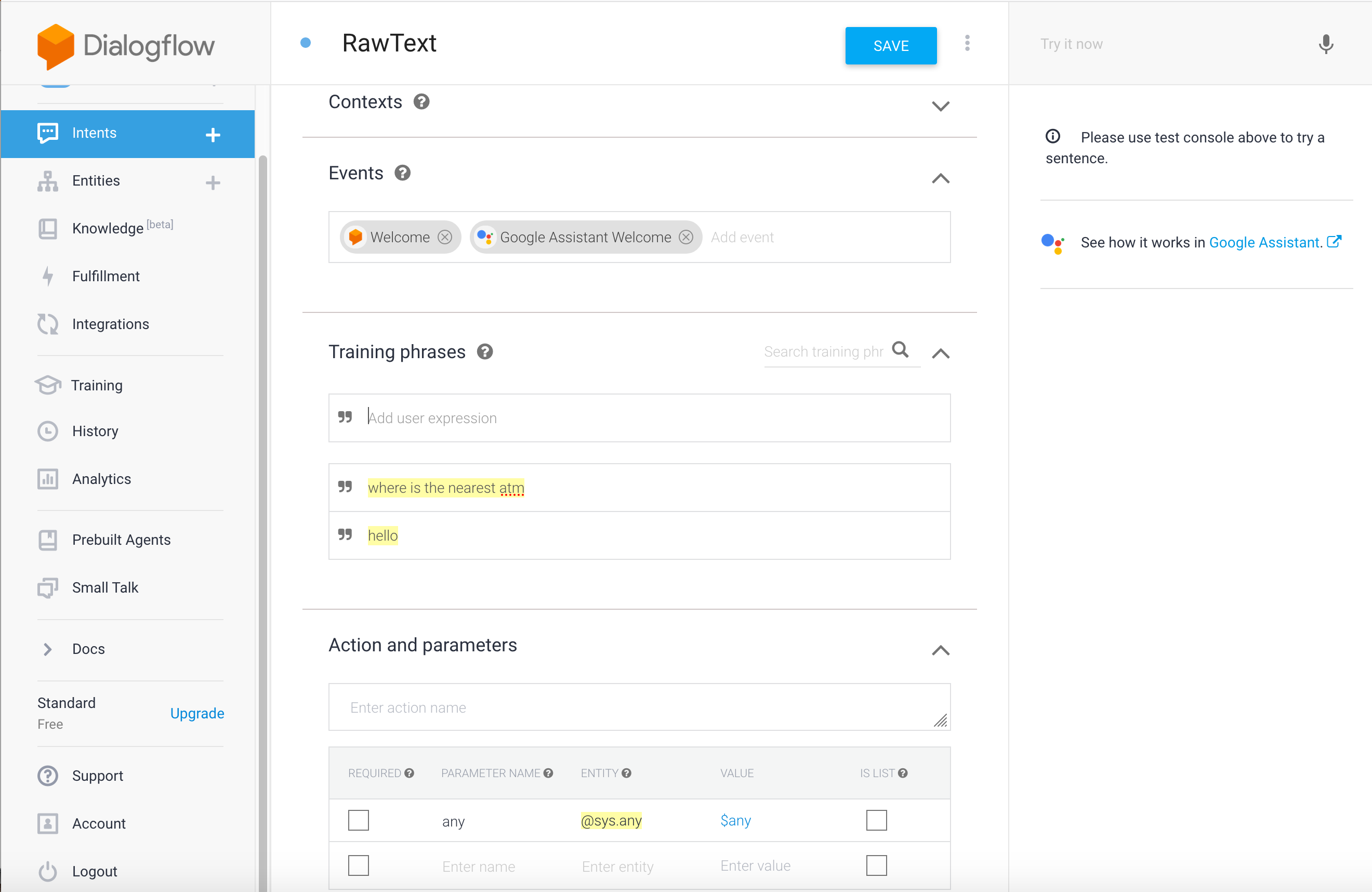

在对话框中配置了一个单独的意图(称为RawText)，其馀的交互将由自己的内部应用程序通过其web钩子来处理。

​

到目前为止，状态机是如何用Java编写的：

代码语言：javascript
复制
    public class AoGApp extends DialogflowApp {

        private final static Logger log = LoggerFactory.getLogger(AoGApp.class);

       public static final String GREETING = "GOOGLE_ASSISTANT_WELCOME";

        @ForIntent("RawText")
        //@ForIntent("actions.intent.MAIN")
        public ActionResponse launchRequestHandler(ActionRequest request) {

            String userId = request.getAppRequest().getUser().getUserId();
            log.info("userId={}",userId);
            String queryText = request.getWebhookRequest().getQueryResult().getQueryText();
            log.info("queryText={}", queryText);


            String speech = null;

            ResponseBuilder responseBuilder = getResponseBuilder(request);

            if (isBlank(userId) || GREETING.equalsIgnoreCase(queryText)) {

                speech = "\nHi. I sense a great banking experience in your future, I see that your account isn't connected. "
                        + "I've sent a link to your Google Assistant app that will get you started and set up in just several simple steps. "
                        + "Don't worry, I'll be here waiting, just summon me when you're ready.";


                responseBuilder.add(
                        new SignIn()
                            .setContext(speech));
            } else {
                speech = "Welcome. You can say hello.";
                responseBuilder.add(speech);
            }


            return responseBuilder.build();
        }

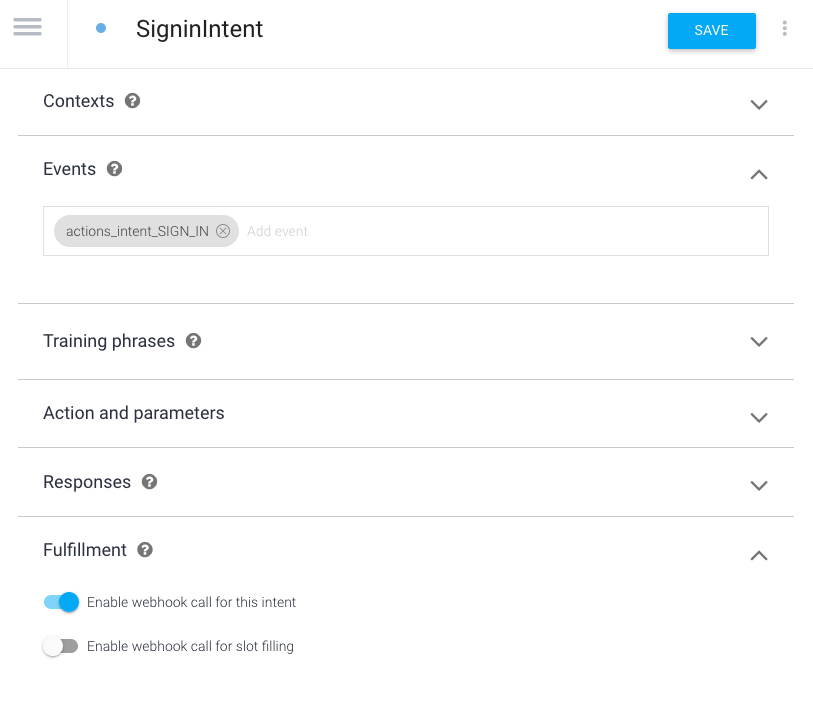

        @ForIntent("actions.intent.SIGN_IN")
        public ActionResponse getSignInStatus(ActionRequest request) {
          ResponseBuilder responseBuilder = getResponseBuilder(request);
          String text = "Hello from sign-in handler";
          responseBuilder.add(text);
          log.info(text);
          return responseBuilder.build();

        }

    }


and the associated HttpRequest processing:

    @Override
        protected void handlePOST(final Request request, final HttpServletResponse response) {

            try {
                String rawRequest = ControllerUtils.toString(request.getReader());


                String jsonResponse = app.handleRequest(rawRequest, getHeadersMap(request)).get();
                log.info("Generated response:\n {}", ControllerUtils.prettyPrint(jsonResponse));
                response.setContentType(APPLICATION_JSON.getMimeType());
                response.getWriter().write(jsonResponse);
            } catch (Exception e) {
                handleError(response, e);
            }
        }
代码语言：javascript
复制
public final class ControllerUtils {

    private final static Logger log = LoggerFactory.getLogger(ControllerUtils.class);
    private static ObjectMapper mapper = new ObjectMapper();

    public static String toString(BufferedReader reader) throws Exception {

        String rawRequest = reader
                .lines()
                //.map(e -> e.concat(System.lineSeparator()))
                .collect(Collectors.joining(System.lineSeparator()));
        log.info("Received AoG Request {}",rawRequest);
        return rawRequest;
    }

    public static String prettyPrint(String json) throws Exception {
        return mapper.writerWithDefaultPrettyPrinter().writeValueAsString(mapper.readValue(json, Object.class));
    }

    public static Map<String, String> getHeadersMap(org.eclipse.jetty.server.Request jettyRequest){
        return Collections.list((Enumeration<String>) jettyRequest.getHeaderNames())
                .stream()
                .collect(Collectors.toMap(
                        name -> name,
                        jettyRequest::getHeader));

    }


}

如前所述，OAuth授权代码流执行正常的OAuth 2步骤：

  • 点击/login端点来提供凭据
  • 点击/token端点来获取令牌(在下面的日志中它的值是token1 )。我们有一个生成和注入自己的令牌的工具，这是一个测试环境，因此我们生成了这个token1值，该值似乎已经成功地结合到后续请求中。)

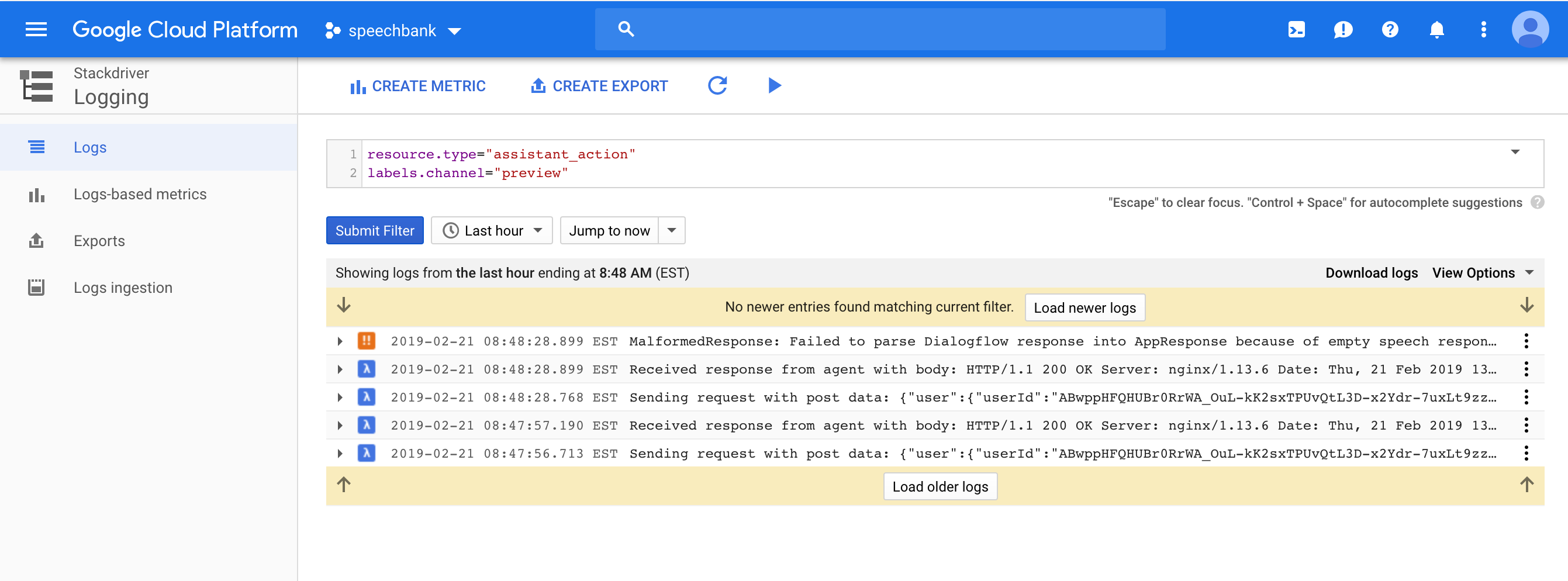

下面是失败交互的详细屏幕截图，附带的日志由Google控制台上的操作提供：

​

​

代码语言：javascript
复制
[
 {
   "textPayload": "Sending request with post data: {\"user\":{\"userId\":\"ABwppHFQHUBr0RrWA_OuL-kK2sxTPUvQtL3D-x2Ydr-7uxLt9zzEFzJrGB-X96d9XY8k9XTJj-RUg9WpzGB9jg\",\"locale\":\"en-US\",\"lastSeen\":\"2019-02-20T21:32:22Z\",\"userStorage\":\"{\\\"data\\\":{}}\"},\"conversation\":{\"conversationId\":\"ABwppHE35s8T6qSdaaCMNiWuMdY7UsvQ3sHbLZJOQkVA4AFD2nhKuqTTvoJTkVh7yU81GCHbvlfZTxmULLd4Ug\",\"type\":\"NEW\"},\"inputs\":[{\"intent\":\"actions.intent.MAIN\",\"rawInputs\":[{\"inputType\":\"VOICE\",\"query\":\"open speech Bank\"}]}],\"surface\":{\"capabilities\":[{\"name\":\"actions.capability.AUDIO_OUTPUT\"},{\"name\":\"actions.capability.MEDIA_RESPONSE_AUDIO\"},{\"name\":\"actions.capability.SCREEN_OUTPUT\"},{\"name\":\"actions.capability.WEB_BROWSER\"}]},\"isInSandbox\":true,\"availableSurfaces\":[{\"capabilities\":[{\"name\":\"actions.capability.AUDIO_OUTPUT\"},{\"name\":\"actions.capability.SCREEN_OUTPUT\"},{\"name\":\"actions.capability.WEB_BROWSER\"}]}]}.",
   "insertId": "f9fzrtf3hjgn4",
   "resource": {
     "type": "assistant_action",
     "labels": {
       "project_id": "speechbank-e8a15",
       "version_id": "",
       "action_id": "actions.intent.MAIN"
     }
   },
   "timestamp": "2019-02-21T13:47:56.713587946Z",
   "severity": "DEBUG",
   "labels": {
     "channel": "preview",
     "source": "AOG_REQUEST_RESPONSE",
     "querystream": "GOOGLE_USER"
   },
   "logName": "projects/speechbank-e8a15/logs/actions.googleapis.com%2Factions",
   "trace": "projects/366800784520/traces/ABwppHE35s8T6qSdaaCMNiWuMdY7UsvQ3sHbLZJOQkVA4AFD2nhKuqTTvoJTkVh7yU81GCHbvlfZTxmULLd4Ug",
   "receiveTimestamp": "2019-02-21T13:47:57.205496026Z"
 },
 {
   "textPayload": "Received response from agent with body: HTTP/1.1 200 OK\r\nServer: nginx/1.13.6\r\nDate: Thu, 21 Feb 2019 13:47:57 GMT\r\nContent-Type: application/json;charset=UTF-8\r\nContent-Length: 426\r\nX-Cloud-Trace-Context: d8cb97627afa1d2977b9f567f29598de/11157405402824233090;o=0\r\nGoogle-Actions-API-Version: 2\r\nX-SHARD: shard-2\r\nVia: 1.1 google\r\nAlt-Svc: clear\r\n\r\n{\"conversationToken\":\"[\\\"_actions_on_google\\\"]\",\"expectUserResponse\":true,\"expectedInputs\":[{\"inputPrompt\":{},\"possibleIntents\":[{\"intent\":\"actions.intent.SIGN_IN\",\"inputValueData\":{\"@type\":\"type.googleapis.com/google.actions.v2.SignInValueSpec\"}}]}],\"responseMetadata\":{\"status\":{\"message\":\"Success (200)\"},\"queryMatchInfo\":{\"queryMatched\":true,\"intent\":\"f645f492-f6dc-4e7e-8da6-45711c654ad0\"}},\"userStorage\":\"{\\\"data\\\":{}}\"}.",
   "insertId": "f9fzrtf3hjgn5",
   "resource": {
     "type": "assistant_action",
     "labels": {
       "version_id": "",
       "action_id": "actions.intent.MAIN",
       "project_id": "speechbank-e8a15"
     }
   },
   "timestamp": "2019-02-21T13:47:57.190979036Z",
   "severity": "DEBUG",
   "labels": {
     "source": "AOG_REQUEST_RESPONSE",
     "querystream": "GOOGLE_USER",
     "channel": "preview"
   },
   "logName": "projects/speechbank-e8a15/logs/actions.googleapis.com%2Factions",
   "trace": "projects/366800784520/traces/ABwppHE35s8T6qSdaaCMNiWuMdY7UsvQ3sHbLZJOQkVA4AFD2nhKuqTTvoJTkVh7yU81GCHbvlfZTxmULLd4Ug",
   "receiveTimestamp": "2019-02-21T13:47:57.205496026Z"
 },
 {
   "textPayload": "Sending request with post data: {\"user\":{\"userId\":\"ABwppHFQHUBr0RrWA_OuL-kK2sxTPUvQtL3D-x2Ydr-7uxLt9zzEFzJrGB-X96d9XY8k9XTJj-RUg9WpzGB9jg\",\"accessToken\":\"token1\",\"locale\":\"en-US\",\"lastSeen\":\"2019-02-20T21:32:22Z\",\"userStorage\":\"{\\\"data\\\":{}}\"},\"conversation\":{\"conversationId\":\"ABwppHE35s8T6qSdaaCMNiWuMdY7UsvQ3sHbLZJOQkVA4AFD2nhKuqTTvoJTkVh7yU81GCHbvlfZTxmULLd4Ug\",\"type\":\"ACTIVE\",\"conversationToken\":\"[\\\"_actions_on_google\\\"]\"},\"inputs\":[{\"intent\":\"actions.intent.SIGN_IN\",\"rawInputs\":[{}],\"arguments\":[{\"name\":\"SIGN_IN\",\"extension\":{\"@type\":\"type.googleapis.com/google.actions.v2.SignInValue\",\"status\":\"OK\"}},{\"name\":\"text\"}]}],\"surface\":{\"capabilities\":[{\"name\":\"actions.capability.WEB_BROWSER\"},{\"name\":\"actions.capability.SCREEN_OUTPUT\"},{\"name\":\"actions.capability.MEDIA_RESPONSE_AUDIO\"},{\"name\":\"actions.capability.AUDIO_OUTPUT\"}]},\"isInSandbox\":true,\"availableSurfaces\":[{\"capabilities\":[{\"name\":\"actions.capability.WEB_BROWSER\"},{\"name\":\"actions.capability.SCREEN_OUTPUT\"},{\"name\":\"actions.capability.AUDIO_OUTPUT\"}]}]}.",
   "insertId": "120k9w1f3jmw55",
   "resource": {
     "type": "assistant_action",
     "labels": {
       "version_id": "",
       "action_id": "actions.intent.SIGN_IN",
       "project_id": "speechbank-e8a15"
     }
   },
   "timestamp": "2019-02-21T13:48:28.768213970Z",
   "severity": "DEBUG",
   "labels": {
     "source": "AOG_REQUEST_RESPONSE",
     "querystream": "GOOGLE_USER",
     "channel": "preview"
   },
   "logName": "projects/speechbank-e8a15/logs/actions.googleapis.com%2Factions",
   "trace": "projects/366800784520/traces/ABwppHE35s8T6qSdaaCMNiWuMdY7UsvQ3sHbLZJOQkVA4AFD2nhKuqTTvoJTkVh7yU81GCHbvlfZTxmULLd4Ug",
   "receiveTimestamp": "2019-02-21T13:48:28.912828815Z"
 },
 {
   "textPayload": "Received response from agent with body: HTTP/1.1 200 OK\r\nServer: nginx/1.13.6\r\nDate: Thu, 21 Feb 2019 13:48:28 GMT\r\nContent-Type: application/json;charset=UTF-8\r\nContent-Length: 570\r\nX-Cloud-Trace-Context: 664d8fdaf9cd3d880d41f11ac2176e0e/16724608154084655134;o=0\r\nGoogle-Actions-API-Version: 2\r\nAssistant-Interaction-Error-Code: -1\r\nAssistant-Interaction-Error-Message: Failed to parse Dialogflow response into AppResponse because of empty speech response\r\nX-SHARD: shard-2\r\nVia: 1.1 google\r\nAlt-Svc: clear\r\n\r\n{\n  \"responseMetadata\": {\n    \"status\": {\n      \"code\": 10,\n      \"message\": \"Failed to parse Dialogflow response into AppResponse because of empty speech response\",\n      \"details\": [{\n        \"@type\": \"type.googleapis.com/google.protobuf.Value\",\n        \"value\": \"{\\\"id\\\":\\\"5d4bed8d-c58c-4429-9838-f758d6f335f2\\\",\\\"timestamp\\\":\\\"2019-02-21T13:48:28.806Z\\\",\\\"lang\\\":\\\"en-us\\\",\\\"result\\\":{},\\\"status\\\":{\\\"code\\\":200,\\\"errorType\\\":\\\"success\\\"},\\\"sessionId\\\":\\\"ABwppHE35s8T6qSdaaCMNiWuMdY7UsvQ3sHbLZJOQkVA4AFD2nhKuqTTvoJTkVh7yU81GCHbvlfZTxmULLd4Ug\\\"}\"\n      }]\n    }\n  }\n}.",
   "insertId": "120k9w1f3jmw56",
   "resource": {
     "type": "assistant_action",
     "labels": {
       "project_id": "speechbank-e8a15",
       "version_id": "",
       "action_id": "actions.intent.SIGN_IN"
     }
   },
   "timestamp": "2019-02-21T13:48:28.899033790Z",
   "severity": "DEBUG",
   "labels": {
     "channel": "preview",
     "source": "AOG_REQUEST_RESPONSE",
     "querystream": "GOOGLE_USER"
   },
   "logName": "projects/speechbank-e8a15/logs/actions.googleapis.com%2Factions",
   "trace": "projects/366800784520/traces/ABwppHE35s8T6qSdaaCMNiWuMdY7UsvQ3sHbLZJOQkVA4AFD2nhKuqTTvoJTkVh7yU81GCHbvlfZTxmULLd4Ug",
   "receiveTimestamp": "2019-02-21T13:48:28.912828815Z"
 },
 {
   "textPayload": "MalformedResponse: Failed to parse Dialogflow response into AppResponse because of empty speech response",
   "insertId": "1b6j2e6f39jvuy",
   "resource": {
     "type": "assistant_action",
     "labels": {
       "project_id": "speechbank-e8a15",
       "version_id": "",
       "action_id": "actions.intent.SIGN_IN"
     }
   },
   "timestamp": "2019-02-21T13:48:28.899403302Z",
   "severity": "ERROR",
   "labels": {
     "channel": "preview",
     "source": "JSON_RESPONSE_VALIDATION",
     "querystream": "GOOGLE_USER"
   },
   "logName": "projects/speechbank-e8a15/logs/actions.googleapis.com%2Factions",
   "trace": "projects/366800784520/traces/ABwppHE35s8T6qSdaaCMNiWuMdY7UsvQ3sHbLZJOQkVA4AFD2nhKuqTTvoJTkVh7yU81GCHbvlfZTxmULLd4Ug",
   "receiveTimestamp": "2019-02-21T13:48:28.914061262Z"
 }
]

根据上面的设置描述，是否有人能帮我们找出导致MalformedResponse异常的原因以及需要更改什么来消除它。

这一例外是如此的模糊，它带来了无数的问题，并使一个人的头脑结束，从哪里开始接近它。我只在这里列举几个，并希望得到一些指导。

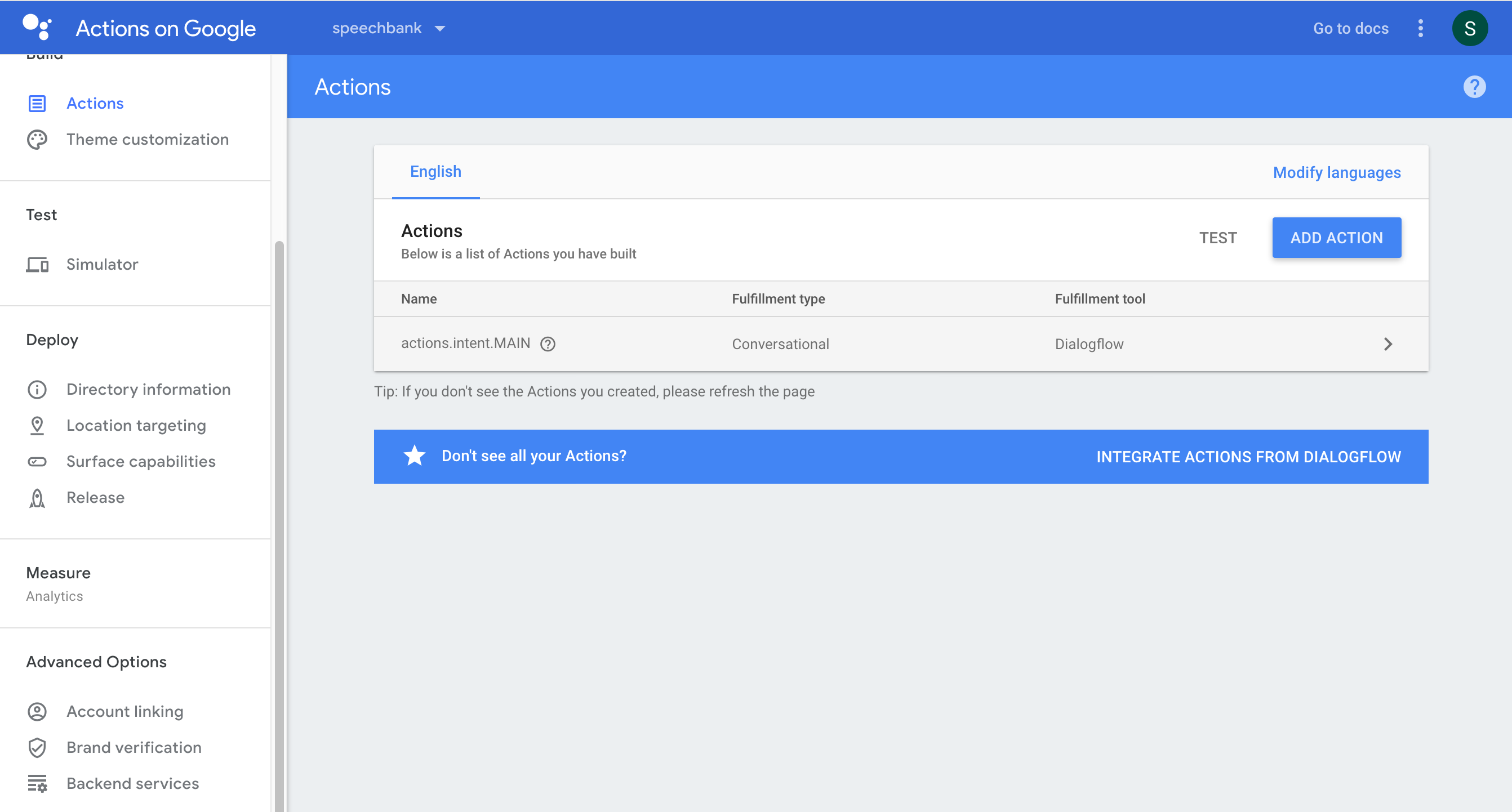

  • AoG中的意图名称与对话框流之间是否存在关联？他们应该遵循任何命名规则吗？造成这一错误的原因是否在于他们不知何故被错了名？
  • 是否可以将MalformedResponse解释为响应中缺少特定字段？由于谷歌选择公开不同消息格式(对话框流和AppResponse)之间转换的内部工作方式，是否有一个清单列出了对话框响应需要哪些字段？
  • 这是否意味着即使在这种情况下正在传递的OAuth消息也需要包含一些语音？
  • 最初，从对话框中接收到的userId似乎总是null，但是查询文本似乎填充了GOOGLE_ASSISTANT_WELCOME，因此我们根据假定它是null启动帐户链接流逻辑。这是一个正确的假设吗？
  • 在什么情况下，userId最初将被填充(比如在Alexa中，它是在为用户启用一项技能时自动生成的)，这样就可以触发上面提到的else条件？
  • 如果由身份验证基础结构发出并得到AoG支持的OAuth令牌是以任何特定的格式(即OIDC或JWT )发布的。可能是随机字符串吗？token1在AoG术语中是否仍然是一个有效的标记(就像在Alexa中那样)？
  • 是否有错误配置的Java意图处理程序？我们应该对来自AoG帐户链接流的响应中的哪个意图名称作出反应？
  • 是否有一个全部捕获的意图名称，它的处理程序可以合并到Java应用程序中，以便进一步调试上面的内容？
  • 什么是“空的语音反应”，我们没有提供哪些价值，是预期的，并造成破坏？
  • 我们配置的任何不应该配置的东西？

如果有关系的话，以下是我们web钩子的日志：

代码语言：javascript
复制
     [java] 02-21-2019 13:47:57 [qtp2056234595-127] INFO  domain.lola.user.utils.http.ControllerUtils [toString:30]    - Received AoG Request {
 [java]   "responseId": "0156911c-d7e8-405b-bf8f-f23320c02030",
 [java]   "queryResult": {
 [java]     "queryText": "GOOGLE_ASSISTANT_WELCOME",
 [java]     "parameters": {
 [java]       "any": ""
 [java]     },
 [java]     "allRequiredParamsPresent": true,
 [java]     "fulfillmentMessages": [{
 [java]       "text": {
 [java]         "text": [""]
 [java]       }
 [java]     }],
 [java]     "outputContexts": [{
 [java]       "name": "projects/speechbank-e8a15/agent/sessions/ABwppHE35s8T6qSdaaCMNiWuMdY7UsvQ3sHbLZJOQkVA4AFD2nhKuqTTvoJTkVh7yU81GCHbvlfZTxmULLd4Ug/contexts/google_assistant_welcome",
 [java]       "parameters": {
 [java]         "any.original": "",
 [java]         "any": ""
 [java]       }
 [java]     }, {
 [java]       "name": "projects/speechbank-e8a15/agent/sessions/ABwppHE35s8T6qSdaaCMNiWuMdY7UsvQ3sHbLZJOQkVA4AFD2nhKuqTTvoJTkVh7yU81GCHbvlfZTxmULLd4Ug/contexts/actions_capability_screen_output",
 [java]       "parameters": {
 [java]         "any.original": "",
 [java]         "any": ""
 [java]       }
 [java]     }, {
 [java]       "name": "projects/speechbank-e8a15/agent/sessions/ABwppHE35s8T6qSdaaCMNiWuMdY7UsvQ3sHbLZJOQkVA4AFD2nhKuqTTvoJTkVh7yU81GCHbvlfZTxmULLd4Ug/contexts/actions_capability_audio_output",
 [java]       "parameters": {
 [java]         "any.original": "",
 [java]         "any": ""
 [java]       }
 [java]     }, {
 [java]       "name": "projects/speechbank-e8a15/agent/sessions/ABwppHE35s8T6qSdaaCMNiWuMdY7UsvQ3sHbLZJOQkVA4AFD2nhKuqTTvoJTkVh7yU81GCHbvlfZTxmULLd4Ug/contexts/google_assistant_input_type_voice",
 [java]       "parameters": {
 [java]         "any.original": "",
 [java]         "any": ""
 [java]       }
 [java]     }, {
 [java]       "name": "projects/speechbank-e8a15/agent/sessions/ABwppHE35s8T6qSdaaCMNiWuMdY7UsvQ3sHbLZJOQkVA4AFD2nhKuqTTvoJTkVh7yU81GCHbvlfZTxmULLd4Ug/contexts/actions_capability_web_browser",
 [java]       "parameters": {
 [java]         "any.original": "",
 [java]         "any": ""
 [java]       }
 [java]     }, {
 [java]       "name": "projects/speechbank-e8a15/agent/sessions/ABwppHE35s8T6qSdaaCMNiWuMdY7UsvQ3sHbLZJOQkVA4AFD2nhKuqTTvoJTkVh7yU81GCHbvlfZTxmULLd4Ug/contexts/actions_capability_media_response_audio",
 [java]       "parameters": {
 [java]         "any.original": "",
 [java]         "any": ""
 [java]       }
 [java]     }],
 [java]     "intent": {
 [java]       "name": "projects/speechbank-e8a15/agent/intents/f645f492-f6dc-4e7e-8da6-45711c654ad0",
 [java]       "displayName": "RawText"
 [java]     },
 [java]     "intentDetectionConfidence": 1.0,
 [java]     "languageCode": "en-us"
 [java]   },
 [java]   "originalDetectIntentRequest": {
 [java]     "source": "google",
 [java]     "version": "2",
 [java]     "payload": {
 [java]       "isInSandbox": true,
 [java]       "surface": {
 [java]         "capabilities": [{
 [java]           "name": "actions.capability.AUDIO_OUTPUT"
 [java]         }, {
 [java]           "name": "actions.capability.MEDIA_RESPONSE_AUDIO"
 [java]         }, {
 [java]           "name": "actions.capability.SCREEN_OUTPUT"
 [java]         }, {
 [java]           "name": "actions.capability.WEB_BROWSER"
 [java]         }]
 [java]       },
 [java]       "inputs": [{
 [java]         "rawInputs": [{
 [java]           "query": "open speech Bank",
 [java]           "inputType": "VOICE"
 [java]         }],
 [java]         "intent": "actions.intent.MAIN"
 [java]       }],
 [java]       "user": {
 [java]         "userStorage": "{\"data\":{}}",
 [java]         "lastSeen": "2019-02-20T21:32:22Z",
 [java]         "locale": "en-US",
 [java]         "userId": "ABwppHFQHUBr0RrWA_OuL-kK2sxTPUvQtL3D-x2Ydr-7uxLt9zzEFzJrGB-X96d9XY8k9XTJj-RUg9WpzGB9jg"
 [java]       },
 [java]       "conversation": {
 [java]         "conversationId": "ABwppHE35s8T6qSdaaCMNiWuMdY7UsvQ3sHbLZJOQkVA4AFD2nhKuqTTvoJTkVh7yU81GCHbvlfZTxmULLd4Ug",
 [java]         "type": "NEW"
 [java]       },
 [java]       "availableSurfaces": [{
 [java]         "capabilities": [{
 [java]           "name": "actions.capability.AUDIO_OUTPUT"
 [java]         }, {
 [java]           "name": "actions.capability.SCREEN_OUTPUT"
 [java]         }, {
 [java]           "name": "actions.capability.WEB_BROWSER"
 [java]         }]
 [java]       }]
 [java]     }
 [java]   },
 [java]   "session": "projects/speechbank-e8a15/agent/sessions/ABwppHE35s8T6qSdaaCMNiWuMdY7UsvQ3sHbLZJOQkVA4AFD2nhKuqTTvoJTkVh7yU81GCHbvlfZTxmULLd4Ug"
 [java] }
 [java] 02-21-2019 13:47:57 [qtp2056234595-127] INFO  domain.lola.user.utils.actionsongoogle.AoGApp [launchRequestHandler:26]    - userId=null
 [java] 02-21-2019 13:47:57 [qtp2056234595-127] INFO  domain.lola.user.utils.actionsongoogle.AoGApp [launchRequestHandler:28]    - queryText=GOOGLE_ASSISTANT_WELCOME
 [java] 02-21-2019 13:47:57 [qtp2056234595-127] INFO  domain.lola.user.utils.actionsongoogle.AoGBotService [handlePOST:103]    - Generated response:
 [java]  {
 [java]   "outputContexts" : [ {
 [java]     "lifespanCount" : 99,
 [java]     "name" : "projects/speechbank-e8a15/agent/sessions/ABwppHE35s8T6qSdaaCMNiWuMdY7UsvQ3sHbLZJOQkVA4AFD2nhKuqTTvoJTkVh7yU81GCHbvlfZTxmULLd4Ug/contexts/_actions_on_google",
 [java]     "parameters" : {
 [java]       "data" : "{}"
 [java]     }
 [java]   } ],
 [java]   "payload" : {
 [java]     "google" : {
 [java]       "expectUserResponse" : true,
 [java]       "isSsml" : false,
 [java]       "systemIntent" : {
 [java]         "intent" : "actions.intent.SIGN_IN",
 [java]         "data" : {
 [java]           "@type" : "type.googleapis.com/google.actions.v2.SignInValueSpec"
 [java]         }
 [java]       },
 [java]       "userStorage" : "{\"data\":{}}"
 [java]     }
 [java]   }
 [java] }
alexa-skills-kit
account-linking
oauth-2.0
dialogflow-es
actions-on-google
EN

回答 1

Stack Overflow用户

回答已采纳

发布于 2019-02-22 14:12:54

这条线

代码语言：javascript
复制
responseBuilder.add(new SignIn().setContext(speech));

将使用SIGN_IN事件创建您的响应。因此，在您的actions_intent_SIGN_IN，中，您需要添加另一个意图，在dialogFlow中您也需要实现它，这里可以找到更多信息。

示例dialogFlow：

​

票数 1
EN
页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：

https://stackoverflow.com/questions/54810597

复制
相关文章

相似问题

领券

腾讯云开发者

扫码关注腾讯云开发者

扫码关注腾讯云开发者

领取腾讯云代金券

热门产品

热门推荐

更多推荐

Copyright © 2013 - 2026 Tencent Cloud. All Rights Reserved. 腾讯云 版权所有

深圳市腾讯计算机系统有限公司 ICP备案/许可证号：粤B2-20090059 粤公网安备44030502008569号

腾讯云计算（北京）有限责任公司 京ICP证150476号 |  京ICP备11018762号

问题归档专栏文章快讯文章归档关键词归档开发者手册归档开发者手册 Section 归档
