1 理论

基本概念灰度质心法（Gray-scale Centroid Method）是一种基于图像灰度分布的加权平均位置计算方法。它将图像的灰度值作为质量权重，计算图像的"质量中心"。数学原理

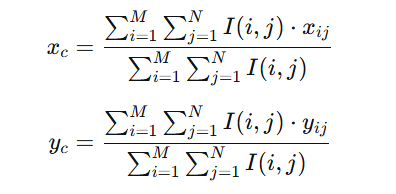

1. 离散图像的计算公式

对于离散的数字图像，灰度质心的计算公式为：

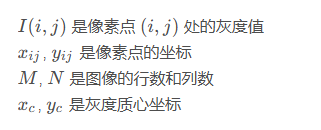

其中：

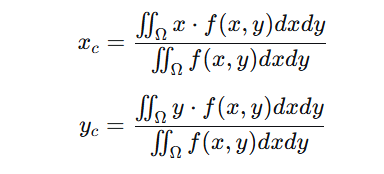

2. 连续情况下的推广

对于连续图像，公式可写为：

其中 f(x,y)是图像的灰度分布函数。

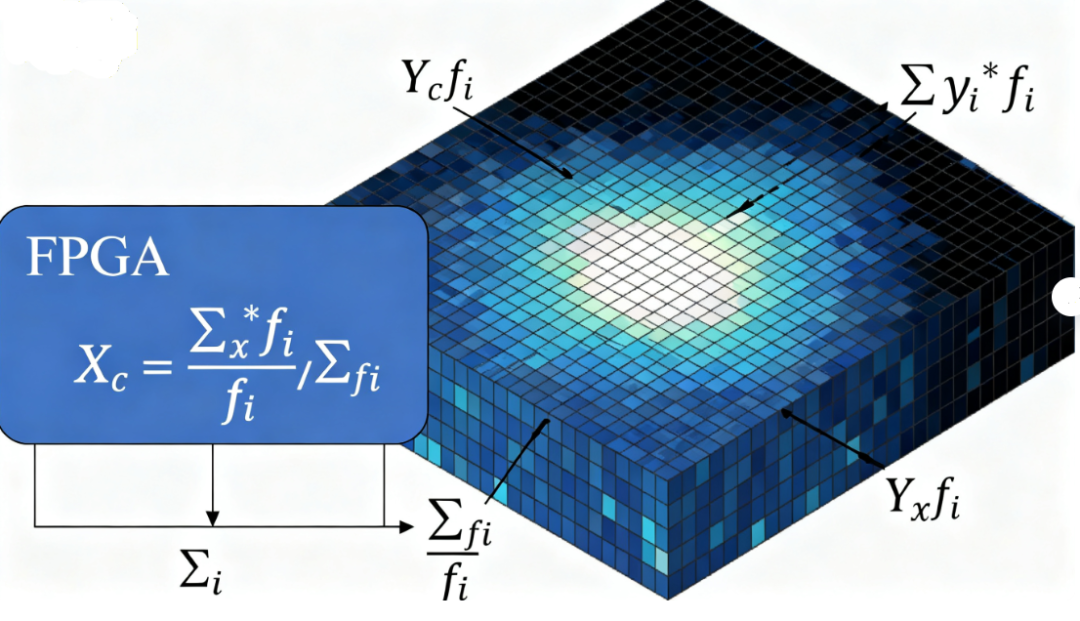

物理意义

类比物理学中的质心概念

2 matlab 实现灰度质心法

% 读取图像并转换为灰度图
I = imread('your_image.jpg');
if size(I, 3)==3
    I = rgb2gray(I);
end

% 将图像数据转换为double类型
I = double(I);

% 获取图像尺寸
[rows, cols]= size(I);

% 创建坐标网格
[x, y]= meshgrid(1:cols, 1:rows);

% 计算总灰度值
total_intensity = sum(I(:));

% 计算灰度质心坐标
centroid_x = sum(sum(I .* x)) / total_intensity;
centroid_y = sum(sum(I .* y)) / total_intensity;

% 显示结果
fprintf('灰度质心坐标: (%.2f, %.2f)\n', centroid_x, centroid_y);

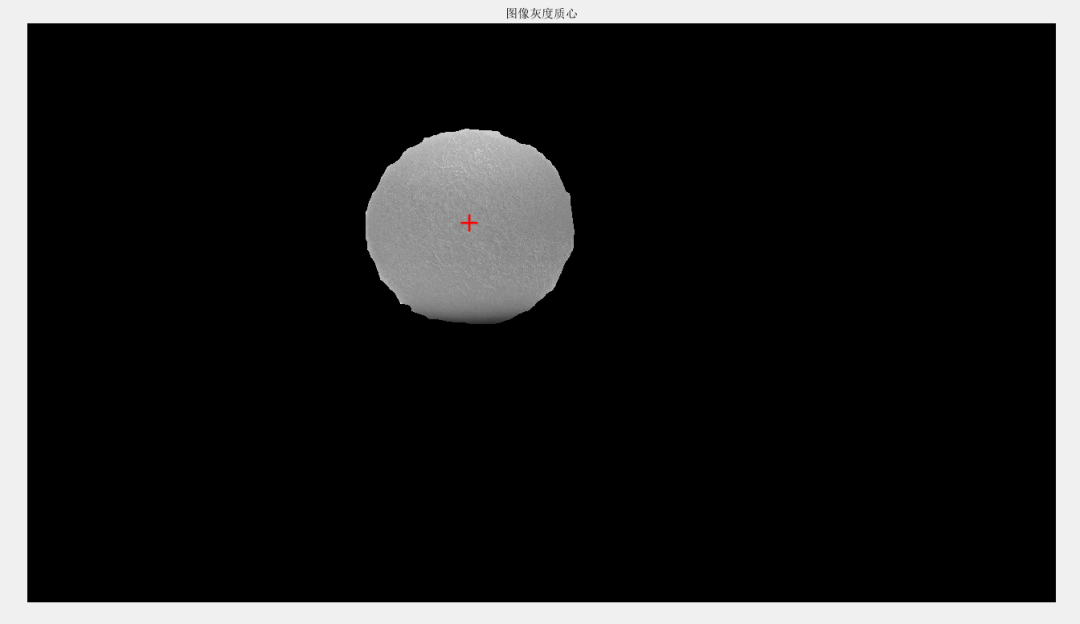

% 可视化显示
figure;
imshow(uint8(I));
hold on;
plot(centroid_x, centroid_y, 'r+', 'MarkerSize', 15, 'LineWidth', 2);
title('图像灰度质心');

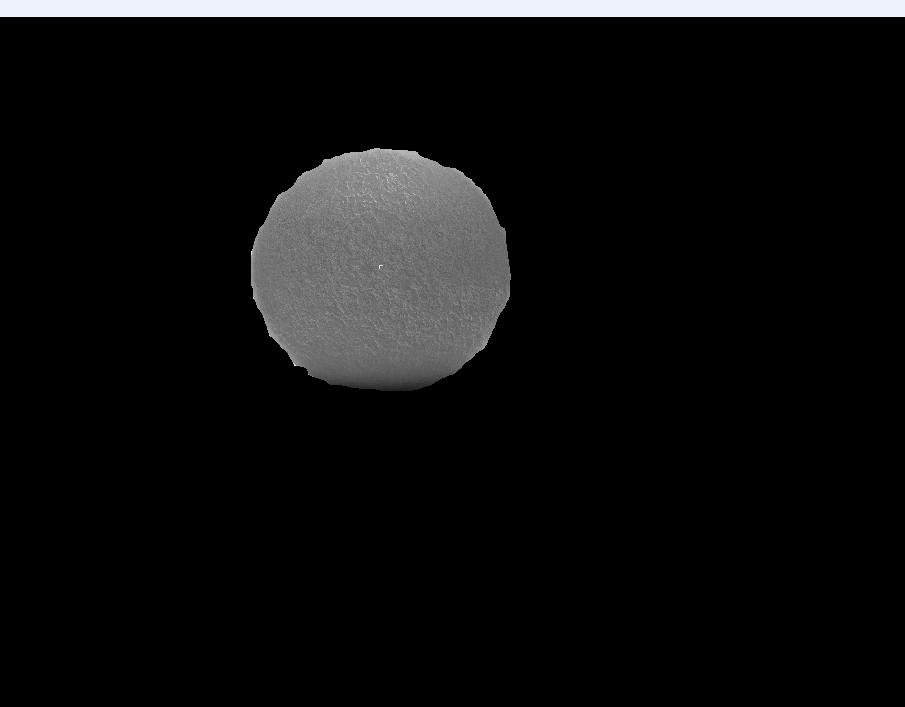

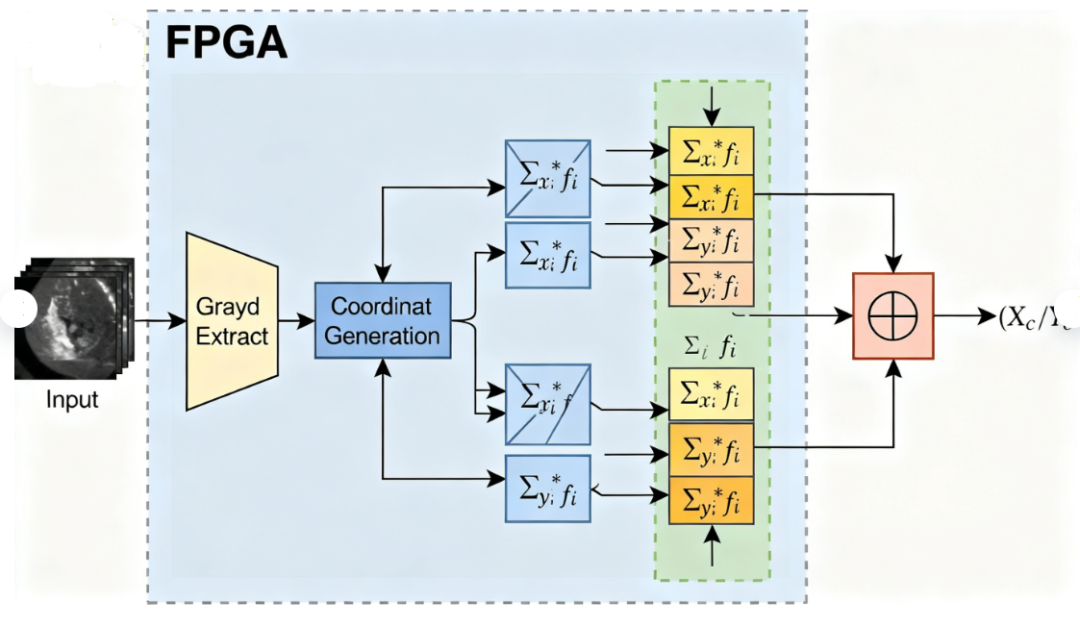

3 FPGA 实现灰度质心法求取质心

`timescale 1ns/1ps
module	totalmass(
	input				 pixelclk,
        input                            reset_n,
        input [11:0]                     hcount,
        input [11:0]                     vcount,
  	input          [7:0]             i_gray,
  	input				i_hsync,
	input				i_vsync,
	input				i_de,
        output  reg [31:0]              centerx,
        output  reg [31:0]              centery,
        output  reg                     out_flag
	);
parameter  IDLE =2'd0,
           TOTAL=2'd1,
           CALC =2'd2,
           OUT =2'd3;
reg [31:0] totalgray;
reg [31:0] totalcenterx;
reg [31:0] totalcentery;
reg [1:0] state;
always @(posedge pixelclk or negedge reset_n) begin
   if(!reset_n) begin
     totalgray <= 32'd0;
     centerx<= 32'd0;
     centery<= 32'd0;
     out_flag <= 1'b0;
     totalcenterx<= 32'd0;
     totalcentery<= 32'd0;
     state<=IDLE;
    end
    else  begin
      case(state)
         IDLE:begin
              if(i_vsync==1'b1) begin
                 state <= TOTAL;
              end
              else begin
                totalgray <= 32'd0;
                totalcenterx<= 32'd0;
                totalcentery<= 32'd0;
              end
         end
         TOTAL:begin
                if(i_vsync==1'b0) begin
                     state <= CALC;
                end
                else if(i_de==1'b1) begin
                 totalgray <= totalgray + i_gray;
                 totalcenterx <= totalcenterx + hcount*i_gray;
                 totalcentery <= totalcentery + vcount*i_gray;
               end
         end
         CALC:begin
           if(totalgray!=0) begin
             centerx <= totalcenterx/totalgray;
             centery <= totalcentery/totalgray;
             out_flag <= 1'b1;
             state <= OUT;
           end
           else begin
             out_flag <= 1'b0;
             state <= IDLE;
           end
         end
         OUT:begin
            out_flag <= 1'b0;
            state <= IDLE;
         end
      endcase
    end
end
endmodule
