上一篇我们掌握了sys租户的三种连接方式，作为集群的“总管理员”，sys租户最核心的能力之一就是集群性能诊断。

不管是日常巡检、故障排查还是容量规划，都离不开性能诊断。本篇完全基于OceanBase官方demo，带你用黑屏命令快速诊断集群：CPU、内存、磁盘、IO四大核心指标，一键定位高负载租户、异常会话、合并转储状态，新手照着敲就能用。

一、先搞懂：性能诊断看什么

OceanBase集群性能，核心看4大核心资源：

CPU：是否过载、哪个租户占比高

内存：MemStore占用、是否触发冻结、各模块内存分布

磁盘：数据盘/日志盘使用率、租户磁盘占用

IO/后台任务：合并、转储、备份、导入导出是否影响性能

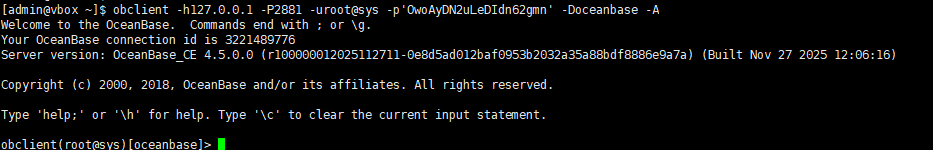

所有诊断操作，都在sys租户下执行，先登录：

# 登录sys租户（密码替换为你的）
obclient -h127.0.0.1 -P2881 -uroot@sys -p'OwoAyDN2uLeDIdn62gmn' -Doceanbase -A

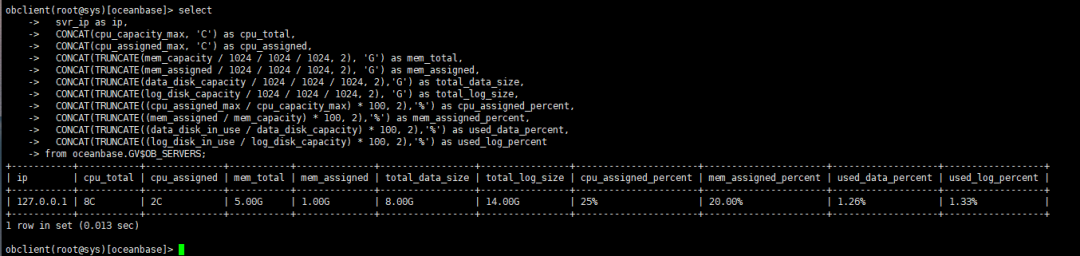

二、核心诊断1：服务器资源总览（最常用）

直接查看OBServer的CPU、内存、数据盘、日志盘分配与使用率，一眼看懂集群负载。

-- 查看节点资源总览（CPU/内存/磁盘使用率）
select
  svr_ip as ip,
  CONCAT(cpu_capacity_max, 'C') as cpu_total,
  CONCAT(cpu_assigned_max, 'C') as cpu_assigned,
  CONCAT(TRUNCATE(mem_capacity / 1024 / 1024 / 1024, 2), 'G') as mem_total,
  CONCAT(TRUNCATE(mem_assigned / 1024 / 1024 / 1024, 2), 'G') as mem_assigned,
  CONCAT(TRUNCATE(data_disk_capacity / 1024 / 1024 / 1024, 2),'G') as total_data_size,
  CONCAT(TRUNCATE(log_disk_capacity / 1024 / 1024 / 1024, 2), 'G') as total_log_size,
  CONCAT(TRUNCATE((cpu_assigned_max / cpu_capacity_max) * 100, 2),'%') as cpu_assigned_percent,
  CONCAT(TRUNCATE((mem_assigned / mem_capacity) * 100, 2),'%') as mem_assigned_percent,
  CONCAT(TRUNCATE((data_disk_in_use / data_disk_capacity) * 100, 2),'%') as used_data_percent,
  CONCAT(TRUNCATE((log_disk_in_use / log_disk_capacity) * 100, 2),'%') as used_log_percent
from oceanbase.GV$OB_SERVERS;

结果解读:

cpu_assigned_percent：CPU分配率，过高会导致业务卡顿
mem_assigned_percent：内存分配率，超过80%需警惕
used_data_percent：数据盘使用率，超过85%必须扩容
used_log_percent：日志盘使用率，过高会影响写入

三、核心诊断 2：磁盘使用率细分排查

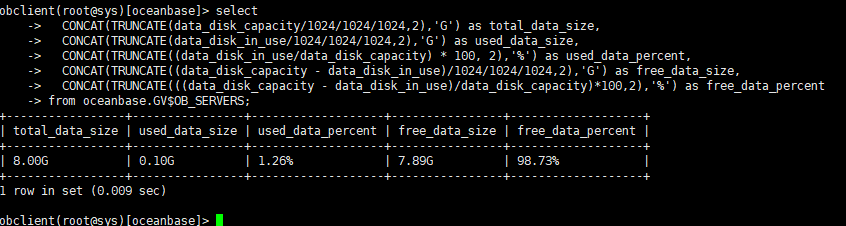

3.1 数据盘使用详情

-- 查看数据盘总使用情况
select
  CONCAT(TRUNCATE(data_disk_capacity/1024/1024/1024,2),'G') as total_data_size,
  CONCAT(TRUNCATE(data_disk_in_use/1024/1024/1024,2),'G') as used_data_size,
  CONCAT(TRUNCATE((data_disk_in_use/data_disk_capacity) * 100, 2),'%') as used_data_percent,
  CONCAT(TRUNCATE((data_disk_capacity - data_disk_in_use)/1024/1024/1024,2),'G') as free_data_size,
  CONCAT(TRUNCATE(((data_disk_capacity - data_disk_in_use)/data_disk_capacity)*100,2),'%') as free_data_percent
from oceanbase.GV$OB_SERVERS;

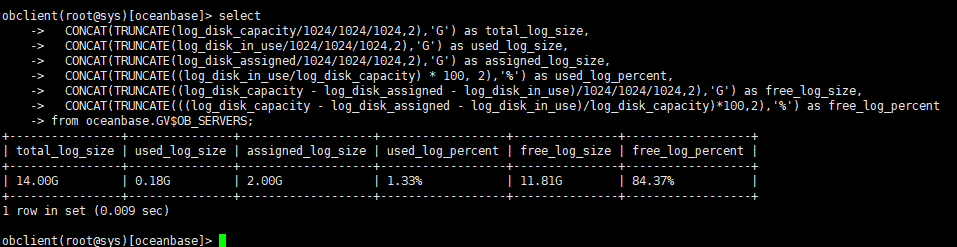

3.2 日志盘使用详情

-- 查看日志盘总使用情况
select
  CONCAT(TRUNCATE(log_disk_capacity/1024/1024/1024,2),'G') as total_log_size,
  CONCAT(TRUNCATE(log_disk_in_use/1024/1024/1024,2),'G') as used_log_size,
  CONCAT(TRUNCATE(log_disk_assigned/1024/1024/1024,2),'G') as assigned_log_size,
  CONCAT(TRUNCATE((log_disk_in_use/log_disk_capacity) * 100, 2),'%') as used_log_percent,
  CONCAT(TRUNCATE((log_disk_capacity - log_disk_assigned - log_disk_in_use)/1024/1024/1024,2),'G') as free_log_size,
  CONCAT(TRUNCATE(((log_disk_capacity - log_disk_assigned - log_disk_in_use)/log_disk_capacity)*100,2),'%') as free_log_percent
from oceanbase.GV$OB_SERVERS;

磁盘高负载优化建议:

数据盘满：扩容磁盘、清理历史数据、分区归档
日志盘满：清理过期日志、调整日志保留策略

四、核心诊断3：定位高CPU占用租户

CPU高是最常见故障，用这条SQL一键定位耗CPU的租户（每100value=1核CPU）。

-- 查找CPU占用超过10核的租户（value>1000）
select * from gv$sysstat where con_id>1000 and name = 'cpu usage' and value > 1000;

CPU高负载优化建议

优化高消耗SQL
对SQL做限流
扩容租户CPU配额
错峰执行批处理任务

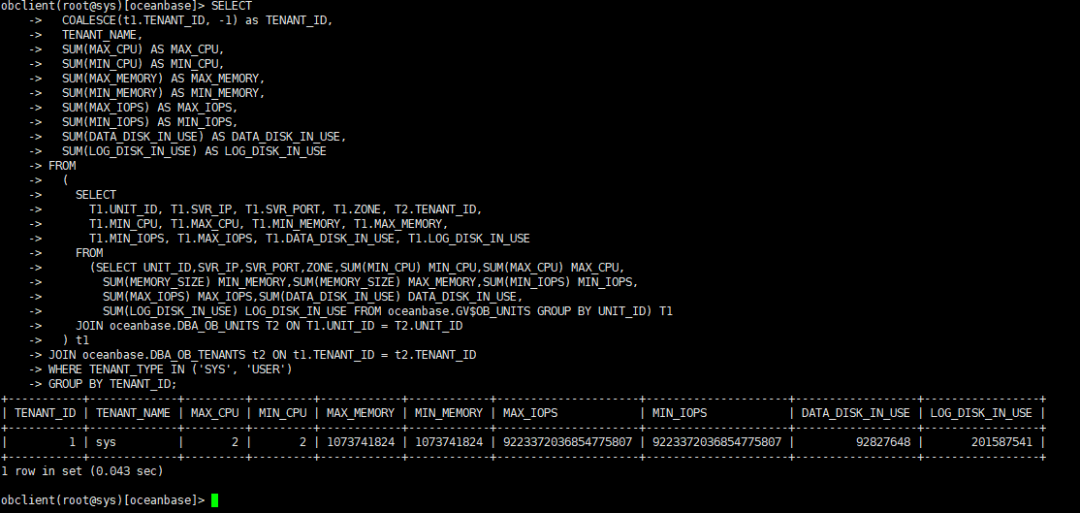

五、核心诊断4：租户级资源占用排行

查看所有租户的CPU、内存、磁盘占用，定位资源大户。

-- 查看各租户资源使用详情
SELECT
  COALESCE(t1.TENANT_ID, -1) as TENANT_ID,
  TENANT_NAME,
  SUM(MAX_CPU) AS MAX_CPU,
  SUM(MIN_CPU) AS MIN_CPU,
  SUM(MAX_MEMORY) AS MAX_MEMORY,
  SUM(MIN_MEMORY) AS MIN_MEMORY,
  SUM(MAX_IOPS) AS MAX_IOPS,
  SUM(MIN_IOPS) AS MIN_IOPS,
  SUM(DATA_DISK_IN_USE) AS DATA_DISK_IN_USE,
  SUM(LOG_DISK_IN_USE) AS LOG_DISK_IN_USE
FROM
  (
    SELECT
      T1.UNIT_ID, T1.SVR_IP, T1.SVR_PORT, T1.ZONE, T2.TENANT_ID,
      T1.MIN_CPU, T1.MAX_CPU, T1.MIN_MEMORY, T1.MAX_MEMORY,
      T1.MIN_IOPS, T1.MAX_IOPS, T1.DATA_DISK_IN_USE, T1.LOG_DISK_IN_USE
    FROM
      (SELECT UNIT_ID,SVR_IP,SVR_PORT,ZONE,SUM(MIN_CPU) MIN_CPU,SUM(MAX_CPU) MAX_CPU,
        SUM(MEMORY_SIZE) MIN_MEMORY,SUM(MEMORY_SIZE) MAX_MEMORY,SUM(MIN_IOPS) MIN_IOPS,
        SUM(MAX_IOPS) MAX_IOPS,SUM(DATA_DISK_IN_USE) DATA_DISK_IN_USE,
        SUM(LOG_DISK_IN_USE) LOG_DISK_IN_USE FROM oceanbase.GV$OB_UNITS GROUP BY UNIT_ID) T1
    JOIN oceanbase.DBA_OB_UNITS T2 ON T1.UNIT_ID = T2.UNIT_ID
  ) t1
JOIN oceanbase.DBA_OB_TENANTS t2 ON t1.TENANT_ID = t2.TENANT_ID
WHERE TENANT_TYPE IN ('SYS', 'USER')
GROUP BY TENANT_ID;

六、核心诊断5：内存使用深度排查

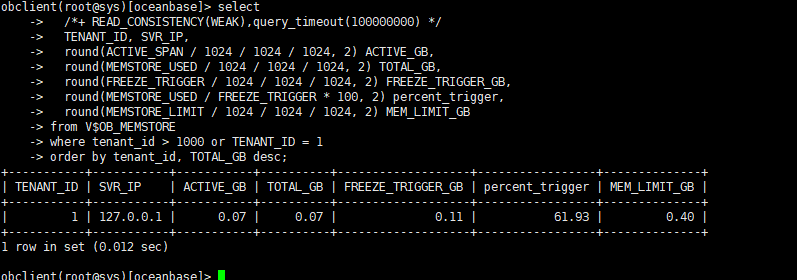

6.1 MemStore内存使用

MemStore是写入内存区域，占比过高会触发冻结，影响写入。

-- 查看各租户MemStore使用情况
select
  /*+ READ_CONSISTENCY(WEAK),query_timeout(100000000) */
  TENANT_ID, SVR_IP,
  round(ACTIVE_SPAN / 1024 / 1024 / 1024, 2) ACTIVE_GB,
  round(MEMSTORE_USED / 1024 / 1024 / 1024, 2) TOTAL_GB,
  round(FREEZE_TRIGGER / 1024 / 1024 / 1024, 2) FREEZE_TRIGGER_GB,
  round(MEMSTORE_USED / FREEZE_TRIGGER * 100, 2) percent_trigger,
  round(MEMSTORE_LIMIT / 1024 / 1024 / 1024, 2) MEM_LIMIT_GB
from V$OB_MEMSTORE
where tenant_id > 1000 or TENANT_ID = 1
order by tenant_id, TOTAL_GB desc;

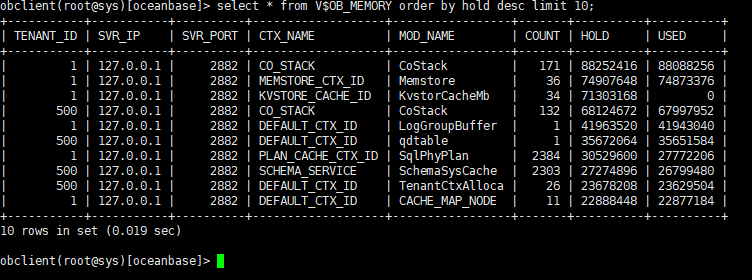

6.2 内存模块占用Top10

-- 查看内存占用最大的10个模块
select * from V$OB_MEMORY order by hold desc limit 10;

内存高负载优化建议:

扩大租户内存配额
调高转储线程数，加快内存释放
开启写入限速，避免内存暴涨
应用侧降级批任务

七、核心诊断6：会话与连接排查

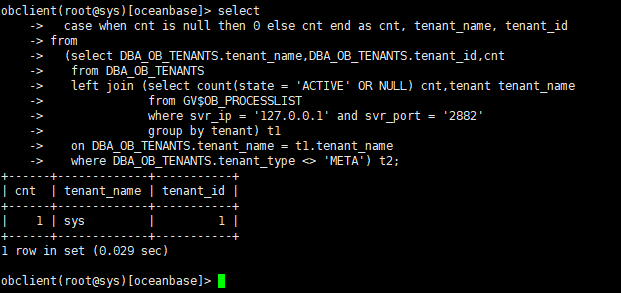

7.1 各租户活跃会话数

-- 查看各租户活跃会话数
select
  case when cnt is null then 0 else cnt end as cnt, tenant_name, tenant_id
from
  (select DBA_OB_TENANTS.tenant_name,DBA_OB_TENANTS.tenant_id,cnt
   from DBA_OB_TENANTS
   left join (select count(state = 'ACTIVE' OR NULL) cnt,tenant tenant_name
              from GV$OB_PROCESSLIST
              where svr_ip = '127.0.0.1' and svr_port = '2882'
              group by tenant) t1
   on DBA_OB_TENANTS.tenant_name = t1.tenant_name
   where DBA_OB_TENANTS.tenant_type <> 'META') t2;

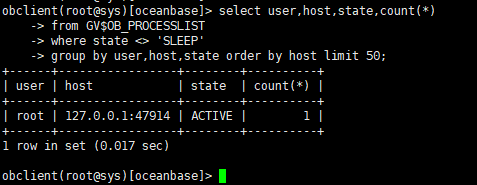

7.2 实时非休眠会话

-- 查看活跃非睡眠会话
select user,host,state,count(*)
from GV$OB_PROCESSLIST
where state <> 'SLEEP'
group by user,host,state order by host limit 50;

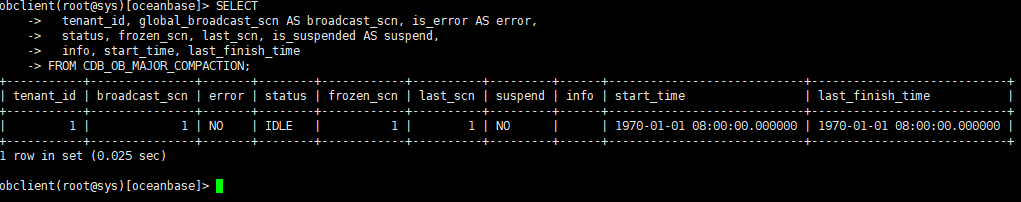

八、核心诊断7：合并与转储状态（后台核心任务）

合并/转储是OB后台关键任务，运行中会占用大量IO/CPU，需排查状态。

-- sys租户查看所有租户合并状态
SELECT
  tenant_id, global_broadcast_scn AS broadcast_scn, is_error AS error,
  status, frozen_scn, last_scn, is_suspended AS suspend,
  info, start_time, last_finish_time
FROM CDB_OB_MAJOR_COMPACTION;

合并高负载优化建议

暂停正在执行的合并
暂停备份、导入导出任务
调低转储 / 迁移并发数
错峰执行后台任务

九、辅助诊断：节点、资源池、RS任务

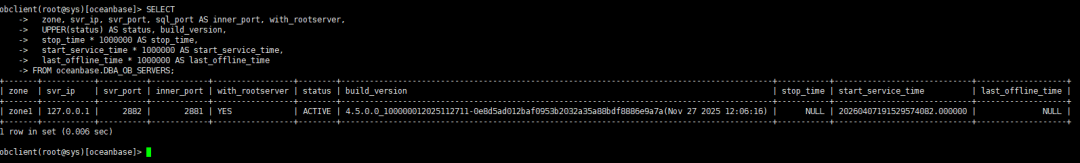

9.1 查看OBServer运行状态

SELECT
  zone, svr_ip, svr_port, sql_port AS inner_port, with_rootserver,
  UPPER(status) AS status, build_version,
  stop_time * 1000000 AS stop_time,
  start_service_time * 1000000 AS start_service_time,
  last_offline_time * 1000000 AS last_offline_time
FROM oceanbase.DBA_OB_SERVERS;

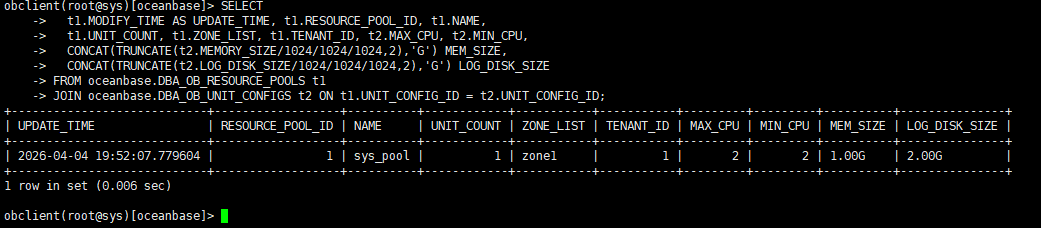

9.2 查看资源池与Unit配置

-- 查看资源池、Unit规格详情
SELECT
  t1.MODIFY_TIME AS UPDATE_TIME, t1.RESOURCE_POOL_ID, t1.NAME,
  t1.UNIT_COUNT, t1.ZONE_LIST, t1.TENANT_ID, t2.MAX_CPU, t2.MIN_CPU,
  CONCAT(TRUNCATE(t2.MEMORY_SIZE/1024/1024/1024,2),'G') MEM_SIZE,
  CONCAT(TRUNCATE(t2.LOG_DISK_SIZE/1024/1024/1024,2),'G') LOG_DISK_SIZE
FROM oceanbase.DBA_OB_RESOURCE_POOLS t1
JOIN oceanbase.DBA_OB_UNIT_CONFIGS t2 ON t1.UNIT_CONFIG_ID = t2.UNIT_CONFIG_ID;
