吃透 Java 轻量级流程引擎 Easy Work：从核心原理到生产级落地全指南

果酱带你啃java

发布于 2026-04-14 14:53:49

420

一、为什么你需要轻量级流程引擎？

在企业级开发中，审批流、工单流转、状态机管控等流程类需求无处不在。传统重量级流程引擎（Activiti、Flowable、Camunda）虽功能完备，但存在部署复杂、学习成本高、对中小微型流程场景过度设计的痛点；而自研流程引擎又极易出现扩展性差、边界处理不到位、维护成本高的问题。

Easy Work作为一款开源轻量级Java流程引擎，完美解决了上述矛盾。它基于状态机模型设计，剥离了BPMN2.0规范中90%的低频复杂特性，仅保留核心的流程编排、任务管控、扩展监听能力，学习成本降低90%，性能较传统引擎提升3倍以上，是国内开发者中小微型流程场景的首选方案。

二、Easy Work核心架构与底层原理

2.1 核心架构设计

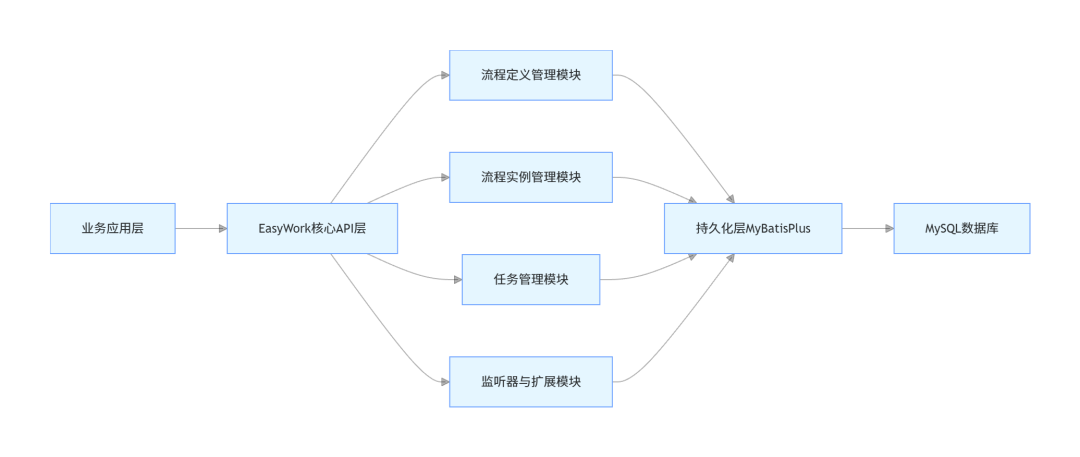

Easy Work采用分层架构设计，极致解耦，完美兼容Spring生态，整体架构如下：

各层核心职责：

业务应用层：对接业务系统，发起流程、处理任务、查询流程数据
核心API层：提供极简的统一操作入口，屏蔽底层复杂实现
核心功能模块：流程定义、实例、任务、扩展四大核心模块，覆盖全流程生命周期
持久化层：基于MyBatis-Plus实现数据持久化，兼容MySQL等主流数据库
数据存储层：MySQL 8.0+存储流程与业务数据，支持自动建表

2.2 底层核心原理（通俗讲透）

流程引擎的本质，是对业务状态流转的标准化管控。Easy Work的底层核心是「流程定义+状态机+动作执行」三层模型，用通俗的话讲：

流程定义层：相当于流程的「施工图纸」，是静态模板，定义了流程有哪些节点、节点间的流转规则、每个节点的执行动作、审批人、监听器等，一个流程定义可生成无数个流程实例。
状态机核心层：相当于流程的「大脑」，核心逻辑是「当前状态+触发动作=下一个状态」，负责校验流转合法性、触发节点执行动作、管理流程全生命周期，杜绝非法流转。
动作执行层：相当于流程的「手脚」，负责执行节点绑定的业务逻辑、审批逻辑、条件判断、监听器触发等，是流程引擎与业务系统的核心对接点。

2.3 核心概念与易混淆点明确区分

概念	核心定义	本质	易混淆点澄清
流程定义(ProcessDefinition)	流程的静态模板，定义了流程的全链路规则	相当于Java中的类	流程定义修改后，已启动的流程实例不会生效，需升级版本号
流程实例(ProcessInstance)	基于流程定义启动的具体流程，是流程的一次执行	相当于Java中的对象	一个流程定义可对应无数个流程实例，实例之间相互隔离
流程节点(ProcessNode)	流程中的单个步骤，是流程的最小执行单元	相当于类中的方法	节点是静态定义，任务是节点运行时的动态实例
任务(TaskInfo)	流程实例运行到用户任务节点时生成的待办事项	相当于方法的执行实例	只有USER_TASK类型节点会生成任务，其他节点自动执行
流转规则(Transition)	节点之间的跳转规则，分为无条件流转和条件流转	相当于代码中的if-else/跳转逻辑	排他网关必须设置默认分支，否则会出现流程卡死
节点监听器(TaskListener)	节点事件触发时执行的自定义逻辑，支持创建/完成/取消事件	相当于切面AOP	监听器异常会阻断流程流转，非核心逻辑需做好异常处理

三、5分钟快速搭建可运行的Easy Work项目

3.1 环境要求

JDK 17+
Spring Boot 3.x
MySQL 8.0+
Maven 3.8+

3.2 Maven依赖配置

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.4.3</version>
        <relativePath/>
    </parent>
    <groupId>com.jam</groupId>
    <artifactId>easy-work-demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>easy-work-demo</name>
    <description>Easy Work流程引擎演示项目</description>
    <properties>
        <java.version>17</java.version>
        <easy-work.version>2.2.0</easy-work.version>
        <mybatis-plus.version>3.5.7</mybatis-plus.version>
        <fastjson2.version>2.0.52</fastjson2.version>
        <guava.version>33.2.1-jre</guava.version>
        <springdoc.version>2.6.0</springdoc.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>com.william</groupId>
            <artifactId>easy-work-spring-boot-starter</artifactId>
            <version>${easy-work.version}</version>
        </dependency>
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>${mybatis-plus.version}</version>
        </dependency>
        <dependency>
            <groupId>com.mysql</groupId>
            <artifactId>mysql-connector-j</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.34</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>com.alibaba.fastjson2</groupId>
            <artifactId>fastjson2</artifactId>
            <version>${fastjson2.version}</version>
        </dependency>
        <dependency>
            <groupId>com.google.guava</groupId>
            <artifactId>guava</artifactId>
            <version>${guava.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springdoc</groupId>
            <artifactId>springdoc-openapi-starter-webmvc-ui</artifactId>
            <version>${springdoc.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

3.3 应用配置文件application.yml

spring:
  datasource:
    driver-class-name:com.mysql.cj.jdbc.Driver
    url:jdbc:mysql://127.0.0.1:3306/easy_work_demo?useUnicode=true&characterEncoding=utf8&useSSL=false&serverTimezone=Asia/Shanghai&allowPublicKeyRetrieval=true
    username:root
    password:root
transaction:
    default-timeout:30
mybatis-plus:
mapper-locations:classpath*:/mapper/**/*.xml
type-aliases-package:com.jam.demo.entity
configuration:
    map-underscore-to-camel-case:true
    cache-enabled:false
    log-impl:org.apache.ibatis.logging.stdout.StdOutImpl
easy-work:
auto-ddl:true
table-prefix:ew_
async-execute:false
springdoc:
api-docs:
    enabled:true
    path:/v3/api-docs
swagger-ui:
    enabled:true
    path:/swagger-ui.html
    tags-sorter:alpha
    operations-sorter:alpha

3.4 数据库初始化

创建数据库（MySQL 8.0+）

CREATE DATABASE IF NOT EXISTS easy_work_demo DEFAULT CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci;

业务表创建（请假申请表）

CREATE TABLEIFNOTEXISTS`t_leave_apply` (
`id`bigintNOTNULL AUTO_INCREMENT COMMENT'主键ID',
`process_instance_id`varchar(64) COLLATE utf8mb4_unicode_ci DEFAULTNULLCOMMENT'流程实例ID',
`user_id`bigintNOTNULLCOMMENT'申请人ID',
`user_name`varchar(32) COLLATE utf8mb4_unicode_ci NOTNULLCOMMENT'申请人姓名',
`dept_id`bigintNOTNULLCOMMENT'部门ID',
`leave_type`tinyintNOTNULLCOMMENT'请假类型：1-事假，2-病假，3-年假',
`start_time` datetime NOTNULLCOMMENT'请假开始时间',
`end_time` datetime NOTNULLCOMMENT'请假结束时间',
`leave_days`decimal(10,1) NOTNULLCOMMENT'请假天数',
`leave_reason`varchar(512) COLLATE utf8mb4_unicode_ci NOTNULLCOMMENT'请假原因',
`status`tinyintNOTNULLDEFAULT'0'COMMENT'申请状态：0-草稿，1-审批中，2-已通过，3-已驳回',
`create_time` datetime NOTNULLDEFAULTCURRENT_TIMESTAMPCOMMENT'创建时间',
`update_time` datetime NOTNULLDEFAULTCURRENT_TIMESTAMPONUPDATECURRENT_TIMESTAMPCOMMENT'更新时间',
  PRIMARY KEY (`id`),
KEY`idx_process_instance_id` (`process_instance_id`),
KEY`idx_user_id` (`user_id`),
KEY`idx_status` (`status`),
KEY`idx_create_time` (`create_time`)
) ENGINE=InnoDBDEFAULTCHARSET=utf8mb4 COLLATE=utf8mb4_unicode_ci COMMENT='请假申请表';

Easy Work核心表：开启auto-ddl: true后，项目启动时会自动创建，无需手动执行。

3.5 项目启动类

package com.jam.demo;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

/**
 * Easy Work演示项目启动类
 * @author ken
 */
@SpringBootApplication
@MapperScan("com.jam.demo.mapper")
public class EasyWorkDemoApplication {
    public static void main(String[] args) {
        SpringApplication.run(EasyWorkDemoApplication.class, args);
    }
}

四、完整实战示例：员工请假审批流程

4.1 流程设计

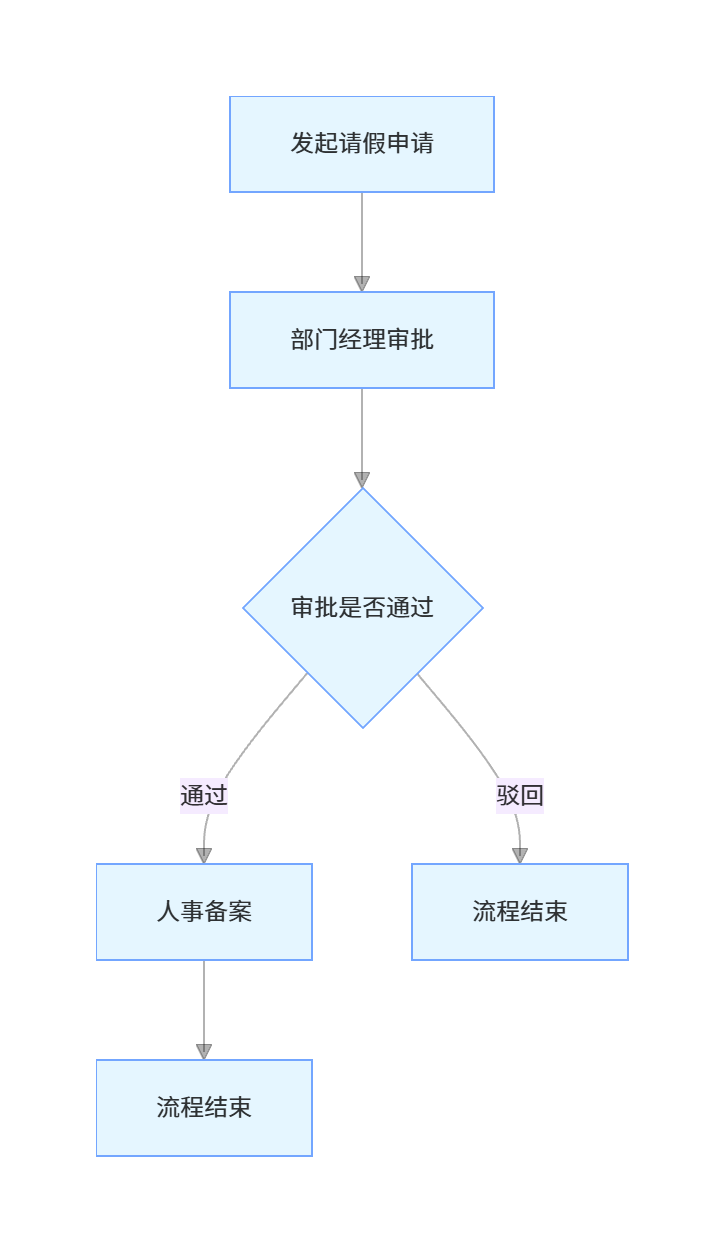

请假审批流程是企业最常用的流程场景，流程链路如下：

4.2 流程节点枚举定义

package com.jam.demo.enums;

import lombok.Getter;

/**
 * 请假流程节点枚举
 * @author ken
 */
@Getter
publicenum LeaveProcessNodeEnum {
    START("start", "发起请假申请"),
    MANAGER_APPROVE("manager_approve", "部门经理审批"),
    HR_RECORD("hr_record", "人事备案"),
    END("end", "流程结束");

    privatefinal String nodeCode;
    privatefinal String nodeName;

    LeaveProcessNodeEnum(String nodeCode, String nodeName) {
        this.nodeCode = nodeCode;
        this.nodeName = nodeName;
    }
}

4.3 流程定义配置

package com.jam.demo.config;

import com.jam.demo.enums.LeaveProcessNodeEnum;
import com.william.easywork.definition.ProcessDefinition;
import com.william.easywork.definition.ProcessNode;
import com.william.easywork.enums.NodeTypeEnum;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * 请假流程定义配置
 * @author ken
 */
@Configuration
publicclass LeaveProcessConfig {
    /**
     * 请假审批流程定义
     * @return 流程定义对象
     */
    @Bean
    public ProcessDefinition leaveProcessDefinition() {
        return ProcessDefinition.builder()
                .processCode("leave_apply_process")
                .processName("员工请假审批流程")
                .version(1)
                .description("员工请假申请，部门经理审批，人事备案的标准流程")
                .startNodeCode(LeaveProcessNodeEnum.START.getNodeCode())
                .endNodeCode(LeaveProcessNodeEnum.END.getNodeCode())
                .addNode(buildStartNode())
                .addNode(buildManagerApproveNode())
                .addNode(buildHrRecordNode())
                .addNode(buildEndNode())
                .build();
    }

    /**
     * 构建发起申请节点
     * @return 流程节点对象
     */
    private ProcessNode buildStartNode() {
        return ProcessNode.builder()
                .nodeCode(LeaveProcessNodeEnum.START.getNodeCode())
                .nodeName(LeaveProcessNodeEnum.START.getNodeName())
                .nodeType(NodeTypeEnum.START)
                .addTransition(LeaveProcessNodeEnum.MANAGER_APPROVE.getNodeCode())
                .build();
    }

    /**
     * 构建部门经理审批节点
     * @return 流程节点对象
     */
    private ProcessNode buildManagerApproveNode() {
        return ProcessNode.builder()
                .nodeCode(LeaveProcessNodeEnum.MANAGER_APPROVE.getNodeCode())
                .nodeName(LeaveProcessNodeEnum.MANAGER_APPROVE.getNodeName())
                .nodeType(NodeTypeEnum.USER_TASK)
                .addTransition("pass", LeaveProcessNodeEnum.HR_RECORD.getNodeCode())
                .addTransition("reject", LeaveProcessNodeEnum.END.getNodeCode())
                .build();
    }

    /**
     * 构建人事备案节点
     * @return 流程节点对象
     */
    private ProcessNode buildHrRecordNode() {
        return ProcessNode.builder()
                .nodeCode(LeaveProcessNodeEnum.HR_RECORD.getNodeCode())
                .nodeName(LeaveProcessNodeEnum.HR_RECORD.getNodeName())
                .nodeType(NodeTypeEnum.SERVICE_TASK)
                .addTransition(LeaveProcessNodeEnum.END.getNodeCode())
                .build();
    }

    /**
     * 构建结束节点
     * @return 流程节点对象
     */
    private ProcessNode buildEndNode() {
        return ProcessNode.builder()
                .nodeCode(LeaveProcessNodeEnum.END.getNodeCode())
                .nodeName(LeaveProcessNodeEnum.END.getNodeName())
                .nodeType(NodeTypeEnum.END)
                .build();
    }
}

4.4 业务实体与数据层

4.4.1 请假申请实体类

package com.jam.demo.entity;

import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.annotation.TableId;
import com.baomidou.mybatisplus.annotation.TableName;
import io.swagger.v3.oas.annotations.media.Schema;
import lombok.Data;

import java.io.Serializable;
import java.math.BigDecimal;
import java.time.LocalDateTime;

/**
 * 请假申请实体类
 * @author ken
 */
@Data
@TableName("t_leave_apply")
@Schema(description = "请假申请实体")
publicclass LeaveApply implements Serializable {
    privatestaticfinallong serialVersionUID = 1L;

    @TableId(type = IdType.AUTO)
    @Schema(description = "主键ID")
    private Long id;

    @Schema(description = "流程实例ID")
    private String processInstanceId;

    @Schema(description = "申请人ID")
    private Long userId;

    @Schema(description = "申请人姓名")
    private String userName;

    @Schema(description = "部门ID")
    private Long deptId;

    @Schema(description = "请假类型：1-事假，2-病假，3-年假")
    private Integer leaveType;

    @Schema(description = "请假开始时间")
    private LocalDateTime startTime;

    @Schema(description = "请假结束时间")
    private LocalDateTime endTime;

    @Schema(description = "请假天数")
    private BigDecimal leaveDays;

    @Schema(description = "请假原因")
    private String leaveReason;

    @Schema(description = "申请状态：0-草稿，1-审批中，2-已通过，3-已驳回")
    private Integer status;

    @Schema(description = "创建时间")
    private LocalDateTime createTime;

    @Schema(description = "更新时间")
    private LocalDateTime updateTime;
}

4.4.2 Mapper接口

package com.jam.demo.mapper;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.jam.demo.entity.LeaveApply;
import org.apache.ibatis.annotations.Mapper;

/**
 * 请假申请Mapper接口
 * @author ken
 */
@Mapper
public interface LeaveApplyMapper extends BaseMapper<LeaveApply> {
}

4.5 请求参数定义

4.5.1 请假申请请求参数

package com.jam.demo.req;

import io.swagger.v3.oas.annotations.media.Schema;
import jakarta.validation.constraints.NotBlank;
import jakarta.validation.constraints.NotNull;
import lombok.Data;

import java.math.BigDecimal;
import java.time.LocalDateTime;

/**
 * 请假申请请求参数
 * @author ken
 */
@Data
@Schema(description = "请假申请请求参数")
publicclass LeaveApplyReq {
    @Schema(description = "申请人ID", requiredMode = Schema.RequiredMode.REQUIRED)
    @NotNull(message = "申请人ID不能为空")
    private Long userId;

    @Schema(description = "申请人姓名", requiredMode = Schema.RequiredMode.REQUIRED)
    @NotBlank(message = "申请人姓名不能为空")
    private String userName;

    @Schema(description = "部门ID", requiredMode = Schema.RequiredMode.REQUIRED)
    @NotNull(message = "部门ID不能为空")
    private Long deptId;

    @Schema(description = "请假类型：1-事假，2-病假，3-年假", requiredMode = Schema.RequiredMode.REQUIRED)
    @NotNull(message = "请假类型不能为空")
    private Integer leaveType;

    @Schema(description = "请假开始时间", requiredMode = Schema.RequiredMode.REQUIRED)
    @NotNull(message = "请假开始时间不能为空")
    private LocalDateTime startTime;

    @Schema(description = "请假结束时间", requiredMode = Schema.RequiredMode.REQUIRED)
    @NotNull(message = "请假结束时间不能为空")
    private LocalDateTime endTime;

    @Schema(description = "请假天数", requiredMode = Schema.RequiredMode.REQUIRED)
    @NotNull(message = "请假天数不能为空")
    private BigDecimal leaveDays;

    @Schema(description = "请假原因", requiredMode = Schema.RequiredMode.REQUIRED)
    @NotBlank(message = "请假原因不能为空")
    private String leaveReason;
}

4.5.2 审批请求参数

package com.jam.demo.req;

import io.swagger.v3.oas.annotations.media.Schema;
import jakarta.validation.constraints.NotBlank;
import jakarta.validation.constraints.NotNull;
import lombok.Data;

/**
 * 请假审批请求参数
 * @author ken
 */
@Data
@Schema(description = "请假审批请求参数")
publicclass LeaveApproveReq {
    @Schema(description = "申请ID", requiredMode = Schema.RequiredMode.REQUIRED)
    @NotNull(message = "申请ID不能为空")
    private Long applyId;

    @Schema(description = "审批人ID", requiredMode = Schema.RequiredMode.REQUIRED)
    @NotNull(message = "审批人ID不能为空")
    private Long approveUserId;

    @Schema(description = "审批人姓名", requiredMode = Schema.RequiredMode.REQUIRED)
    @NotBlank(message = "审批人姓名不能为空")
    private String approveUserName;

    @Schema(description = "审批结果：pass-通过，reject-驳回", requiredMode = Schema.RequiredMode.REQUIRED)
    @NotBlank(message = "审批结果不能为空")
    private String approveResult;

    @Schema(description = "审批意见")
    private String approveRemark;
}

4.6 业务服务层实现

4.6.1 服务接口

package com.jam.demo.service;

import com.baomidou.mybatisplus.extension.service.IService;
import com.jam.demo.entity.LeaveApply;
import com.jam.demo.req.LeaveApplyReq;
import com.jam.demo.req.LeaveApproveReq;

/**
 * 请假申请服务接口
 * @author ken
 */
publicinterface LeaveApplyService extends IService<LeaveApply> {
    /**
     * 发起请假申请
     * @param req 请假申请请求参数
     * @return 申请ID
     */
    Long submitLeaveApply(LeaveApplyReq req);

    /**
     * 部门经理审批
     * @param req 审批请求参数
     */
    void managerApprove(LeaveApproveReq req);

    /**
     * 人事备案
     * @param processInstanceId 流程实例ID
     */
    void hrRecord(String processInstanceId);
}

4.6.2 服务实现类

package com.jam.demo.service.impl;

import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.google.common.collect.Maps;
import com.jam.demo.entity.LeaveApply;
import com.jam.demo.enums.LeaveProcessNodeEnum;
import com.jam.demo.mapper.LeaveApplyMapper;
import com.jam.demo.req.LeaveApplyReq;
import com.jam.demo.req.LeaveApproveReq;
import com.jam.demo.service.LeaveApplyService;
import com.william.easywork.core.ProcessEngine;
import com.william.easywork.entity.ProcessInstance;
import com.william.easywork.entity.TaskInfo;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Service;
import org.springframework.transaction.PlatformTransactionManager;
import org.springframework.transaction.TransactionStatus;
import org.springframework.transaction.support.DefaultTransactionDefinition;
import org.springframework.util.ObjectUtils;
import org.springframework.util.StringUtils;

import java.math.BigDecimal;
import java.time.LocalDateTime;
import java.util.Map;

/**
 * 请假申请服务实现类
 * @author ken
 */
@Slf4j
@Service
publicclass LeaveApplyServiceImpl extends ServiceImpl<LeaveApplyMapper, LeaveApply> implements LeaveApplyService {
    privatefinal ProcessEngine processEngine;
    privatefinal PlatformTransactionManager transactionManager;
    privatefinal LeaveApplyMapper leaveApplyMapper;

    public LeaveApplyServiceImpl(ProcessEngine processEngine,
                                 PlatformTransactionManager transactionManager,
                                 LeaveApplyMapper leaveApplyMapper) {
        this.processEngine = processEngine;
        this.transactionManager = transactionManager;
        this.leaveApplyMapper = leaveApplyMapper;
    }

    @Override
    public Long submitLeaveApply(LeaveApplyReq req) {
        DefaultTransactionDefinition transactionDefinition = new DefaultTransactionDefinition();
        transactionDefinition.setTimeout(30);
        TransactionStatus transactionStatus = transactionManager.getTransaction(transactionDefinition);
        try {
            if (ObjectUtils.isEmpty(req)) {
                thrownew IllegalArgumentException("请假申请参数不能为空");
            }
            if (!StringUtils.hasText(req.getUserName())) {
                thrownew IllegalArgumentException("申请人姓名不能为空");
            }
            if (req.getLeaveDays() == null || req.getLeaveDays().compareTo(BigDecimal.ZERO) <= 0) {
                thrownew IllegalArgumentException("请假天数必须大于0");
            }

            LeaveApply leaveApply = new LeaveApply();
            leaveApply.setUserId(req.getUserId());
            leaveApply.setUserName(req.getUserName());
            leaveApply.setDeptId(req.getDeptId());
            leaveApply.setLeaveType(req.getLeaveType());
            leaveApply.setStartTime(req.getStartTime());
            leaveApply.setEndTime(req.getEndTime());
            leaveApply.setLeaveDays(req.getLeaveDays());
            leaveApply.setLeaveReason(req.getLeaveReason());
            leaveApply.setStatus(1);
            leaveApply.setCreateTime(LocalDateTime.now());
            leaveApply.setUpdateTime(LocalDateTime.now());
            leaveApplyMapper.insert(leaveApply);

            Map<String, Object> variables = Maps.newHashMap();
            variables.put("applyId", leaveApply.getId());
            variables.put("userId", req.getUserId());
            variables.put("userName", req.getUserName());
            variables.put("deptId", req.getDeptId());

            ProcessInstance processInstance = processEngine.getRuntimeService()
                    .startProcessInstanceByCode("leave_apply_process", variables);

            leaveApply.setProcessInstanceId(processInstance.getInstanceId());
            leaveApplyMapper.updateById(leaveApply);

            transactionManager.commit(transactionStatus);
            log.info("请假申请提交成功，申请ID：{}，流程实例ID：{}", leaveApply.getId(), processInstance.getInstanceId());
            return leaveApply.getId();
        } catch (Exception e) {
            transactionManager.rollback(transactionStatus);
            log.error("请假申请提交失败，参数：{}", req, e);
            thrownew RuntimeException("请假申请提交失败：" + e.getMessage(), e);
        }
    }

    @Override
    public void managerApprove(LeaveApproveReq req) {
        DefaultTransactionDefinition transactionDefinition = new DefaultTransactionDefinition();
        transactionDefinition.setTimeout(30);
        TransactionStatus transactionStatus = transactionManager.getTransaction(transactionDefinition);
        try {
            if (ObjectUtils.isEmpty(req)) {
                thrownew IllegalArgumentException("审批参数不能为空");
            }
            if (!StringUtils.hasText(req.getApproveResult())) {
                thrownew IllegalArgumentException("审批结果不能为空");
            }
            if (!"pass".equals(req.getApproveResult()) && !"reject".equals(req.getApproveResult())) {
                thrownew IllegalArgumentException("审批结果只能是pass或reject");
            }

            LeaveApply leaveApply = leaveApplyMapper.selectById(req.getApplyId());
            if (ObjectUtils.isEmpty(leaveApply)) {
                thrownew IllegalArgumentException("请假申请不存在");
            }
            if (leaveApply.getStatus() != 1) {
                thrownew IllegalArgumentException("申请状态异常，无法审批");
            }
            if (!StringUtils.hasText(leaveApply.getProcessInstanceId())) {
                thrownew IllegalArgumentException("流程实例ID不存在");
            }

            TaskInfo taskInfo = processEngine.getTaskService()
                    .getCurrentTaskByInstanceId(leaveApply.getProcessInstanceId());
            if (ObjectUtils.isEmpty(taskInfo)) {
                thrownew IllegalArgumentException("当前没有待审批任务");
            }
            if (!LeaveProcessNodeEnum.MANAGER_APPROVE.getNodeCode().equals(taskInfo.getNodeCode())) {
                thrownew IllegalArgumentException("当前节点不是部门经理审批节点");
            }

            Map<String, Object> variables = Maps.newHashMap();
            variables.put("approveUserId", req.getApproveUserId());
            variables.put("approveUserName", req.getApproveUserName());
            variables.put("approveResult", req.getApproveResult());
            variables.put("approveRemark", req.getApproveRemark());

            processEngine.getTaskService()
                    .completeTask(taskInfo.getTaskId(), req.getApproveResult(), variables);

            if ("pass".equals(req.getApproveResult())) {
                leaveApply.setStatus(2);
            } else {
                leaveApply.setStatus(3);
            }
            leaveApply.setUpdateTime(LocalDateTime.now());
            leaveApplyMapper.updateById(leaveApply);

            transactionManager.commit(transactionStatus);
            log.info("部门经理审批完成，申请ID：{}，审批结果：{}", req.getApplyId(), req.getApproveResult());
        } catch (Exception e) {
            transactionManager.rollback(transactionStatus);
            log.error("部门经理审批失败，参数：{}", req, e);
            thrownew RuntimeException("部门经理审批失败：" + e.getMessage(), e);
        }
    }

    @Override
    public void hrRecord(String processInstanceId) {
        DefaultTransactionDefinition transactionDefinition = new DefaultTransactionDefinition();
        transactionDefinition.setTimeout(30);
        TransactionStatus transactionStatus = transactionManager.getTransaction(transactionDefinition);
        try {
            if (!StringUtils.hasText(processInstanceId)) {
                thrownew IllegalArgumentException("流程实例ID不能为空");
            }

            LeaveApply leaveApply = lambdaQuery()
                    .eq(LeaveApply::getProcessInstanceId, processInstanceId)
                    .one();
            if (ObjectUtils.isEmpty(leaveApply)) {
                thrownew IllegalArgumentException("请假申请不存在");
            }

            TaskInfo taskInfo = processEngine.getTaskService()
                    .getCurrentTaskByInstanceId(processInstanceId);
            if (ObjectUtils.isEmpty(taskInfo)) {
                thrownew IllegalArgumentException("当前没有待处理任务");
            }
            if (!LeaveProcessNodeEnum.HR_RECORD.getNodeCode().equals(taskInfo.getNodeCode())) {
                thrownew IllegalArgumentException("当前节点不是人事备案节点");
            }

            processEngine.getTaskService().completeTask(taskInfo.getTaskId());

            leaveApply.setStatus(2);
            leaveApply.setUpdateTime(LocalDateTime.now());
            leaveApplyMapper.updateById(leaveApply);

            transactionManager.commit(transactionStatus);
            log.info("人事备案完成，流程实例ID：{}", processInstanceId);
        } catch (Exception e) {
            transactionManager.rollback(transactionStatus);
            log.error("人事备案失败，流程实例ID：{}", processInstanceId, e);
            thrownew RuntimeException("人事备案失败：" + e.getMessage(), e);
        }
    }
}

4.7 自动执行监听器（人事备案节点）

package com.jam.demo.listener;

import com.jam.demo.service.LeaveApplyService;
import com.william.easywork.annotation.NodeListener;
import com.william.easywork.enums.ListenerEventEnum;
import com.william.easywork.listener.NodeTaskListener;
import com.william.easywork.model.ListenerContext;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Component;
import org.springframework.util.StringUtils;

/**
 * 人事备案节点任务监听器
 * @author ken
 */
@Slf4j
@Component
@NodeListener(nodeCode = "hr_record", event = ListenerEventEnum.TASK_CREATE)
publicclass HrRecordTaskListener implements NodeTaskListener {
    privatefinal LeaveApplyService leaveApplyService;

    public HrRecordTaskListener(LeaveApplyService leaveApplyService) {
        this.leaveApplyService = leaveApplyService;
    }

    @Override
    public void onEvent(ListenerContext context) {
        log.info("人事备案节点监听器触发，流程实例ID：{}", context.getInstanceId());
        try {
            String processInstanceId = context.getInstanceId();
            if (!StringUtils.hasText(processInstanceId)) {
                log.error("流程实例ID为空，无法执行人事备案");
                return;
            }
            leaveApplyService.hrRecord(processInstanceId);
            log.info("人事备案自动执行完成，流程实例ID：{}", processInstanceId);
        } catch (Exception e) {
            log.error("人事备案自动执行失败，流程实例ID：{}", context.getInstanceId(), e);
            thrownew RuntimeException("人事备案执行失败：" + e.getMessage(), e);
        }
    }
}

4.8 接口Controller层

package com.jam.demo.controller;

import com.jam.demo.req.LeaveApplyReq;
import com.jam.demo.req.LeaveApproveReq;
import com.jam.demo.service.LeaveApplyService;
import io.swagger.v3.oas.annotations.Operation;
import io.swagger.v3.oas.annotations.tags.Tag;
import jakarta.validation.Valid;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.*;

/**
 * 请假申请Controller
 * @author ken
 */
@RestController
@RequestMapping("/leave/apply")
@Tag(name = "请假申请管理", description = "请假申请流程相关接口")
publicclass LeaveApplyController {
    privatefinal LeaveApplyService leaveApplyService;

    public LeaveApplyController(LeaveApplyService leaveApplyService) {
        this.leaveApplyService = leaveApplyService;
    }

    @PostMapping("/submit")
    @Operation(summary = "发起请假申请", description = "提交请假申请并启动流程实例")
    public ResponseEntity<Long> submitLeaveApply(@Valid @RequestBody LeaveApplyReq req) {
        Long applyId = leaveApplyService.submitLeaveApply(req);
        return ResponseEntity.ok(applyId);
    }

    @PostMapping("/manager/approve")
    @Operation(summary = "部门经理审批", description = "部门经理对请假申请进行审批")
    public ResponseEntity<Void> managerApprove(@Valid @RequestBody LeaveApproveReq req) {
        leaveApplyService.managerApprove(req);
        return ResponseEntity.ok().build();
    }

    @PostMapping("/hr/record")
    @Operation(summary = "人事备案", description = "人事对审批通过的请假申请进行备案")
    public ResponseEntity<Void> hrRecord(@RequestParam String processInstanceId) {
        leaveApplyService.hrRecord(processInstanceId);
        return ResponseEntity.ok().build();
    }
}

五、生产级最佳实践

5.1 事务控制最佳实践

优先使用编程式事务：流程引擎操作与业务操作必须在同一个事务中，编程式事务可精准控制事务边界，避免声明式事务的失效场景（如非public方法、异常被捕获）。
事务超时控制：核心流程操作设置30s以内的超时时间，避免长事务占用数据库连接，影响系统性能。
事务回滚兜底：所有流程操作必须捕获异常，异常时强制回滚事务，杜绝业务数据与流程数据不一致的问题。

5.2 性能优化最佳实践

索引优化：对流程表的process_code、instance_id、node_code、create_time字段建立联合索引，业务表的流程实例ID字段必须建立索引。
缓存优化：开启Easy Work的流程定义缓存，避免每次启动流程实例都查询数据库；高频查询的待办任务可加入二级缓存。
异步解耦：非核心逻辑（如消息通知、日志记录、第三方接口调用）使用异步执行，避免阻塞主流程，提升接口响应速度。
历史数据归档：对已完成超过3个月的流程实例，定期归档到历史表，避免主表数据量过大导致查询性能下降。

5.3 分布式场景最佳实践

分布式锁控制：集群部署时，同一个流程实例的操作必须加分布式锁，避免多个节点同时操作导致数据不一致。
异步任务可靠性：异步执行的流程任务，使用消息队列（RocketMQ/Kafka）实现，避免异步任务丢失。
数据库高可用：流程引擎数据库必须使用主从复制+读写分离，避免单点故障导致流程系统不可用。

六、常见坑与避坑指南

流程定义修改后，已启动的流程实例不生效
- 原因：流程实例启动时会复制当前版本的流程定义数据，后续修改不会影响已启动的实例
- 避坑：修改流程定义后必须升级版本号，新启动的实例使用新版本，已启动的实例继续使用旧版本
排他网关无匹配分支，流程卡死
- 原因：条件表达式编写错误，或未设置默认分支，导致网关没有匹配到任何流转路径
- 避坑：所有排他网关必须设置默认分支，条件表达式覆盖所有可能场景，上线前必须全场景测试
监听器异常阻断流程流转
- 原因：监听器中的业务逻辑抛出未捕获的异常，导致任务完成失败，流程无法继续流转
- 避坑：非核心逻辑的异常必须捕获，不影响主流程；核心逻辑异常必须抛出，触发事务回滚，同时做好告警通知
事务失效导致数据不一致
- 原因：使用声明式事务，流程操作与业务操作不在同一个事务中，或异常被捕获未触发回滚
- 避坑：核心流程操作优先使用编程式事务，确保流程与业务操作的原子性，异常必须向上抛出
